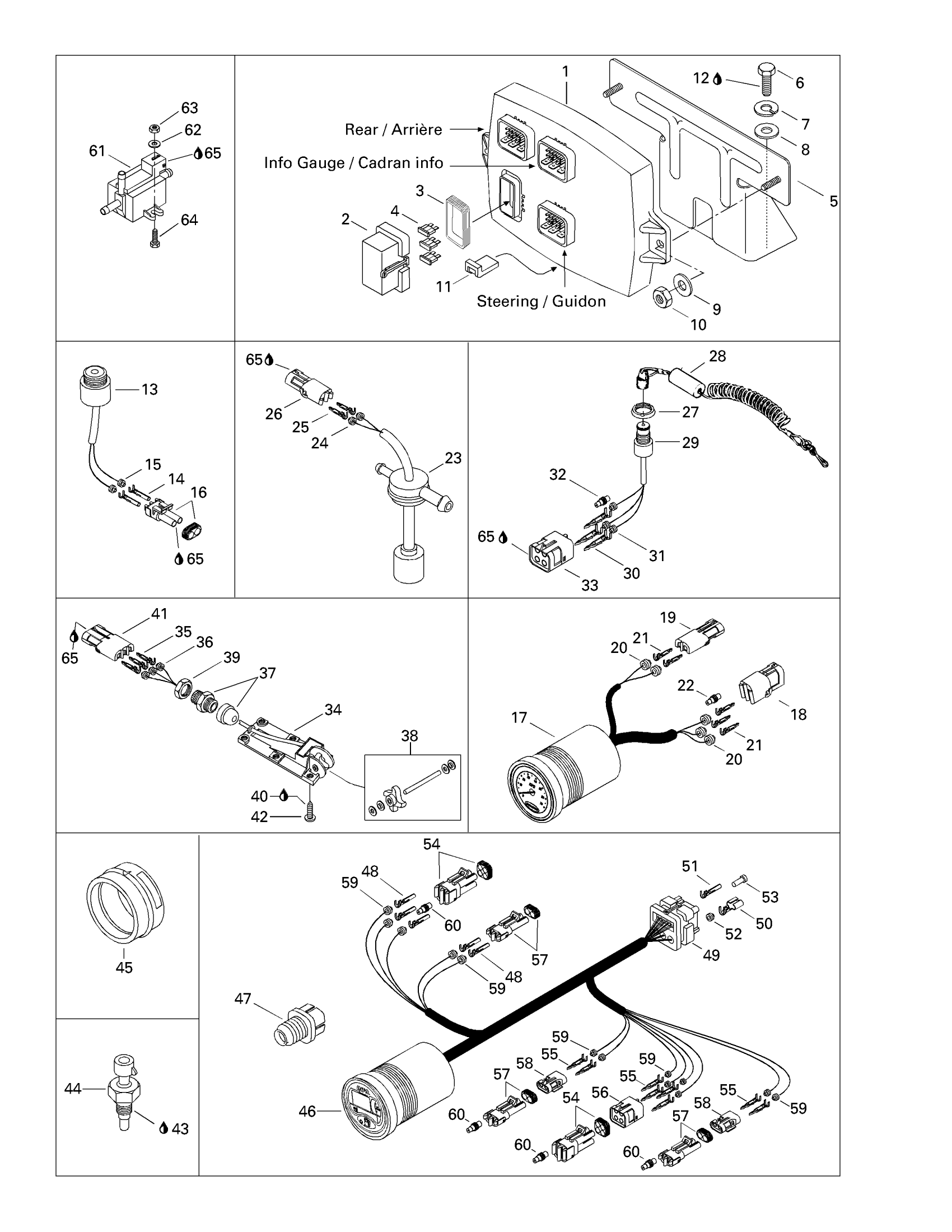

Sea-doo GSX Limited 5625, 1998 Electronic Module And Electrical Accessories Diagram

#

Description
Price

1

Electronic Module Ass'y | Includes 1 - 4.

278000926

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

3

Cover Seal

278001070

Unavailable

4

Fuse, 15 Amperes

278000343

$3.28

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

Fuse, 5 Amperes | CE

278000344

$3.28

5

Box Support Ass'y

278001131

Unavailable

6

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

7

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

8

Flat Washer 5 mm, Stainless

234052600

$0.77

9

Stainless Flat Washer M6

234061600

$0.33

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

12

Loctite 271, 10 ml

293800005

$26.99

13

Buzzer Ass'y | Includes 11 - 14.

278000978

Unavailable

14

Female Terminal

278000223

$3.19

15

Wire Seal

278000218

$4.39

16

Male Connector, 2 Circuits

278000220

$15.49

17

Speedometer | Includes 17 - 22.

287000947

Unavailable

18

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

19

Female Housing, 2 Circuits

278000217

$9.59

20

Wire Seal

278001065

$7.69

21

Male Terminal | XT Models

278000222

$3.19

22

Wire Seal

278000216

$3.19

23

Oil Level Sensor Ass'y | Includes 21 - 24.

278001187

Unavailable

24

Wire Seal

278000218

$4.39

25

Male Terminal | XT Models

278000222

$3.19

26

Female Housing, 2 Circuits

278000217

$9.59

27

Safety Nut (DESS Switch)

278002963

$3.28

28

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

29

Safety Switch | Includes 15 - 19.

278000977

Unavailable

30

Male Terminal | XT Models

278000222

$3.19

31

Wire Seal

278000218

$4.39

32

Wire Seal

278000216

$3.19

33

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

34

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

35

Male Terminal | XT Models

278000222

$3.19

36

Wire Seal

278000218

$4.39

37

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

38

Paddle Wheel Kit

295500108

Unavailable

39

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable

40

Loctite 243, 10 ml

293800060

$21.49

41

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

42

SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership

216351060

Unavailable

43

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

44

Temperature Sensor

278002895

$39.99

45

Gauge Support

293720047

Unavailable

46

LCD Info Gauge | Includes 46 - 60.

278001055

Unavailable

47

GROMMET - Call your local BRP dealership

293720042

Unavailable

48

Female Terminal

278000223

$3.19

49

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

50

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

51

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

52

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

53

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

54

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

55

Male Terminal | XT Models

278000222

$3.19

56

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

57

Male Connector, 2 Circuits

278000220

$15.49

58

Female Housing, 2 Circuits

278000217

$9.59

59

Wire Seal

278001065

$7.69

60

Wire Seal

278000216

$3.19

61

Solenoid Valve

270600005

$116.49

62

Flat Washer M5, Stainless

234051600

$0.77

63

Hex. Elastic Nut M5 | X

232551600

$1.15

64

SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership

215051660

Unavailable

65

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
