Description

Price

1

Seat Ass'y (Viper Red) | Includes 1 - 21.

269000505

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Seat Strap

269000414

Unavailable

3

Socket Screw Button Head M6 X 10 | DS 650

250000436

$2.11

4

Seat Cover with Foam

269000413

Unavailable

5

Seat Base

269000506

Unavailable

6

Was 293200017 Neoprene Seal

219704365

$149.99

7

Hex. Screw M6 X 16

207161660

$1.59

8

RH Corner Seat

269000411

Unavailable

LH Corner Seat

269000412

Unavailable

9

Base Keeper

291000174

$19.99

10

Was 293200017 Neoprene Seal

219704365

$149.99

11

Hex. Screw M6 X 35

207163560

$1.49

12

Stainless Flat Washer M6

234061600

$0.33

13

Latch Ass'y

269700109

$24.99

14

Latch Ass'y

269700109

$24.99

15

Latch Ass'y

269700109

$24.99

16

Latch Spring

269700017

$9.19

17

Lock Washer Helical M6

234161601

$1.15

18

Threaded Insert

211100035

Unavailable

19

Loctite 243, 10 ml

293800060

$21.49

20

NUT-T-SHAPE - Call your local BRP dealership

211100038

Unavailable

21

Staple

293730005

Unavailable

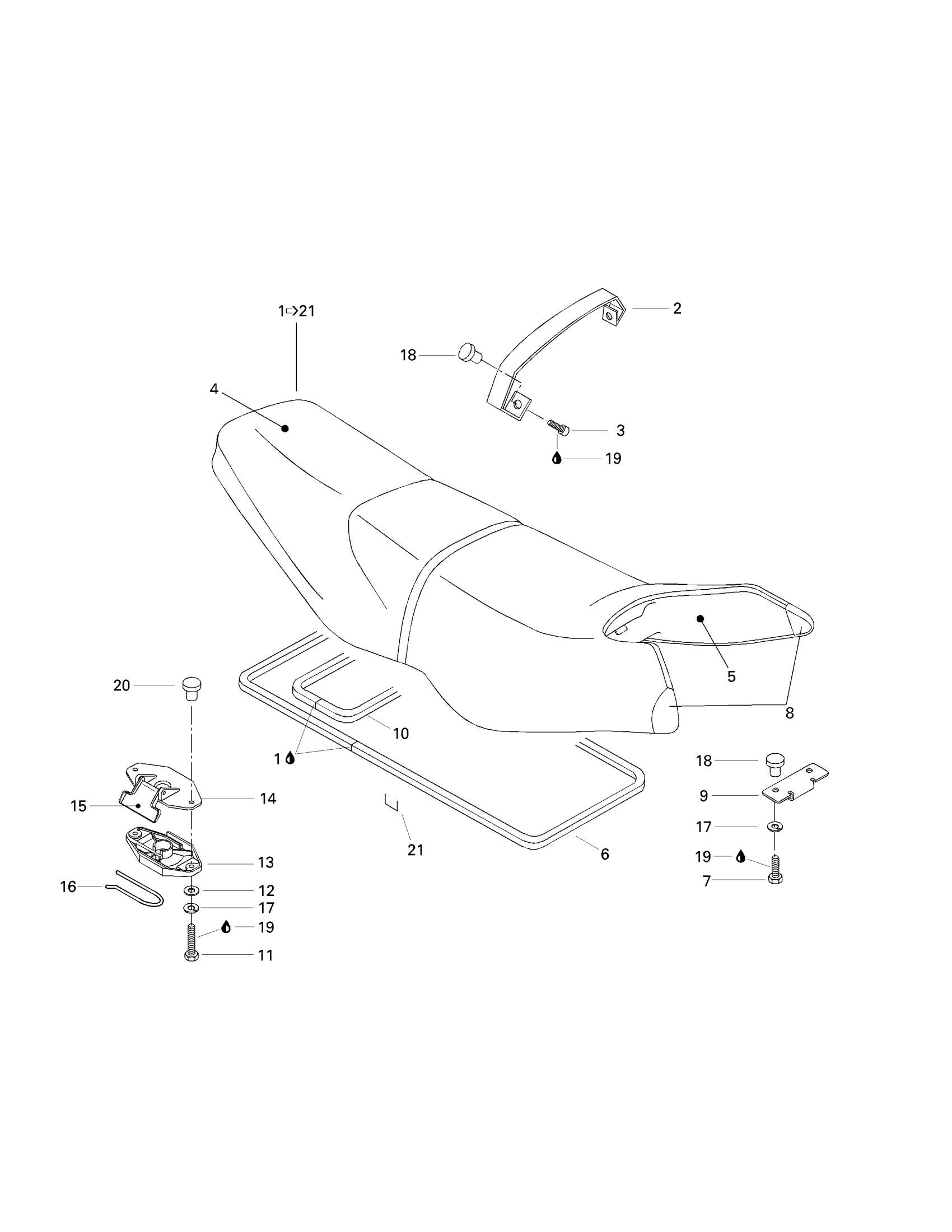

Sea-doo GSX Limited 5625, 1998 09- Seat And Engine Cover Diagram

Seat Ass'y (Viper Red) | Includes 1 - 21.

Not Available As Spare Part - Friction Washer

Seat Strap

Socket Screw Button Head M6 X 10 | DS 650

Seat Cover with Foam

Seat Base

Was 293200017 Neoprene Seal

Hex. Screw M6 X 16

RH Corner Seat

LH Corner Seat

Base Keeper

Was 293200017 Neoprene Seal

Hex. Screw M6 X 35

Stainless Flat Washer M6

Latch Ass'y

Latch Ass'y

Latch Ass'y

Latch Spring

Lock Washer Helical M6

Threaded Insert

Loctite 243, 10 ml

NUT-T-SHAPE - Call your local BRP dealership

Staple
