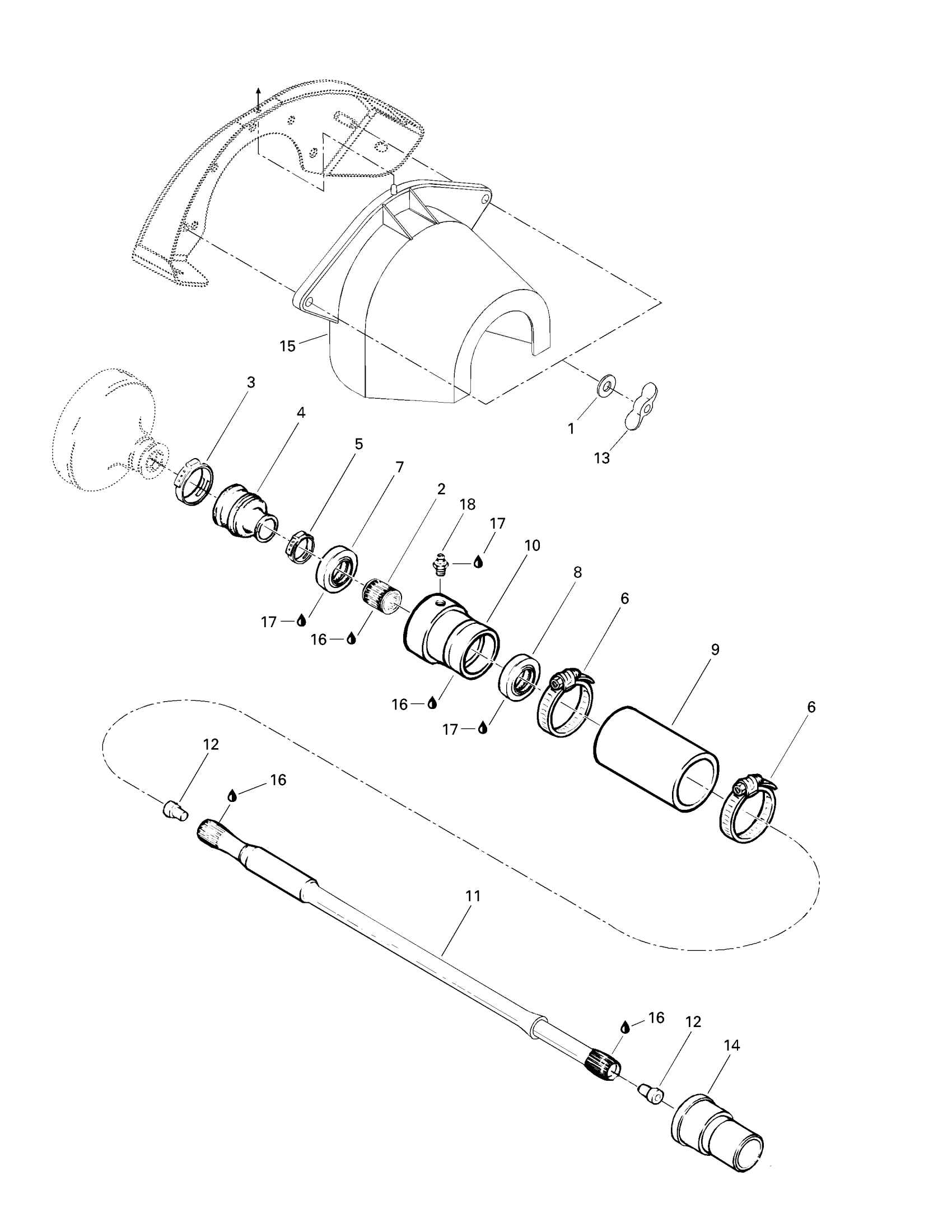

Sea-doo GSX Limited 5625, 1998 Drive System Diagram

#

Description
Price

1

Flat Washer 8 mm, Stainless

234082600

$2.43

2

NEEDLE BEARING SCE1416-L271/STD#E - Call your local BRP dealership

293350007

Unavailable

3

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

4

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

5

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

6

Tridon Clamp

293650035

$7.29

7

Oil Seal

267000094

$22.49

8

DOUBLE LIP SEAL - Call your local BRP dealership

293200012

Unavailable

9

Protection Hose

271000881

Unavailable

10

SEAL CARRIER - Call your local BRP dealership

272000024

Unavailable

11

BELLOWS - Call your local BRP dealership

272000184

$27.99

12

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

13

Wing Nut M8

232681100

$2.19

14

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

15

FLYWHEEL GUARD - Call your local BRP dealership

272000094

Unavailable

16

Synthetic Grease, 400 G

293550010

Unavailable

17

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

18

GREASE FITTING - Call your local BRP dealership

293550008

Unavailable
