03- Magneto, Oil Pump

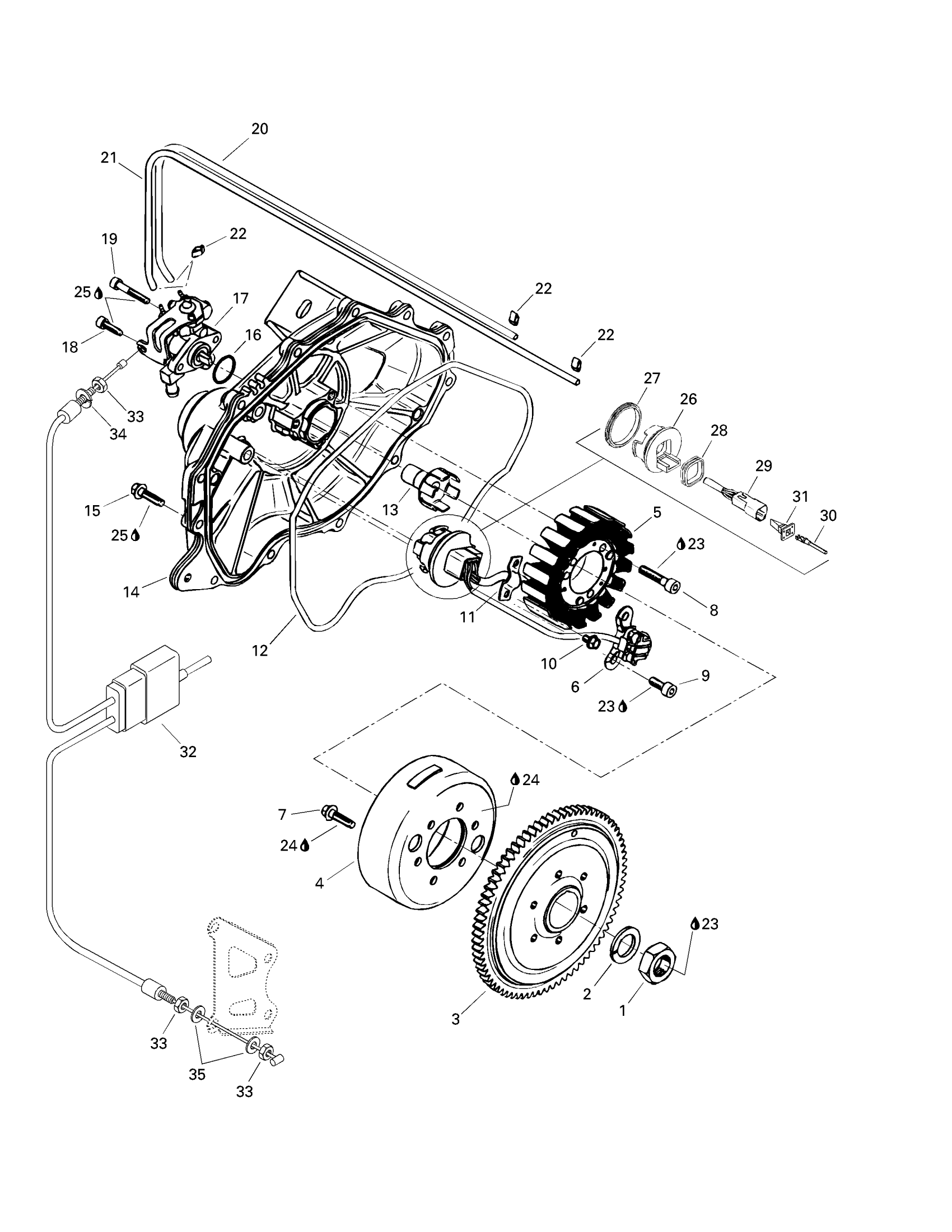

Sea-doo GSX Limited 5625, 1998 03- Magneto, Oil Pump Diagram
#
1
HEX. NUT M18 - Call your local BRP dealership
420942220
Unavailable
2
Lock Washer 18 mm
290945757
Unavailable
3
Hub Flywheel
290966680
Unavailable
4
MAGNETO FLYWHEEL - Call your local BRP dealership
290886598
Unavailable
5
STATOR PLATE ASS'Y - Call your local BRP dealership
290886588
Unavailable
6
Sensor Ass'y
420966832
$184.99
7
Socket Head Screw M6 x 16
290640171
Unavailable
8
SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.
420840887
Unavailable
9
Socket Head Screw M6 x 16
420241237
$2.22
10
Hex. Screw M5 x 8
215050848
Unavailable
11
Retainer Plate
290853080
Unavailable
12
O-Ring
290931690
Unavailable
13
Oil Pump Shaft
290837390
Unavailable
14
Ignition Cover
290811061
Unavailable
15
Hex. Screw M6 x 25
290240032
Unavailable
16
O-RING - Call your local BRP dealership
293300018
Unavailable
17
Oil Pump Ass'y
290887335
Unavailable
18
Cylindrical Slotted Screw M5 x 16
215951660
Unavailable
19
Socket Head Screw M5 x 30
290940883
Unavailable
20
Oil Hose 1500Mm Long
219704404
$17.26
21
Oil Hose 1500Mm Long
219704404
$17.26
22
Clamp
290256408
Unavailable
23
Loctite 243, 10 ml
293800060
$21.49
24
Sealant Loctite 648
219703000
$45.99
25
Dow Corning 111, 150 g
413707000
$59.99
26
Adaptor
270000138
Unavailable
27
Gasket
293300033
Unavailable
28
Gasket
293200030
Unavailable
29
Male Terminal Housing, 6 Circuits
710001539
$19.99
30
Male Terminal
278000631
$4.39
31
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
32
Throttle Cable | Includes 32 - 35.
277000756
Unavailable
33
Hex. Nut M6
232160600
$1.15
34
Lock Washer Helical M6
234161601
$1.15
35
Stainless Flat Washer M6
234061600
$0.33
36
Engine Gasket Set (Not Shown) | .
290888130
Unavailable
37
Cylinder Gasket Set (Not Shown)
290888135
Unavailable
