- GSX Limited 5625, 1998
02- Carburetor

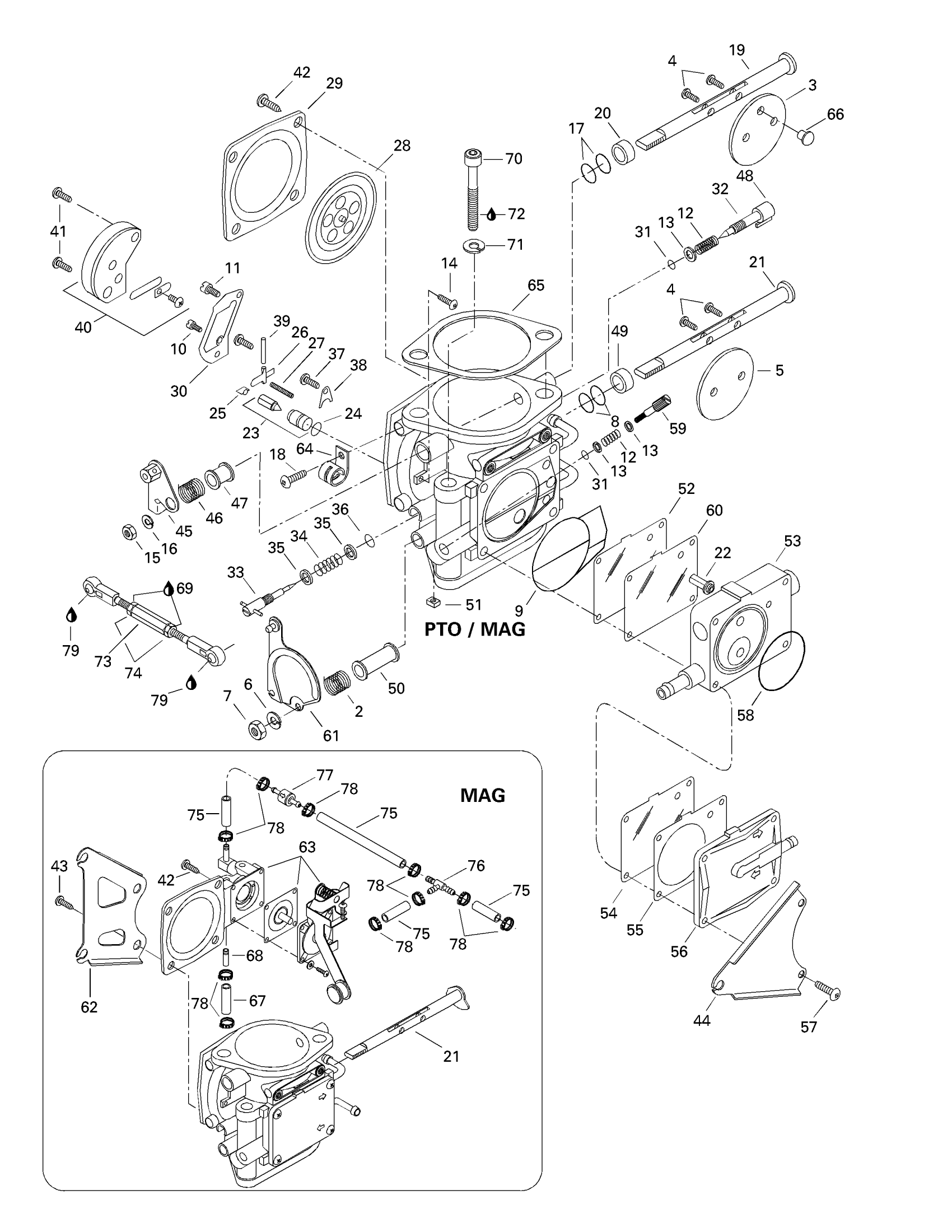

Sea-doo GSX Limited 5625, 1998 02- Carburetor Diagram
#
1
Carburetor BN46-42-2 (P.T.O Side) | Includes 1 - 64. GSX LIMITED PTO 5625.
270500291
Unavailable
Carburetor BN46-42-3 (MAG Side) | GSX LIMITED MAG 5625.
270500292
Unavailable
2
Spring
270500379
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
SCREW - Call your local BRP dealership
270500156
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
SPRING WASHER - Call your local BRP dealership
270500011
Unavailable
7
Nut
270500376
Unavailable
8
Sealing Ring
270500222
Unavailable
9
O-RING - Call your local BRP dealership
270500370
Unavailable
10
Pilot Jet 80
270500362
Unavailable
11
Main Jet 160.0 | GSX LIMITED MAG 5625.
270500372
Unavailable
Main Jet 162.5
270500371
Unavailable
12
SPRING - Call your local BRP dealership
270500091
Unavailable
13
Washer
270500136
Unavailable
14
Screw
270500228
Unavailable
15
NUT - Call your local BRP dealership
270500229
Unavailable
16
Spring Washer
270500230
Unavailable
17
SEALING RING - Call your local BRP dealership
270500234
Unavailable
18
Screw
270500358
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
RING - Call your local BRP dealership
270500239
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
22
FUEL FILTER - Call your local BRP dealership
270500115
Unavailable
23
Needle Valve 1.8 | Includes 23 - 25.
270500375
Unavailable
24
O-RING - Call your local BRP dealership
270500127
Unavailable
25
CLIP - Call your local BRP dealership
270500129
Unavailable
26
NEEDLE VALVE LEVER - Call your local BRP dealership
270500128
Unavailable
27
Spring
270500374
Unavailable
28
DIAPHRAGM ASS'Y - Call your local BRP dealership
270500132
Unavailable
29
Cover | GSX LIMITED PTO 5625.
270500373
Unavailable
30
GASKET - Call your local BRP dealership
270500131
Unavailable
31
O-RING - Call your local BRP dealership
270500144
Unavailable
32
Adjuster Screw
270500113
Unavailable
33
IDLE ADJUSTING SCREW - Call your local BRP dealership
270500020
Unavailable
34
SPRING - Call your local BRP dealership
270500019
Unavailable
35
Washer
270500018
Unavailable
36
O-RING - Call your local BRP dealership
270500119
Unavailable
37
Screw And Spring Washer
270500155
Unavailable
38
PLATE - Call your local BRP dealership
270500125
Unavailable
39
Pin
270500038
Unavailable
40
VALVE ASS'Y - Call your local BRP dealership
270500124
Unavailable
41
SCREW - Call your local BRP dealership
270500123
Unavailable
42
Screw
270500243
Unavailable
Screw
270500322
Unavailable
43
SCREW - Call your local BRP dealership
270500238
Unavailable
44
Bracket | GSX LIMITED PTO 5625.
270500361
Unavailable
45
Choke lever
270500380
Unavailable
46
Spring
270500382
Unavailable
47
Ring
270500381
Unavailable
48
Cap
270500154
Unavailable
49
Ring | CHALLENGER 1800 5679 MAG.
270500221
Unavailable
Ring
270500353
Unavailable
50
Ring
270500378
Unavailable
51
Nut
270500249
Unavailable
52
DIAPHRAGM - Call your local BRP dealership
270500369
Unavailable
53
Body Pump Ass'y | GSX LIMITED PTO 5625.
270500367
Unavailable
54
DIAPHRAGM - Call your local BRP dealership
270500366
Unavailable
55
GASKET - Call your local BRP dealership
270500365
Unavailable
56
GASKET - Call your local BRP dealership
270500365
Unavailable
Pump Cover | GSX LIMITED PTO 5625.
270500364
Unavailable
57
Screw
270500303
Unavailable
58
O-Ring
270500363
Unavailable
59
Adjuster Screw
270500288
Unavailable
60
DIAPHRAGM - Call your local BRP dealership
270500368
Unavailable
61
Throttle Lever Ass'y | GSX LIMITED MAG 5625.
270500360
Unavailable
Throttle Lever Ass'y | GSX LIMITED PTO 5625.
270500377
Unavailable
62
Bracket | GSX LIMITED MAG 5625.
270500354
Unavailable
63
Diaphragm Ass'y | GSX LIMITED MAG 5625.
270500355
Unavailable
64
Plate
270500359
Unavailable
65
GASKET - Call your local BRP dealership
270500384
Unavailable
66
Cap
275500399
Unavailable
67
Hose Ass'y | Includes 67 - 68.
270500341
Unavailable
68
RECHARGE JET - Call your local BRP dealership
270500348
Unavailable
69
Sealant LOCTITE 222MS - Call your local BRP dealership
413703400
Unavailable
70
SOCKET HEAD SCREW M8 X 120 - Call your local BRP dealership
231082060
Unavailable
71
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
72
Était Was 293800050 Loctite 577, 250 ml
219704459
$104.99
73
Carburator Linkage
270500319
Unavailable
74
Nut
270500351
Unavailable
Nut
270500352
Unavailable
75
Hose
270500342
Unavailable
76
T Fitting
270500347
Unavailable
77
Check Valve
270500346
Unavailable
78
OETIKER CLAMP - Call your local BRP dealership
293650071
Unavailable
79
Synthetic Grease, 400 G
293550010
Unavailable
80
Gasket
293250066
Unavailable
