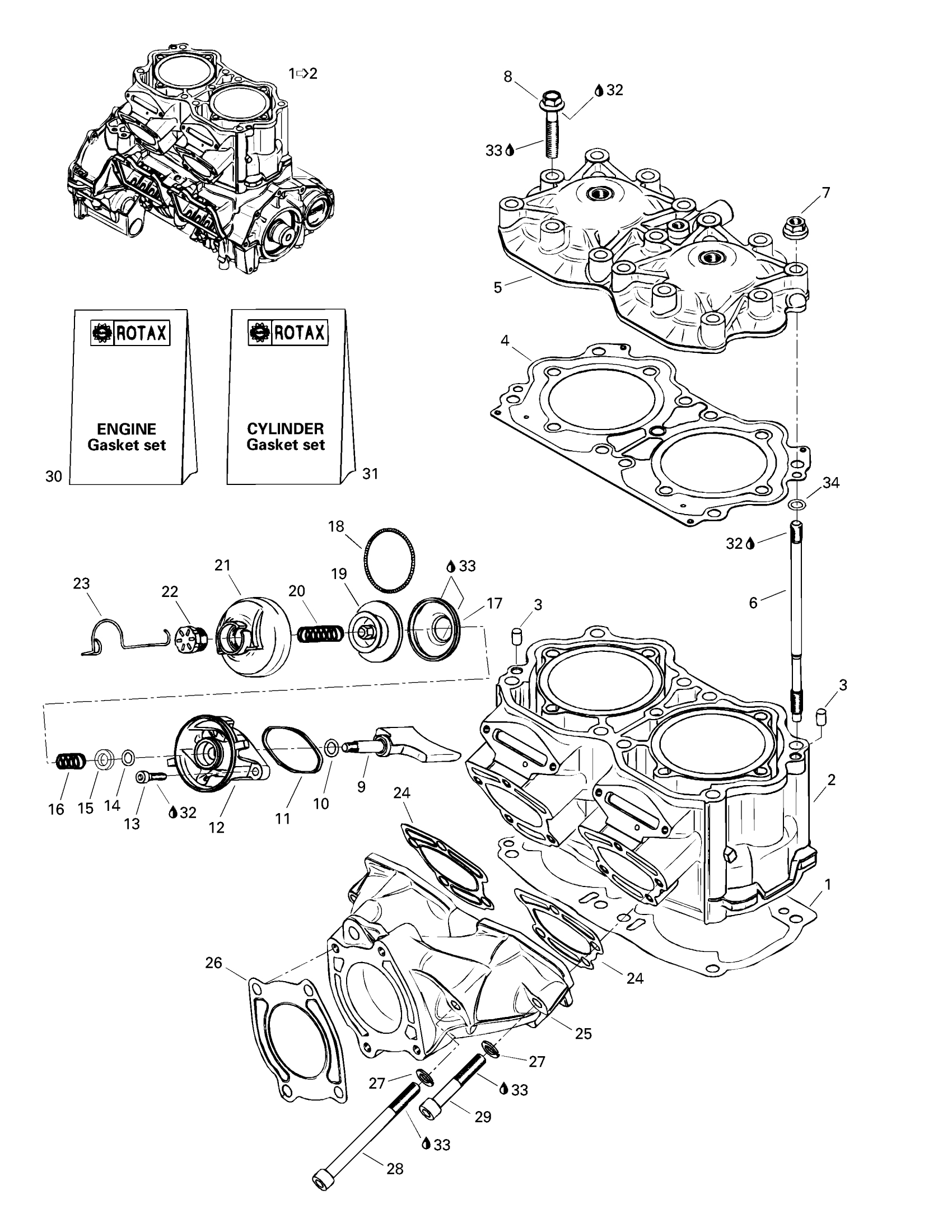

Sea-doo GSX Limited 5625, 1998 Cylinder, Exhaust Manifold Diagram

#

Description
Price

1

Short Block Ass'y | Includes 1 - 9.

295500658

Unavailable

1

Gasket Cylinder 0.3 mm

290931680

Unavailable

Gasket Cylinder 0.4 mm

290931681

Unavailable

Gasket Cylinder 0.6 mm

290931682

Unavailable

2

Cylinder with Sleeve (White)

290923566

Unavailable

3

Center Pin 8 X 12

420632010

$4.01

4

CYLINDER HEAD GASKET 947 - Call your local BRP dealership

420931702

Unavailable

5

Head Cylinder (White)

290923581

Unavailable

6

STUD M10 X 206 - Call your local BRP dealership

290640237

Unavailable

7

Stud Nut M10

290842358

Unavailable

8

Screw Hex. Flange M10 x 60

290841708

Unavailable

9

Exhaust Valve

290854410

Unavailable

10

O-Ring

420430110

$4.44

11

Rubber Gasket

290931670

Unavailable

12

Valve Housing

290854435

Unavailable

Valve Housing (MAG)

290854439

Unavailable

13

Socket Head Screw M6 X 25

205062560

$1.69

14

O-Ring

420931765

$0.98

15

Support Ring

290926220

Unavailable

16

COMPRESSION SPRING - Call your local BRP dealership

420838260

Unavailable

17

Exhaust Bellows

420260723

$42.49

18

Hose Spring This part replaces 420239048.

420939281

$7.41

19

Exhaust Valve This part replaces 290253257.

420854449

$35.99

20

Compression Spring (Sea Level)

290939136

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

21

Valve Cover This part replaces 420911558.

420911559

$29.49

22

Adjuster Screw

420241221

$14.22

23

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

24

Gasket

293250081

Unavailable

25

Exhaust Manifold

290979601

Unavailable

26

EXHAUST GASKET KIT - Call your local BRP dealership

295500815

Unavailable

27

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

28

Socket Head Screw M10 x 110

290941483

Unavailable

29

Allen Screw M10 x 60

215906060

Unavailable

30

Engine Gasket Set (Not Shown) | .

290888130

Unavailable

31

Cylinder Gasket Set (Not Shown)

290888135

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

Dow Corning 111, 150 g

413707000

$59.99

34

O-RING - Call your local BRP dealership

290850460

Unavailable
