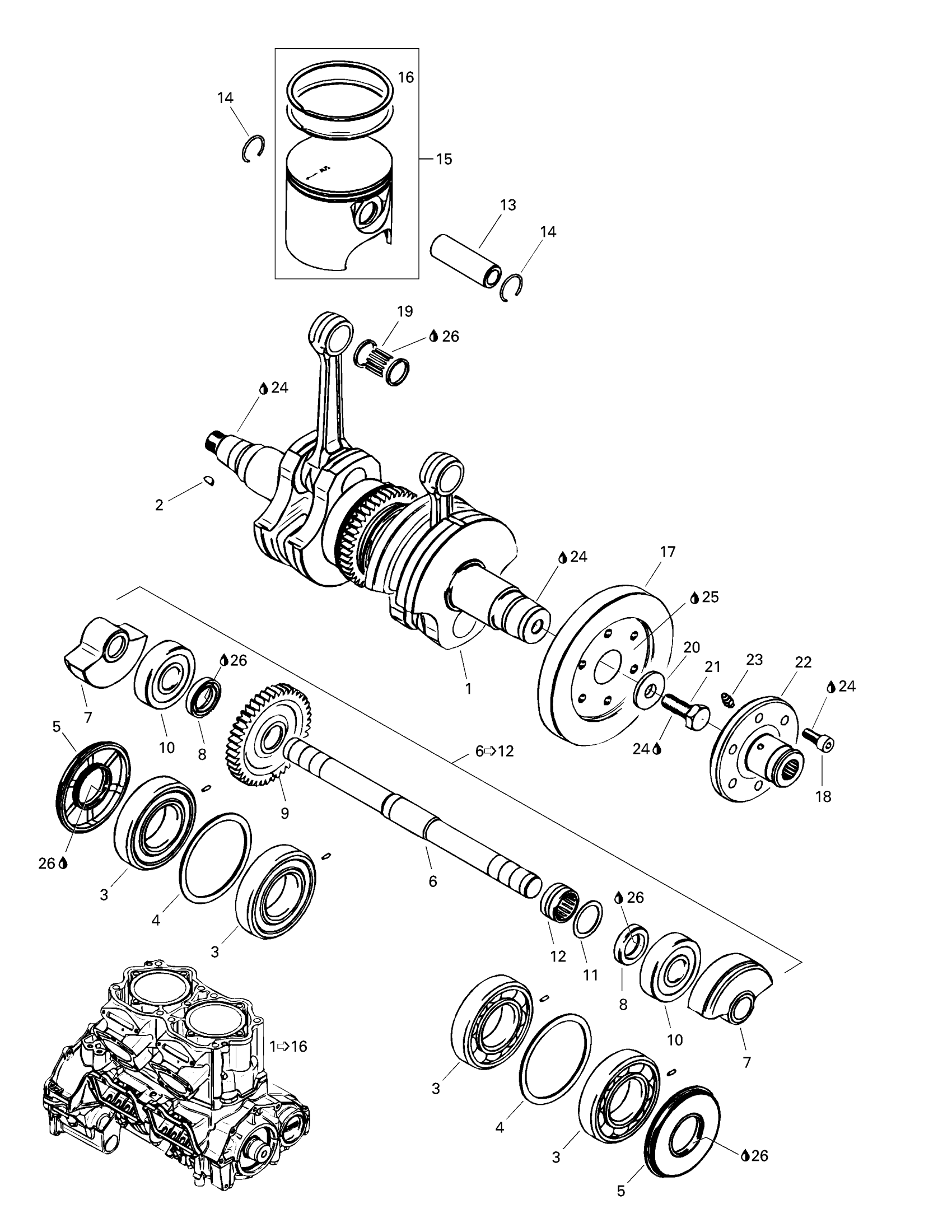

Sea-doo GSX Limited 5625, 1998 Crankshaft And Pistons Diagram

#

Description
Price

1

Short Block Ass'y | Includes 1 - 16.

290881540

Unavailable

1

Crankshaft Ass'y | Includes 1 - 5.

290887760

Unavailable

2

Woodruff Key

420246055

$2.43

3

Bearing_Ball - Call your local BRP dealership

420432271

Unavailable

4

Washer

420926190

$11.63

5

Oil Seal

290931730

Unavailable

6

Shaft Balance Ass'y | Includes 6 - 12.

290837385

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

BALL BEARING <<6304>> - Call your local BRP dealership

290932098

Unavailable

11

Washer

420927192

Unavailable

12

Needle Bearing

290232555

Unavailable

13

Piston Pin

290916395

Unavailable

14

CIRCLIP - Call your local BRP dealership

290845460

Unavailable

15

Piston with 2 Rings, 87.91 mm | Includes 15 - 16.

290887770

Unavailable

Piston Oversize, 2 Rings, 88.16 mm

290887771

Unavailable

16

Semi-Trapez Ring 88.00 mm

290815170

Unavailable

Semi-Trapez Ring 88.25 mm

290815171

Unavailable

17

Coupling

290958080

Unavailable

18

Cylinder Screw M8 x 20

290240073

Unavailable

19

Bearing_Needle This part replaces 420832552.

420832553

$30.49

20

Washer

290827782

Unavailable

21

Hex. Screw M12 x 30

290640120

Unavailable

22

Coupling Flange Ass'y | Includes 22 - 23.

290958121

Unavailable

23

GREASE FITTING - Call your local BRP dealership

290499113

Unavailable

24

Loctite 243, 10 ml

293800060

$21.49

25

Sealant Loctite 648

219703000

$45.99

26

Dow Corning 111, 150 g

413707000

$59.99

27

Engine Gasket Set (Not Shown) | .

290888130

Unavailable

28

Cylinder Gasket Set (Not Shown)

290888135

Unavailable
