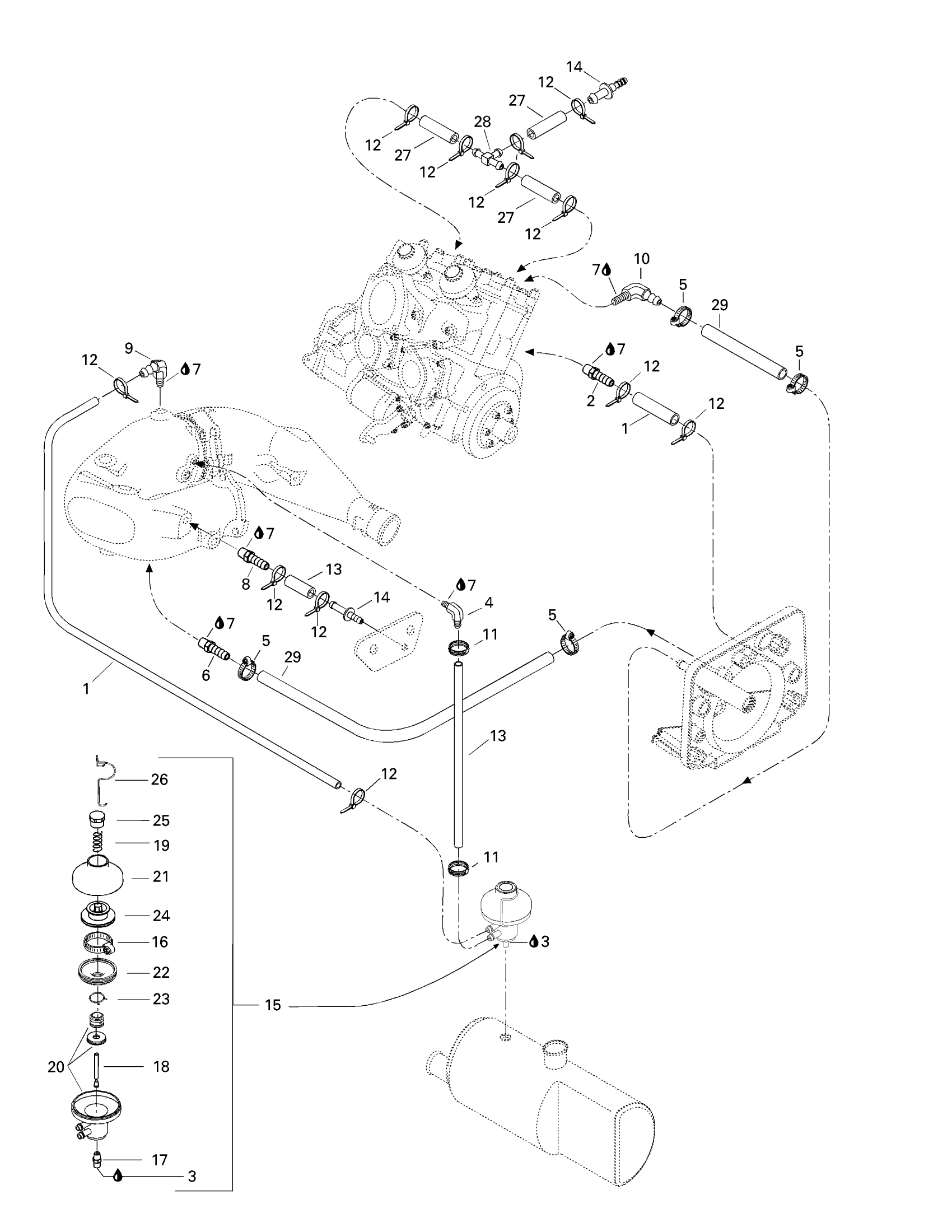

Sea-doo GSX Limited 5625, 1998 Cooling System Diagram

#

Description
Price

1

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

2

MALE CONNECTOR - Call your local BRP dealership

293710066

Unavailable

3

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

4

Elbow Fitting 90°

293710018

Unavailable

5

Tridon Gear Clamp

293650172

$3.09

6

Male Connector | With Catalyst

293710021

$14.23

7

Was 293800013 Loctite 56765

219704454

$65.99

8

Male Connector

293710037

$10.49

9

Elbow Fitting

293700016

Unavailable

10

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

11

Oetiker Clamp

293650042

$3.09

12

Tie Wrap 94 mm | 4X4

293750001

$1.03

13

Hose 6 Mm 15000Mm Long

219704360

$132.49

14

BLEED FITTING - Call your local BRP dealership

291000306

Unavailable

15

Pressure Regulator Ass'y | Includes 15 - 26.

274000556

Unavailable

16

Rivalair Clamp

293650065

Unavailable

17

MALE CONNECTOR - Call your local BRP dealership

293700010

Unavailable

18

FEEDING ROD - Call your local BRP dealership

274000423

Unavailable

19

SPRING 44 MM - Call your local BRP dealership

274000382

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Valve Cover

420911552

$38.99

22

Bellow

420260721

$51.99

23

SPRING CLAMP - Call your local BRP dealership

420838190

Unavailable

24

EXHAUST VALVE - Call your local BRP dealership

420253255

Unavailable

25

Adjuster Screw

420241221

$14.22

26

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

27

Hose 4.5 mm

270000306

Unavailable

28

T-Fitting

293710068

$8.29

29

Was 276000001 Hose 12.5 mm

219704394

$51.99
