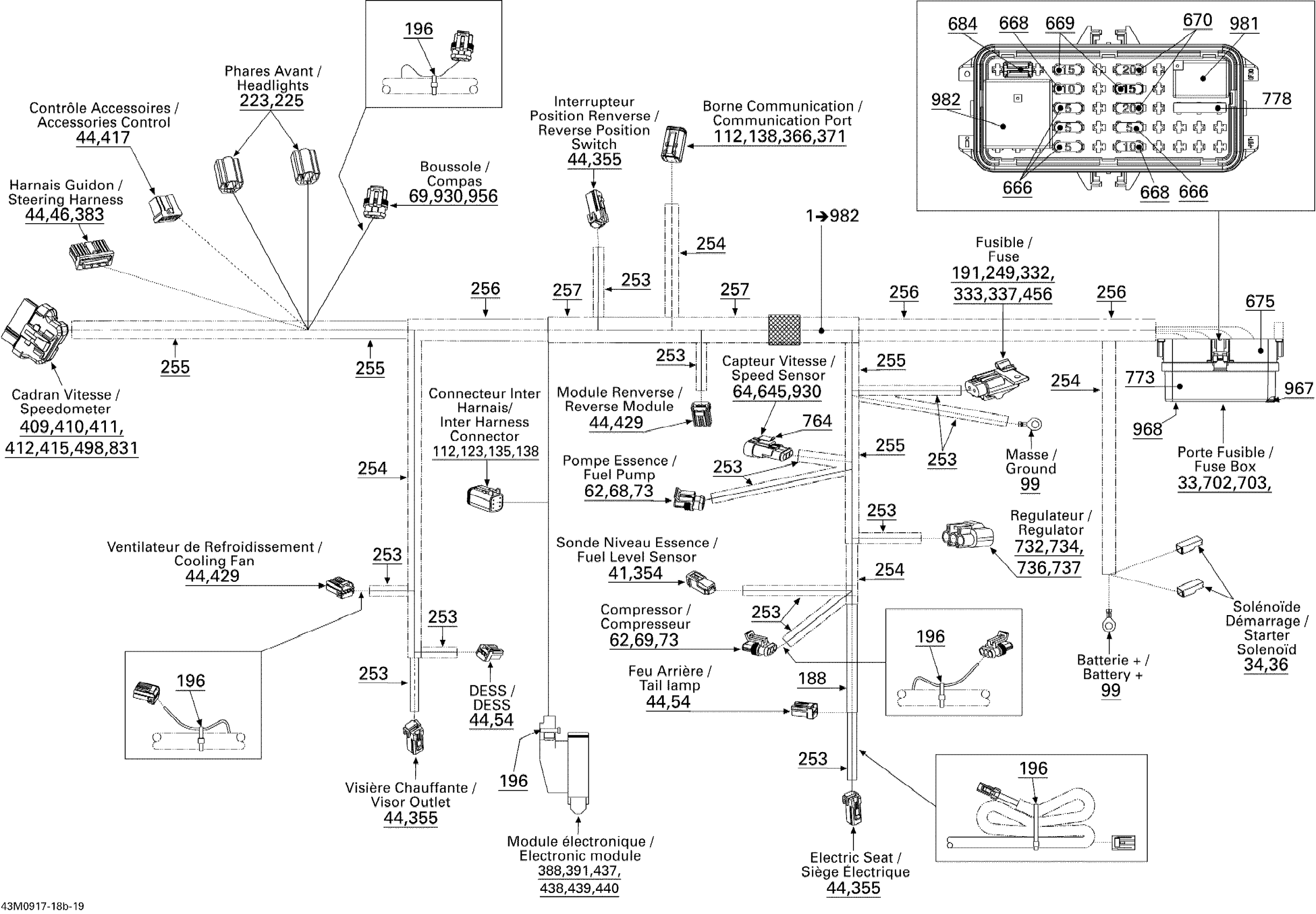

Ski-Doo GSX Limited 1200 4-TEC, 2009 Electrical Harness Diagram

Main Harness | Includes 1 to 982

515176751

Unavailable

Wire Seal

278000999

$2.55

Female Terminal

409010100

$5.46

Female Terminal Housing, 1 Circuit

409010400

$7.48

Male Terminal

515175232

$1.49

Female Terminal

515175231

$4.12

Female Terminal

515175282

$6.43

Female Housing, 3 Circuits

515175495

$15.35

Female Terminal

278001014

$2.72

Housing

710000568

$10.83

Female Housing, 2 Circuits

409209500

$13.48

Female Housing, 3 Circuits

409209600

$35.35

Wire Seal

278001013

$2.72

Open Barrel

278000992

$1.79

Female Terminal

278000632

$1.69

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

Sealing Cap

293000052

$2.55

Tubing 12 mm

409902000

Unavailable

Fuse, 30 Amperes

410917200

$3.22

Tie Wrap 142 mm

293750002

$0.88

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Tubing 6 Mm 3000Mm Long

219704425

$13.14

Was 409901700 Tubing (9 mm)

219704399

$79.97

Was 409901800 Tubing (13 mm)

219704400

$9.40

Tubing 16 Mm 1000Mm Long

219704408

$6.23

Was 409901600 Tubing 19mm

219704398

$89.97

Fuse Holder Cap

278001326

$6.03

Fuse Holder

278001325

$8.57

Female Terminal

710000113

$6.03

Male Terminal Housing, 2 Circuits

515175654

$7.48

Female Housing, 2 Circuits

515175658

$15.35

Male Housing, 6 Circuits

515175673

$13.05

Male Wedge, 6 Circuits

515175678

$5.11

FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175719

Unavailable

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

Plug

515175812

$1.70

Female Housing, 24 Circuits

515175801

$9.00

Retainer Block

515175802

$10.66

Wire Seal

515175803

$2.41

Female Terminal

515175806

$0.81

Female Terminal Housing, 8 Circuits

515175819

$7.46

Not Available As Spare Part - Friction Washer

Unavailable

SEAL - Call your local BRP dealership

515175886

Unavailable

Latch

515175883

$7.48

LOCK - Call your local BRP dealership

515175884

Unavailable

COVER - Call your local BRP dealership

515175885

Unavailable

Cushion

278000805

$3.22

Female Housing

710000399

$14.02

Male Terminal

515176164

$6.43

Little Fuse, 5 Amperes

710000742

$7.24

Little Fuse, 10 Amperes

710000744

$7.24

Little Fuse, 15 Ampere

710000745

$6.77

Little Fuse, 20 Amperes

710000746

$6.77

Fuse Box Base Ass´y

415129856

$41.57

Fuse Puller

710000781

$8.29

Female Terminal

710000836

$5.46

Female Terminal

710000837

$4.32

Female Terminal

710000877

$6.32

Female Housing, 3 Circuits

710000879

$21.42

Seal

710000881

$14.27

Cap

710000882

$9.19

Clip

710000992

$4.00

Fuse Cover

710001026

$17.52

Bus Bar

278002165

$7.24

Female Terminal

710001131

$7.00

Wire Seal

515176621

$7.00

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

Foam

278002172

$5.49

RELAY-FUSE DECAL - Call your local BRP dealership

515176723

Unavailable

Relay, 30 AMP

515176774

$19.20

Relay, 50 AMP

515176775

$13.86
