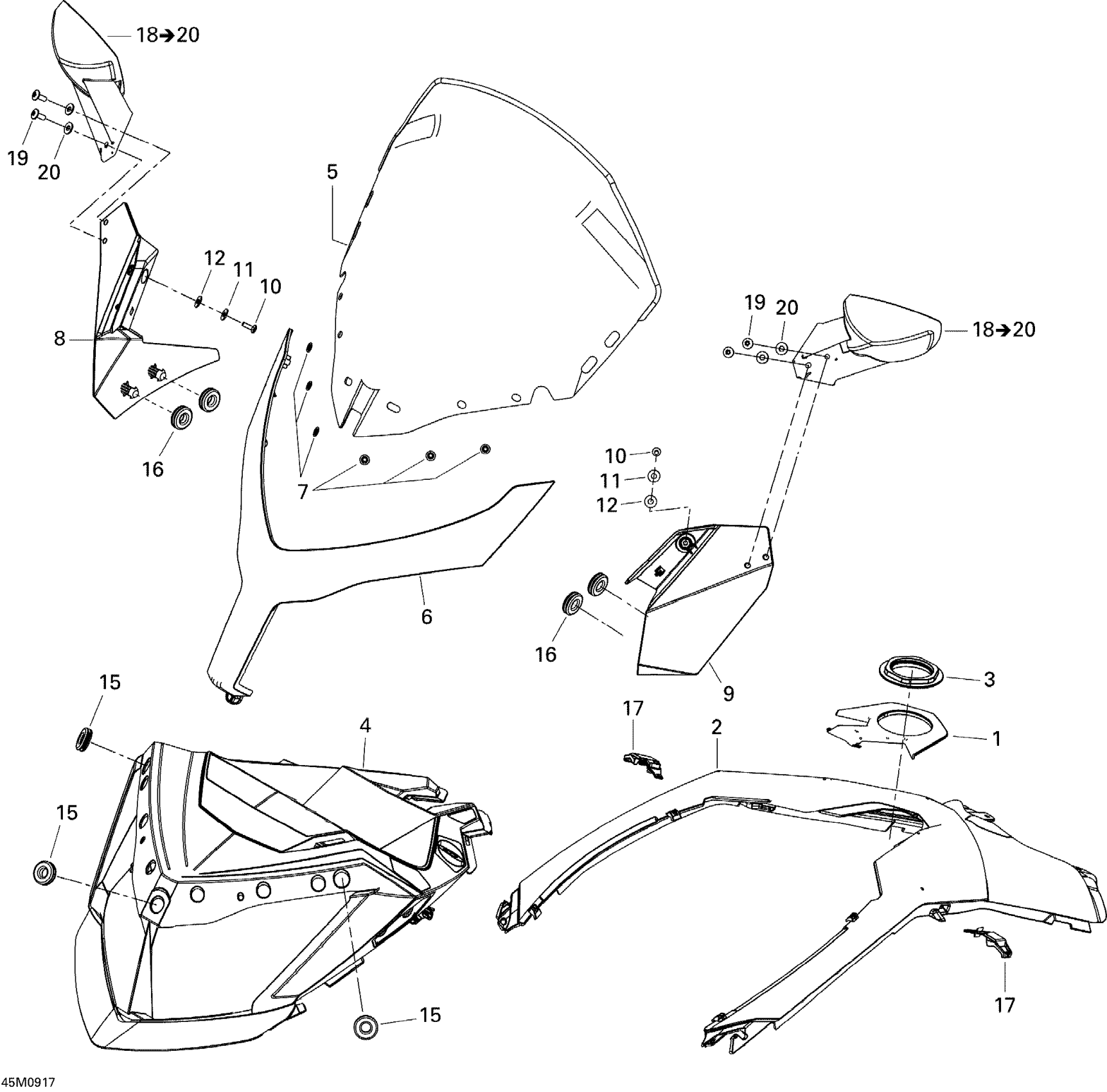

Ski-Doo GSX Limited 1200 4-TEC, 2009 09- Windshield And Console Diagram

#

Description
Price

1

Deep Black, Cap Console

517304027

$15.49

2

Black Console

517303741

$224.99

2

CONSOLE - Call your local BRP dealership | Red-Red Model

517304042

Unavailable

3

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

4

INDICATOR SUPPORT - Call your local BRP dealership

517303971

Unavailable

5

HIGHT WINDSHIELD (430) - Call your local BRP dealership

517303797

Unavailable

6

Medium Windshield Support

860200229

$31.99

7

Push Nut

732610072

$2.19

8

RH CONSOLE AIR DEFLECTOR - Call your local BRP dealership

517303799

Unavailable

9

LH CONSOLE AIR DEFLECTOR - Call your local BRP dealership

517303800

Unavailable

10

Torx Screw K50 X 16

250000720

$1.69

11

Washer M5

250200025

$0.74

12

Rubber Washer 5 mm

250200024

$2.19

15

Grommet

517303756

$4.09

16

Grommet

517303756

$4.09

17

Panel Latch

517305000

$13.49

18

RH Mirror Ass'y

517305100

$52.99

18

LH Mirror Ass'y

517305101

$52.99

19

Torx Truss Screw M6 X 16

250000721

$1.69

20

Rubber Washer 5 mm

250200024

$2.19
