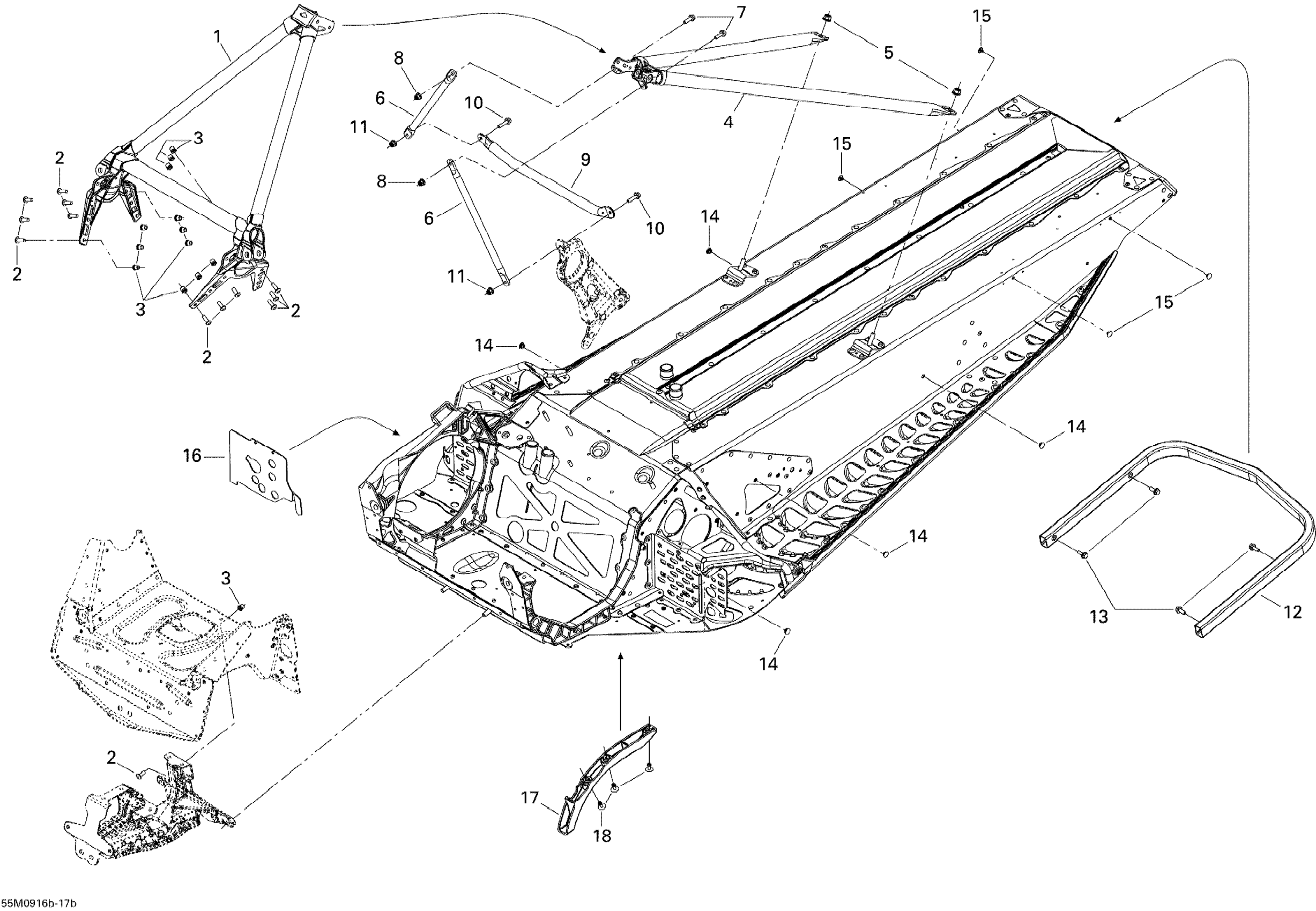

Ski-Doo GSX Limited 1200 4-TEC, 2009 Frame and Components Diagram

#

Description
Price

1

Front Member

518326970

$299.99

2

Hex. Flange Screw M6 X 20

207662044

$2.00

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4

Rear Member

518326559

$264.99

5

Hex. Flange Elastic Nut M8

233281414

$1.47

6

Upper Lateral Column Support

518325114

$22.49

7

Hex. Flange Screw M6 X 20

207662044

$2.00

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Center Column Support

518326657

$19.99

10

Hex. Flange Screw M6 X 25

207662544

$0.64

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Clear Rear Bumper

518324980

$99.49

13

Hex. Flange Screw M6 X 16

207661644

$0.74

14

Full Moon Dart 8 mm

293730041

$2.21

15

Not Available As Spare Parts

XXX

Unavailable

16

HEAT SHIELD - Call your local BRP dealership

518325418

Unavailable

17

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$18.49

18

Pop Rivet 3/16”

293150108

$1.19
