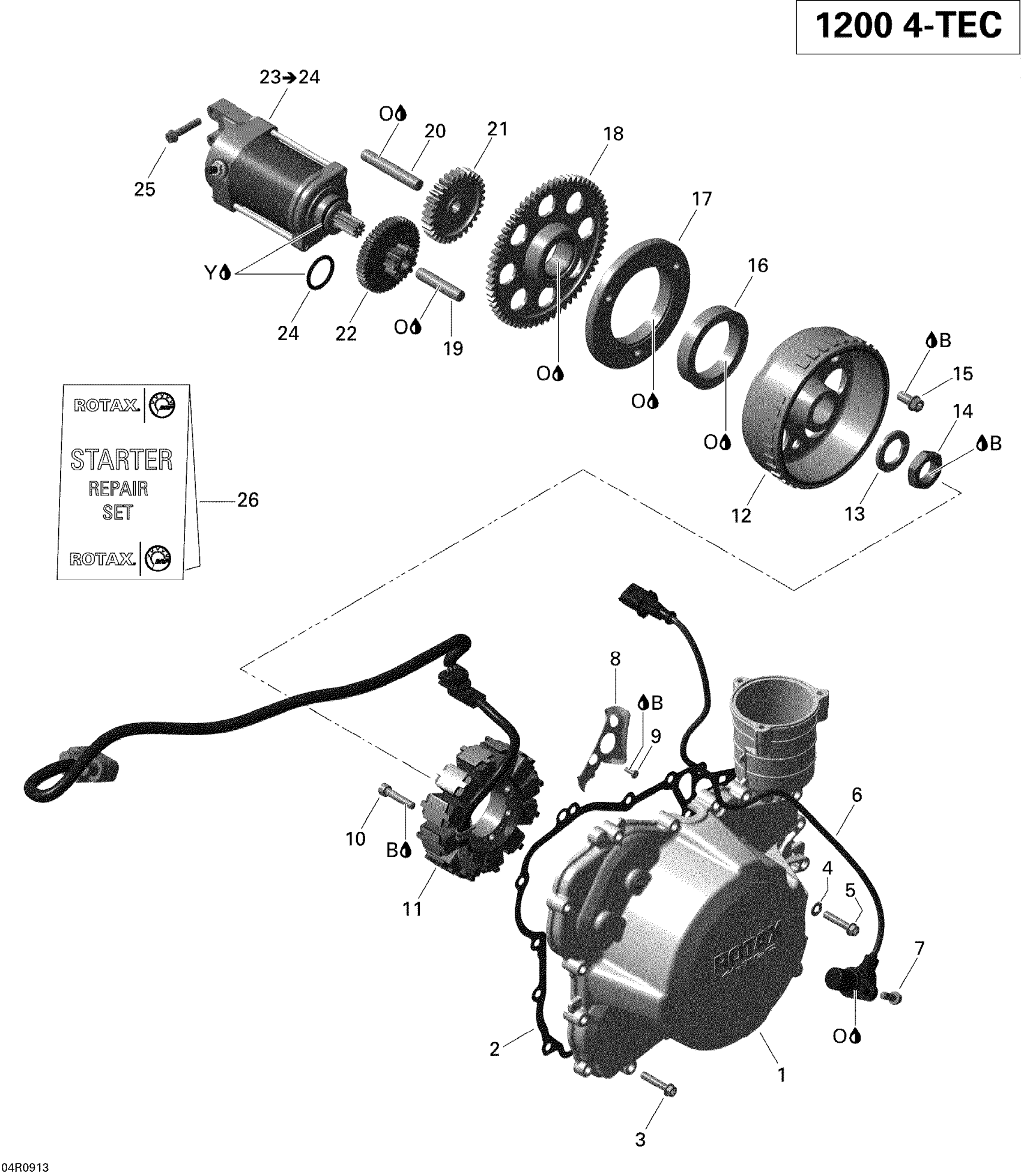

Ski-Doo GSX Limited 1200 4-TEC, 2009 Magneto And Electric Starter Diagram

#

Description
Price

1

Cover

420611833

$182.28

2

Gasket

420430750

$19.20

3

Torx Flange Screw M6 X 30

420440647

$1.97

4

Sealing Washer

404146600

$0.62

5

Torx Flange Screw M6 X 30

420440647

$1.97

6

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$92.92

7

Torx Flange Screw M6 X 16

420440162

$3.11

8

Cable Holder

420951192

$15.35

9

TORX SCREW 3.5 X 8 - Call your local BRP dealership

420640085

Unavailable

10

Socket Head Screw M6 X 30

205063044

$1.42

11

Stator Ass'y | Includes 8 to 11

420892378

$340.99

12

Magneto Flywheel

420892361

$295.35

13

Lock Washer, 22 mm

420945759

$1.55

14

Hex. Nut, M22 X 1.5

420842239

$14.27

15

Torx Flange Screw M8 X 16

420440852

$4.00

16

Sprag Clutch

420659113

$205.37

17

Housing Sprag Clutch

420659266

$164.58

18

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

$179.20

19

Location Pin 10 M6x50

420229302

$3.11

20

Needle Pin

420229475

$12.29

21

GEAR, 30 TEETH - Call your local BRP dealership

420634604

Unavailable

22

Starter Double Gear 11/49 T

420634741

$155.97

23

Starter Ass'y | Includes 25 to 26

420893531

$297.99

24

O-Ring

420250140

$7.05

25

Torx Flange Screw M6 X 30

420440647

$1.97

26

Carbon Brush Set This part replaces 420881140.

420881141

$63.82

B

Loctite 243, 10 ml

293800060

$20.77

O

Not Available As Spare Part - Friction Washer

Unavailable

Y

Was 420297616 Klueber Grease, 60g

219704464

$23.82
