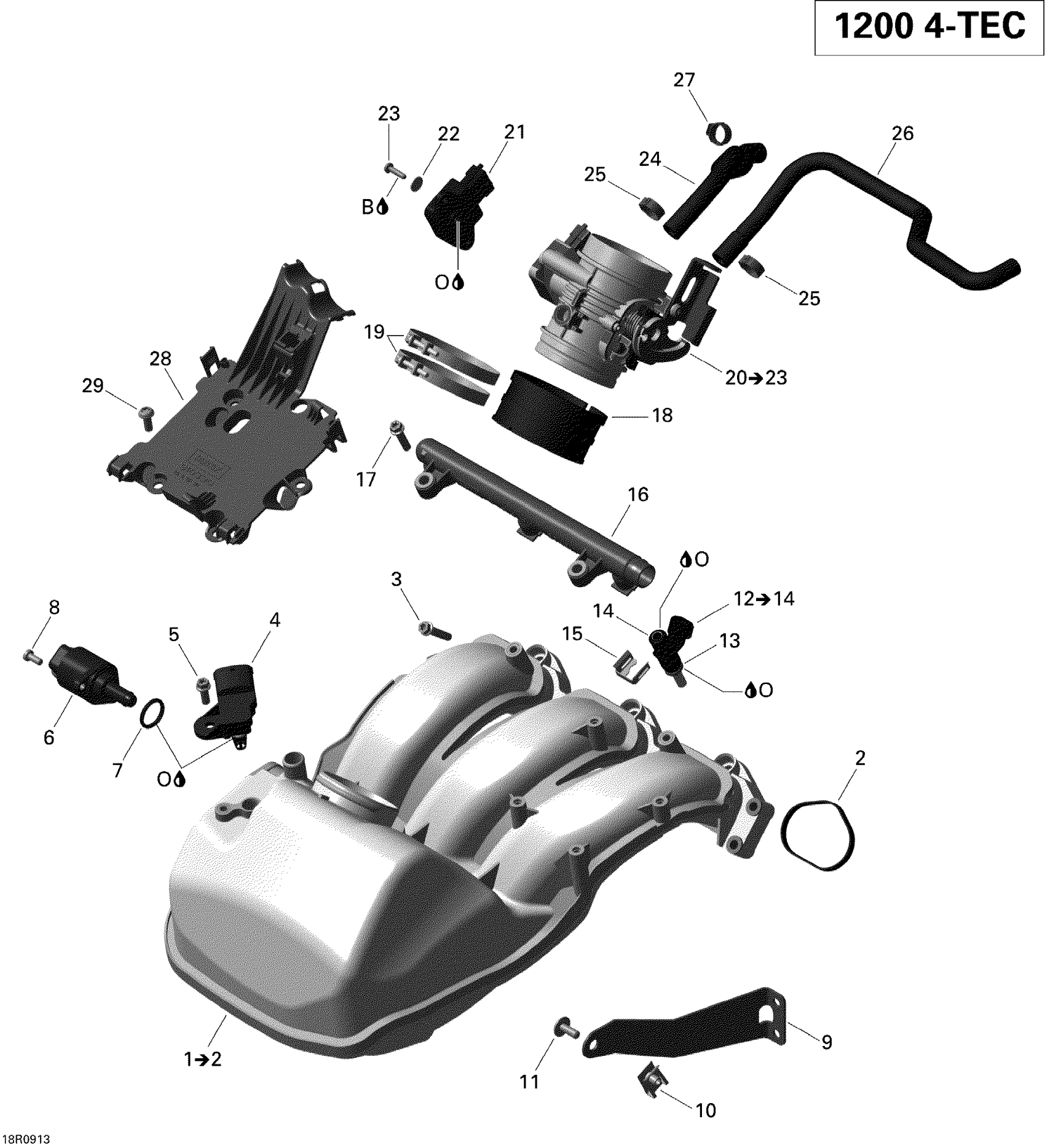

Ski-Doo GSX Limited 1200 4-TEC, 2009 02- Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Air Intake Manifold | Includes 1 To 2

420667440

$254.99

2

Gasket

420950745

$16.33

3

Torx Flange Screw M6 X 30

420440647

$2.00

4

Pressure And Temperature Sensor

707000995

$88.99

5

Torx Flange Screw M6 X 16

420440162

$3.17

6

Idle Air Control Valve

420665941

$179.99

7

O-Ring

420631780

$4.44

8

Torx Screw M5 X 12

420640086

$2.11

9

SUPPORT - Call your local BRP dealership

420951011

$9.89

10

Panel Nut M6 X 1

420942108

$14.28

11

Torx Screw M6 X 16

420241524

$2.11

12

Injection Valve Ass'Y | Includes 18 to 20

420874833

$158.99

13

O-Ring

420431890

$7.49

14

O-Ring

420631220

$14.28

15

Injector Clip

420853030

$3.09

16

Fuel Rail

420874810

$134.99

17

Torx Flange Screw M6 X 25

420440234

$3.06

18

INTAKE ADAPTOR - Call your local BRP dealership

420460490

Unavailable

19

Clamp

420251209

$8.57

20

THROTTLE BODY SOCKET ASS'Y - Call your local BRP dealership | Includes 20 To 23

420891905

Unavailable

21

Position Sensor

420866120

$98.99

22

Flat Washer 4 mm, Stainless

234042600

$1.15

23

Phillips Screw M4 X 16

208641660

$0.90

24

MOLDED HOSE - Call your local BRP dealership

420460482

Unavailable

25

Oetiker Clamp

293650125

$3.29

26

MOLDED HOSE - Call your local BRP dealership

420822660

Unavailable

27

Clamp

420851458

$7.41

28

BASE PLATE - Call your local BRP dealership

420910331

Unavailable

29

Torx Flange Screw M6 X 16

420641588

$2.11

B

Loctite 243, 10 ml

293800060

$21.49

O

Not Available As Spare Part - Friction Washer

Unavailable
