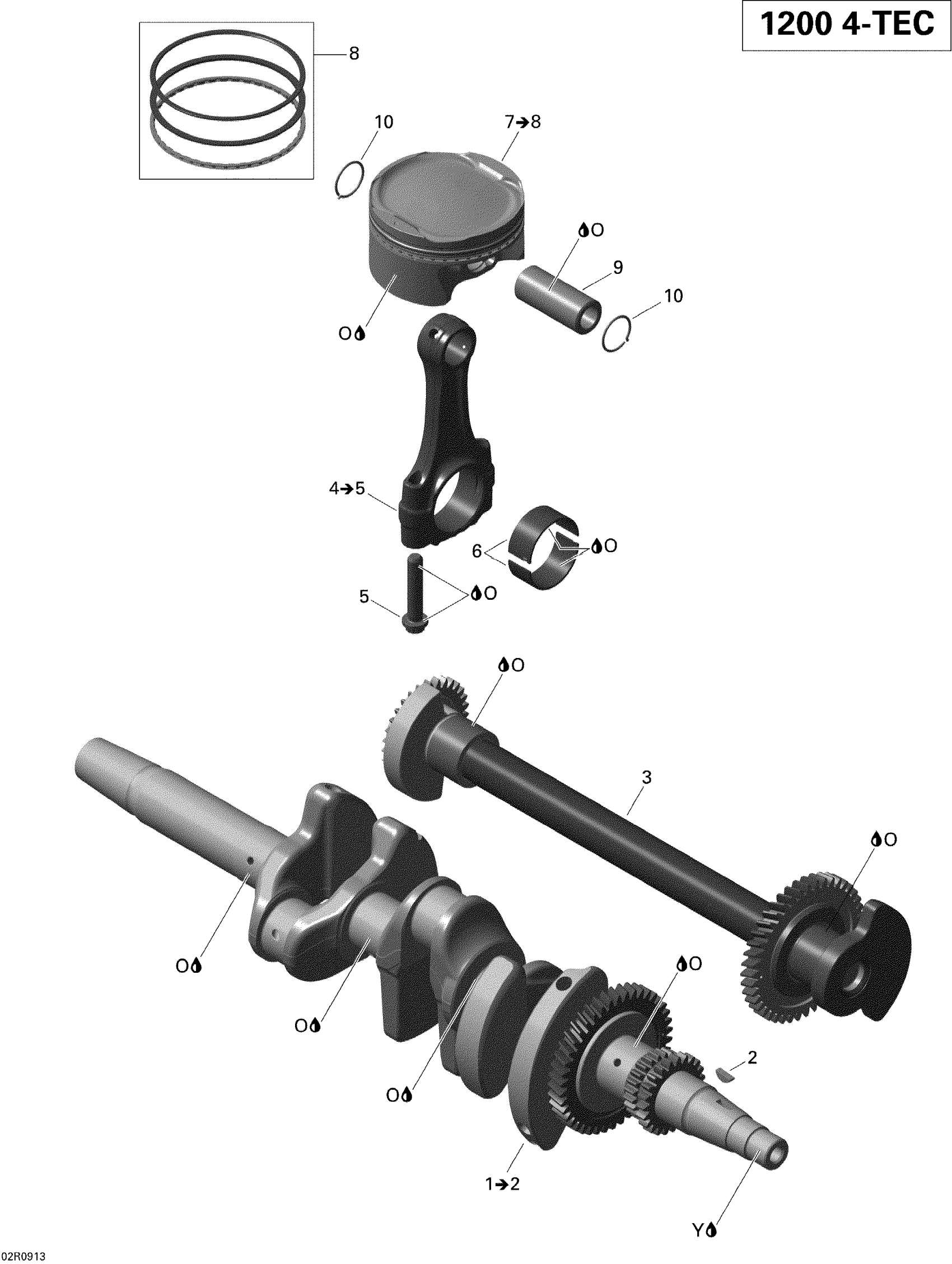

Ski-Doo GSX Limited 1200 4-TEC, 2009 01- Crankshaft, Pistons And Balance Shaft Diagram

CRANKSHAFT ASS'Y - Call your local BRP dealership | Includes 1 to 2

420819796

$949.99

Woodruff Key 4 X 5

420246570

$3.38

Balance Shaft This part replaces 420820054.

420820053

$539.99

CONNECTING ROD ASS'Y - Call your local BRP dealership | Includes 4 to 5

420917645

$239.99

Connecting Rod Screw M9 X 1

420641475

$17.53

Plain Bearing

420933842

$19.49

Piston Ass'y, 90.958 mm | Includes 7 to 8

420891890

$180.99

Piston Ring Set | 400HO

420296774

$78.99

Piston Pin

420216274

$28.49

Piston Circlip

420245436

$4.89

Not Available As Spare Part - Friction Washer

Unavailable

Was 420297616 Klueber Grease, 60g

219704464

$23.99
