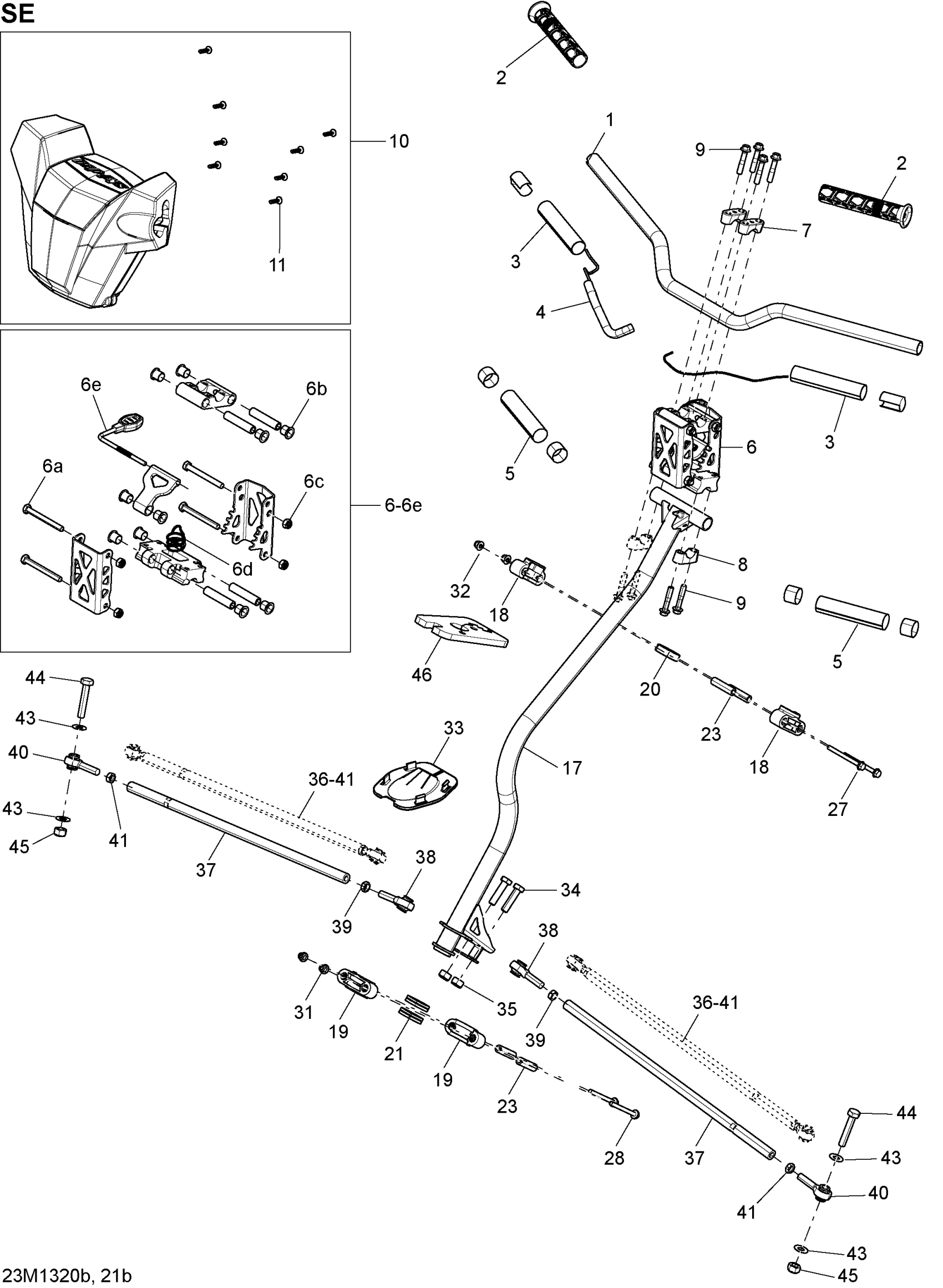

Ski-Doo GSX LE & SE 1200 XR, 2013 Steering SE Diagram

#

Description
Price

1

HANDLE BAR - Call your local BRP dealership

506152304

$81.51

2

Grip

506152501

$10.18

3

HEATING ELEMENT 20 WATT - Call your local BRP dealership

506152605

$30.74

4

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

$37.66

5

Insulant

506153178

$10.23

6

ADJUSTABLE HANDLEBAR - Call your local BRP dealership

506152197

$196.12

6a

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

$1.64

6b

Cushion

506152520

$12.37

6c

Hex. Flange Elastic Nut M8

233281414

$1.14

6d

Spring | Package SE

506152184

$8.74

6e

HANDLE ASM - Call your local BRP dealership

506152411

Unavailable

7

Steering Support | Includes 40 to 40a

506152751

$10.09

8

Steering Support | Includes 40 to 40a

506152751

$10.09

9

Hex. Flange Screw M8 X 40

250000352

$3.26

10

Steering Pad (Adjustable)

506152330

$96.12

10

Steering Pad (Adjustable)

506152601

$96.12

11

Screw PT Type K-50 X 16

250000959

$1.74

17

Steering Column

506152964

$189.20

18

Upper Half-Housing

506152508

$7.40

19

Lower Half-Housing

506152217

$5.57

20

Upper Anti-Vibration Gasket

506152509

$4.52

21

Lower Vibration Ring

506152518

$4.52

23

Housing Bushing

506152297

$10.23

27

Hex. Flange Screw M6 X 70

207667056

$3.61

28

Hex. Flange Screw M6 X 70

207667044

$0.70

31

Elastic Flange Nut M6 X 1.0

233261416

$1.74

32

Elastic Flange Nut M6 X 1.0

233261416

$1.74

33

Plate

506152163

$10.23

34

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

35

Elastic Stop Nut M10

232500416

$1.56

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Tie-Rod Ass'y

506152496

$59.97

38

LH Thread Ball Joint

506152081

$39.97

39

LH Threaded Hex. Jam Nut M10

250100016

$0.72

40

RH Threaded Ball Joint

506152019

$39.97

41

RH Threaded Hex. Jam Nut M10

732610010

$0.72

43

Washer

506152582

$4.42

44

Hex Screw M10 X 1.5 X 55

207005554

$6.18

45

ELASTIC LOCKING NUT M10 - Call your local BRP dealership

250100132

$4.05

46

Bushing

506152521

$13.60
