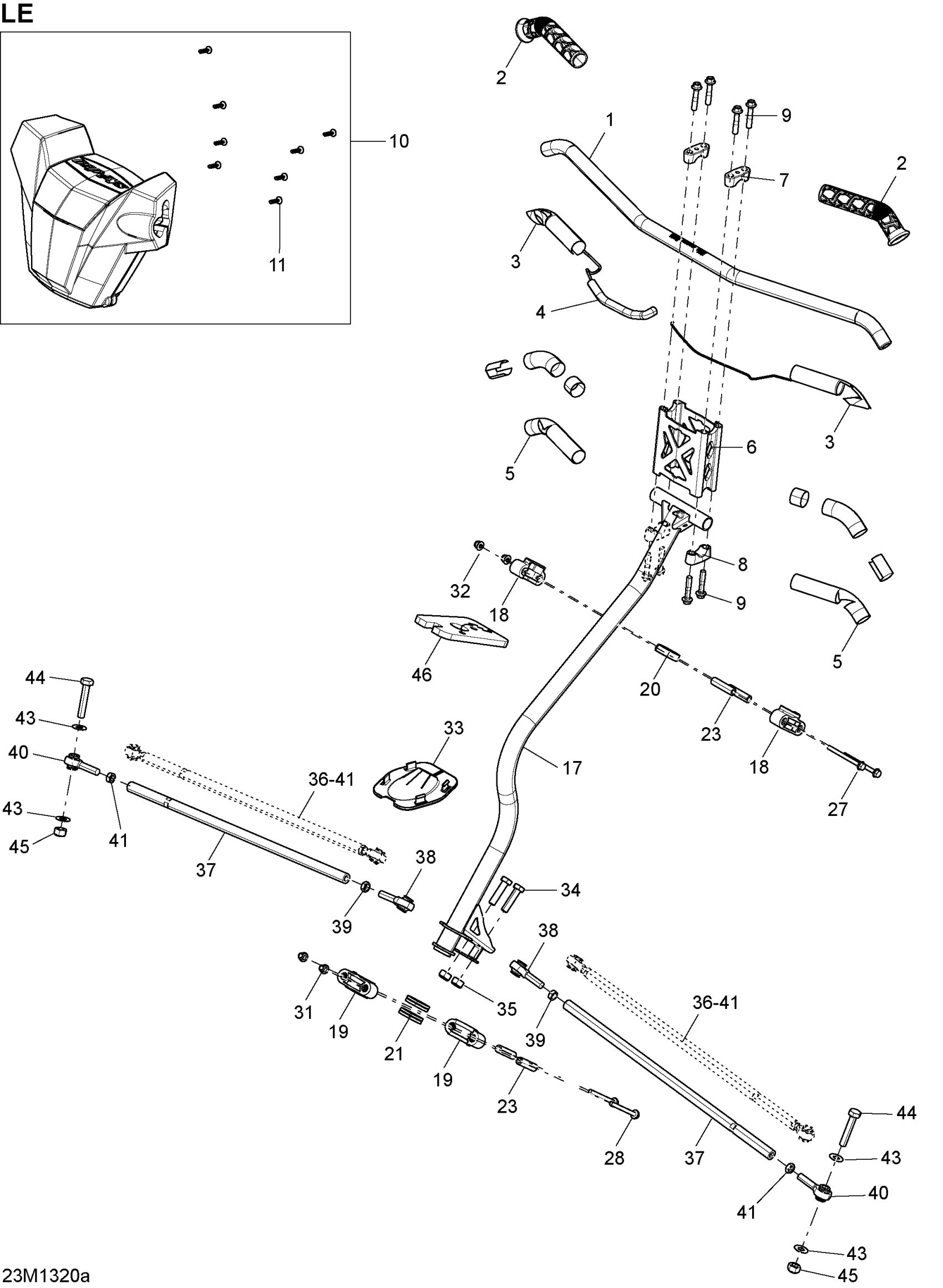

Ski-Doo GSX LE & SE 1200 XR, 2013 Steering LE Diagram

#

Description
Price

1

Handle Bar, Non Dyed Clear Anodizing

506152709

$81.51

2

Grip

506152486

$14.71

3

Heating Element 28 WATT This part replaces 506152602.

506152603

$43.82

4

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

$37.66

5

Isolant

506152611

$7.80

6

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

Unavailable

7

Steering Support | Includes 40 to 40a

506152751

$10.09

8

Steering Support | Includes 40 to 40a

506152751

$10.09

9

Hex. Flange Screw M8 X 40

250000352

$3.26

10

STEERING PAD - Call your local BRP dealership

506152249

$55.35

17

Steering Column

506152964

$189.20

18

Upper Half-Housing

506152508

$7.40

19

Lower Half-Housing

506152217

$5.57

20

Upper Anti-Vibration Gasket

506152509

$4.52

21

Lower Vibration Ring

506152518

$4.52

23

Housing Bushing

506152297

$10.23

27

Hex. Flange Screw M6 X 70

207667056

$3.61

28

Hex. Flange Screw M6 X 70

207667044

$0.70

31

Elastic Flange Nut M6 X 1.0

233261416

$1.74

32

Elastic Flange Nut M6 X 1.0

233261416

$1.74

33

Plate

506152163

$10.23

34

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

35

Elastic Stop Nut M10

232500416

$1.56

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Tie-Rod Ass'y

506152496

$59.97

38

LH Thread Ball Joint

506152081

$39.97

39

LH Threaded Hex. Jam Nut M10

250100016

$0.72

40

RH Threaded Ball Joint

506152019

$39.97

41

RH Threaded Hex. Jam Nut M10

732610010

$0.72

43

Washer

506152582

$4.42

44

Hex Screw M10 X 1.5 X 55

207005554

$6.18

45

ELASTIC LOCKING NUT M10 - Call your local BRP dealership

250100132

$4.05

46

Bushing

506152521

$13.60
