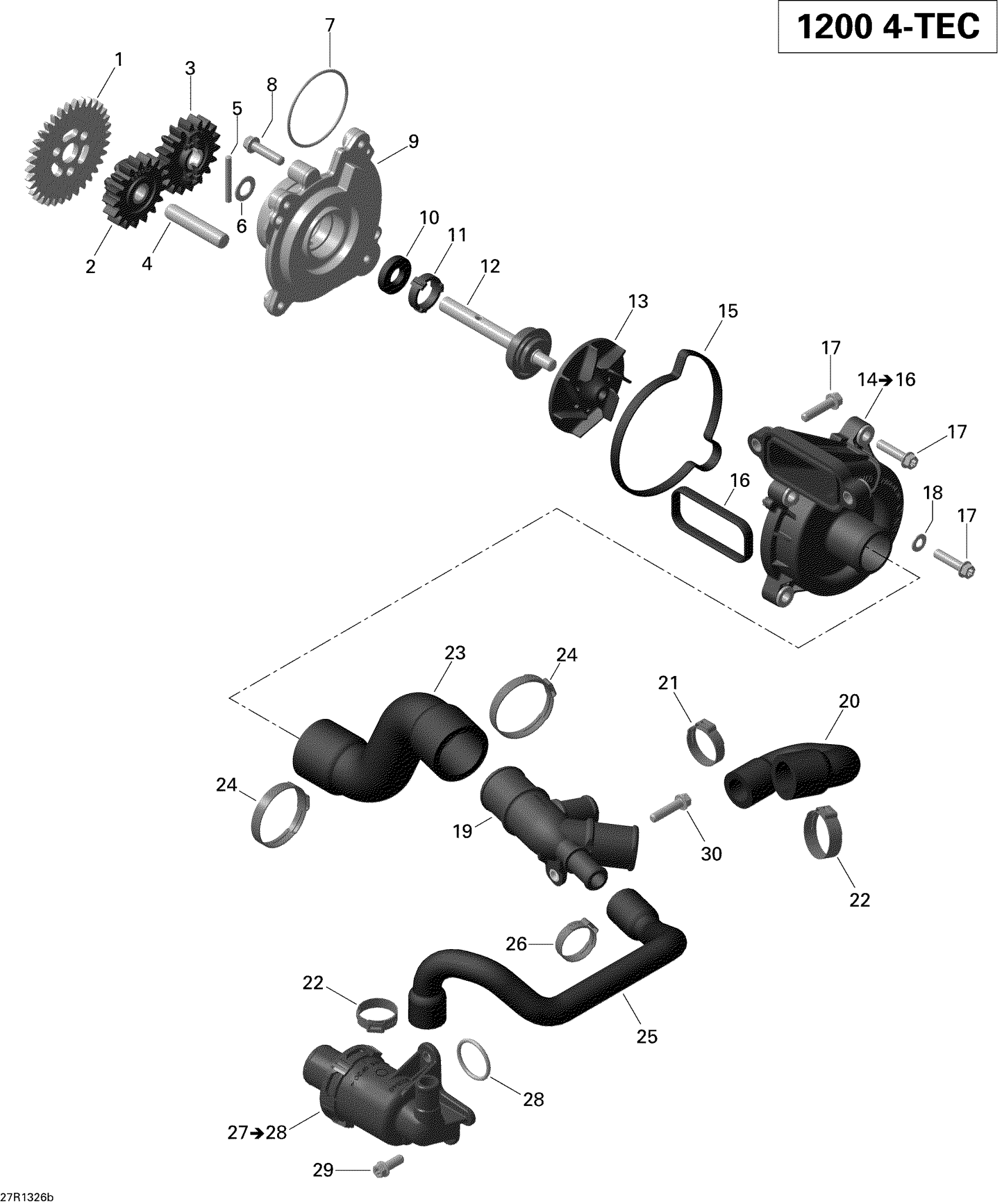

Ski-Doo GSX LE & SE 1200 XR, 2013 Engine Cooling GSX SE Diagram

#

Description
Price

1

Idle Gear, 34 Teeth

420835065

$67.99

2

Idle Gear, 17 Teeth

420835062

$20.49

3

Water Pump Gear, 18 Teeth

420835070

$20.49

4

Location Pin 10 M6x50

420229302

$3.17

5

Needle Pin

420832660

$2.11

6

Thrust Washer

420827590

$4.01

7

O-Ring

293300117

$4.44

8

Torx Flange Screw M6 X 25

420440234

$3.06

9

Step Collar

420910230

$67.99

10

Oil Seal

420650315

$11.65

11

Spacer Ring

420947430

$2.11

12

Water Pump Shaft

420837921

$52.99

13

Water Impeller

420922805

$37.99

14

Water Pump Housing Ass'y | Includes 14 to 16 This part replaces 420822462.

420822463

$64.99

15

Gasket

420430780

$15.28

16

Gasket

420431290

$15.28

17

Torx Flange Screw M6 X 25

420440234

$3.06

18

Seal Washer

420230415

$1.79

19

Water Manifold

420922141

$39.99

20

MOLDED HOSE - Call your local BRP dealership

420922091

Unavailable

21

Gear Clamp

420851673

$5.71

22

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

23

Molded Hose

420460461

$20.49

24

Gear Clamp

420951293

$9.27

25

Molded Hose

420922132

$30.49

26

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

27

Thermostat Housing Ass'y | Includes 30 to 31

420822541

$70.99

28

O-Ring

420631876

$11.60

29

Torx Flange Screw M6 X 16

420440162

$3.17

30

Torx Flange Screw M6 X 25

420440234

$3.06
