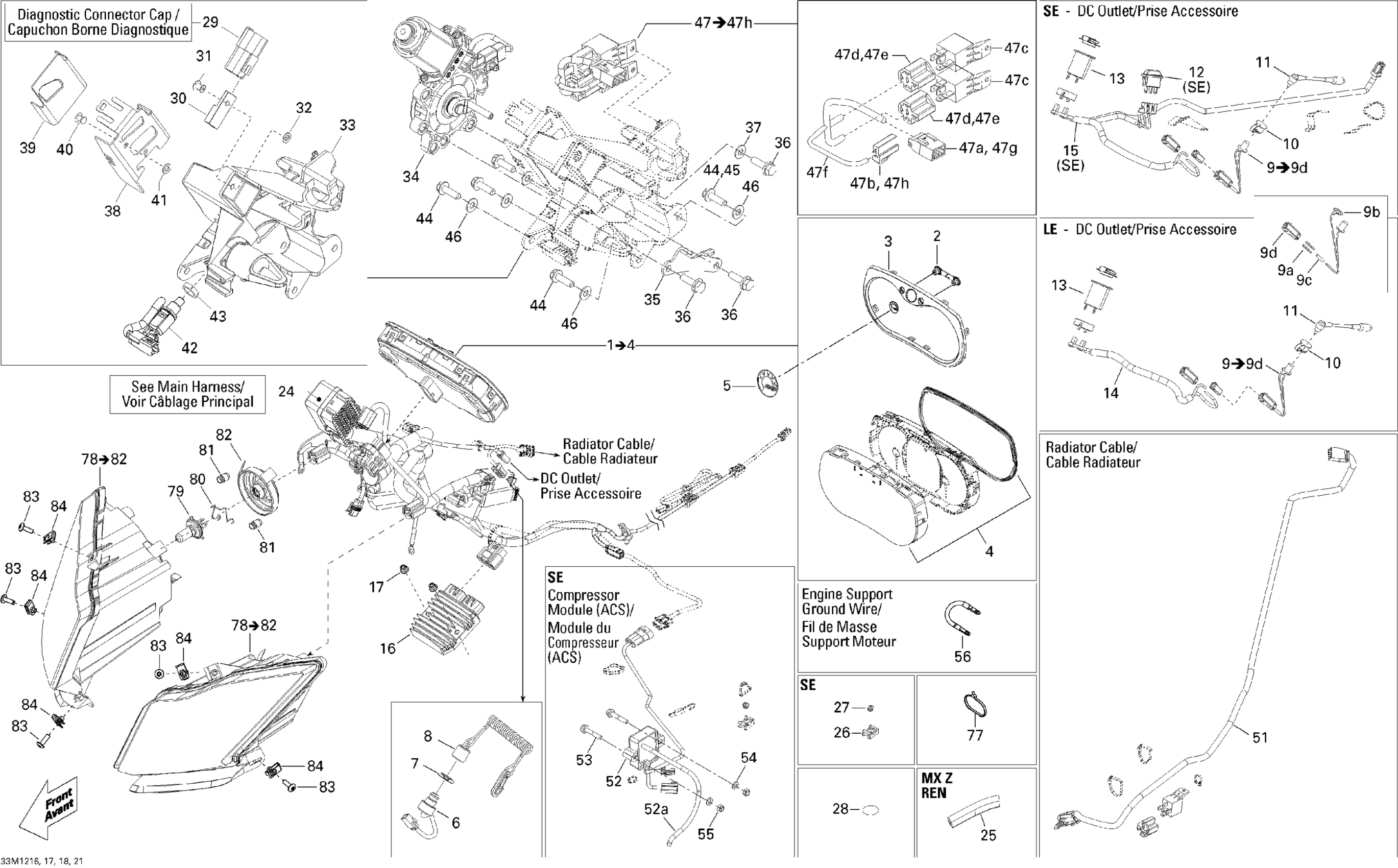

Ski-Doo GSX LE & SE 1200 XR, 2012 10- Electrical System Diagram

#

Description
Price

1

Speedometer | Includes 10 to 10c

515177910

$659.99

1

Speedometer | Includes 10 to 10c

515177910

$659.99

2

Speedometer Button | XTP

415129355

$15.80

3

Gauge Ring

415129348

$13.99

4

Lens | XTP

415129349

$24.49

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

DESS Switch

515177249

$114.99

7

Safety Nut (DESS Switch)

278002963

$3.28

8

DESS

515178284

$84.99

9

Visor Harness

515177837

$33.99

9a

Male Terminal

515175232

$1.58

9b

OPEN BARREL - Call your local BRP dealership

515175172

Unavailable

9c

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

9d

Male Terminal Housing, 2 Circuits

515175654

$9.12

10

Cap

572103300

$10.49

11

Extension

515175851

$11.12

12

ROCKER SWITCH ASS'Y - Call your local BRP dealership | Includes 950 to 950,002

515176844

Unavailable

13

DC Outlet

710001248

$37.99

14

Harness Accessories

515177188

$37.99

15

SEAT HARNESS - Call your local BRP dealership

515177189

Unavailable

16

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

24

WIRING HARNESS MAIN - Call your local BRP dealership

515177107

Unavailable

25

Not Available As Spare Parts

XXX

Unavailable

26

Tie Rap Mount (screwable)

515176795

$5.39

27

Avex Rivet

390909200

$0.30

28

Adhesive Patch

518325560

$4.69

29

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

30

Clip

270000141

$11.49

31

Pop Rivet 3/16"

390402200

$0.35

32

Flat Washer M5

234051410

$0.53

33

PLATE - Call your local BRP dealership

515177044

Unavailable

34

Electrical Motor Ass'y

515178574

$259.99

35

PLATE - Call your local BRP dealership

515177039

Unavailable

36

Hex. Flange Screw M6 X 20

207662044

$2.00

37

Flat Washer

224061121

$0.53

38

Fuse Support - Call Your Local BRP Dealership

515177549

Unavailable

39

PROTECTOR - Call your local BRP dealership

515176637

Unavailable

40

Pop Rivet 3/16"

390402200

$0.35

41

Flat Washer M5

234051410

$0.53

42

Switch Ass'y

515176472

$72.99

43

Brass Nut

250000373

$7.51

44

Hex. Flange Screw M6 X 20

210262040

$2.11

45

Not Available As Spare Parts

XXX

Unavailable

46

Flat Washer

250200039

$0.74

47

REVERSE CABLE - Call your local BRP dealership | Includes 3130A to 3130K

515176760

Unavailable

47a

Male Terminal

515175232

$1.58

47b

Female Terminal

515175282

$7.86

47c

Relay | DS 650 X

710010053

$23.49

47d

Female Housing, 5 Circuits

409209900

$9.59

47e

Female Terminal

561503100

$2.41

47f

Tubing 10 MM 1000MM Long

219704407

$2.79

47g

Male Terminal Housing, 4 Circuits

515175846

$8.79

47h

Female Terminal Housing

515176550

$7.86

51

Fan Harness

515177646

$54.99

52

Compressor Module | With Air Suspension

515177125

$539.99

52a

Hose 4.32Mm 3000Mm Long

219704415

$55.99

53

Hex. Flange Screw M6 X 35

207663544

$0.90

54

Flat Washer 6 mm

234061410

$1.36

55

Elastic Stop Nut M6

232561414

$0.55

56

Ground Wire

515177289

$26.99

77

Tie-Rap 180 mm

414115200

$0.11

77

Tie Wrap 368 mm

293750008

$1.04

77

Tie Wrap 142 mm

293750002

$1.25

77

Tie Wrap 94 mm | 4X4

293750001

$1.03

77

Tie-Rap 180 mm

414115200

$0.11

77

Tie-Rap 206 mm

293750027

$2.89

78

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

78

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

79

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

80

BULB HOLDER - Call your local BRP dealership

515176493

Unavailable

81

Cap

515176498

$12.99

82

Rubber Cap Protector

219800280

$19.49

83

Torx Screw M6 X 20

250000722

$1.68

84

Panel Nut M6 X 1.0

250100198

$2.11
