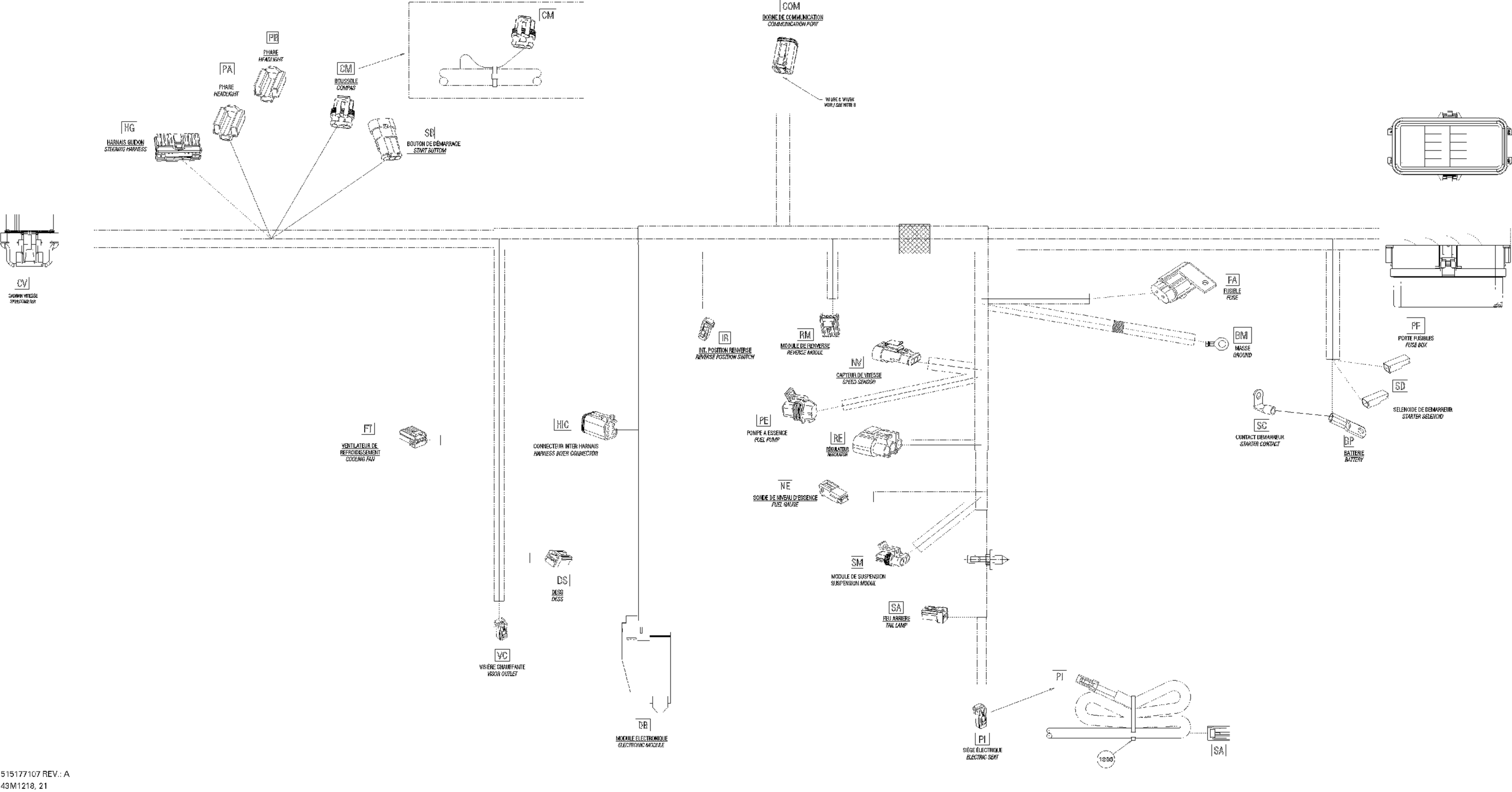

Ski-Doo GSX LE & SE 1200 XR, 2012 Electrical Harness Diagram

#

Description
Price

1

WIRING HARNESS MAIN - Call your local BRP dealership

515177107

Unavailable

BM

Open Barrel

278000992

$2.06

BP

Not Available As Spare Part - Friction Washer

Unavailable

BP

Not Available As Spare Part - Friction Washer

Unavailable

CM

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

CM

Female Housing, 3 Circuits

409209600

$34.30

CM

Not Available As Spare Part - Friction Washer

Unavailable

COM

Female Terminal

278000632

$1.94

COM

Sealing Cap

293000052

$2.93

COM

Male Housing, 6 Circuits

515175673

$12.66

COM

Male Wedge, 6 Circuits

515175678

$4.96

CV

Female Housing, 24 Circuits

515175801

$8.73

CV

Retainer Block

515175802

$10.34

CV

Wire Seal

515175803

$2.76

CV

Female Terminal

515175806

$0.93

CV

Not Available As Spare Part - Friction Washer

Unavailable

CV

Female Housing

710000399

$13.60

CV

Female Terminal

710001131

$6.79

DB

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

DB

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

DB

Latch

515175883

$7.25

DB

LOCK - Call your local BRP dealership

515175884

Unavailable

DB

COVER - Call your local BRP dealership

515175885

Unavailable

DB

SEAL - Call your local BRP dealership

515175886

Unavailable

DS

Female Terminal

515175231

$4.00

DS

Female Housing, 3 Circuits

515175495

$14.90

FA

Cushion

278000805

$3.12

FA

Fuse Holder

278001325

$8.31

FA

Fuse Holder Cap

278001326

$5.85

FA

Fuse, 30 Amperes

410917200

$3.12

FA

Female Terminal

710000113

$5.85

FT

Female Terminal

515175231

$4.00

FT

Not Available As Spare Part - Friction Washer

Unavailable

HG

Female Terminal

515175231

$4.00

HG

Female Terminal

515175282

$6.24

HG

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

Unavailable

HIC

Female Terminal

278000632

$1.94

HIC

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

HIC

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

HIC

Sealing Cap

293000052

$2.93

IR

Female Terminal

515175231

$4.00

IR

Female Housing, 2 Circuits

515175658

$14.90

NE

Male Terminal

515175232

$1.45

NE

Male Terminal Housing, 2 Circuits

515175654

$7.25

NV

Male Terminal

515176164

$6.24

NV

Not Available As Spare Part - Friction Washer

Unavailable

NV

Housing

710000568

$10.51

NV

Clip

710000992

$3.88

PA

Female Housing

515176908

$11.69

PA

Terminal

515176909

$2.06

PB

Female Housing

515176908

$11.69

PB

Terminal

515176909

$2.06

PE

Female Terminal

278001481

$2.93

PE

Seal

278001482

$2.93

PE

Plug

409013700

$4.28

PE

Housing

710001132

$9.31

PE

Lock

710001133

$4.00

PF

Wire Seal

278000999

$2.93

PF

Foam

278002172

$5.33

PF

Seal

415128501

$1.73

PF

Relay, 30 AMP

515176774

$18.63

PF

Relay, 50 AMP

515176775

$13.45

PF

FUSE DECAL - Call your local BRP dealership

515176885

Unavailable

PF

Female Terminal

515177009

$4.96

PF

Female Terminal

515177012

$4.96

PF

Fuse Box Base Ass´y

415129856

$47.73

PF

Little Fuse, 5 Amperes

710000742

$8.31

PF

Little Fuse, 10 Amperes

710000744

$8.31

PF

Little Fuse, 15 Ampere

710000745

$7.78

PF

Little Fuse, 20 Amperes

710000746

$7.78

PF

Fuse Puller

710000781

$8.29

PF

Cap

710000840

$5.33

PF

Fuse Cover

710001026

$20.12

PI

Female Terminal

515175231

$4.00

PI

Female Housing, 2 Circuits

515175658

$14.90

RE

Female Terminal

710000877

$7.25

RE

Female Housing, 3 Circuits

710000879

$24.60

RE

Seal

710000881

$16.39

RE

Cap

710000882

$10.55

RM

Female Terminal

515175231

$4.00

RM

Not Available As Spare Part - Friction Washer

Unavailable

SA

Female Terminal

515175231

$4.00

SA

Female Housing, 3 Circuits

515175495

$14.90

SB

Male Terminal

515176164

$6.24

SB

Not Available As Spare Part - Friction Washer

Unavailable

SB

Housing

710000568

$10.51

SC

Protector Cap | XT

515175919

$16.39

SD

Female Terminal

409010100

$5.30

SD

Female Terminal Housing, 1 Circuit

409010400

$7.25

SM

Wire Seal

278001013

$3.12

SM

Female Terminal

278001014

$3.12

SM

Female Housing, 3 Circuits

409209600

$34.30

VC

Female Terminal

515175231

$4.00

VC

Female Housing, 2 Circuits

515175658

$14.90
