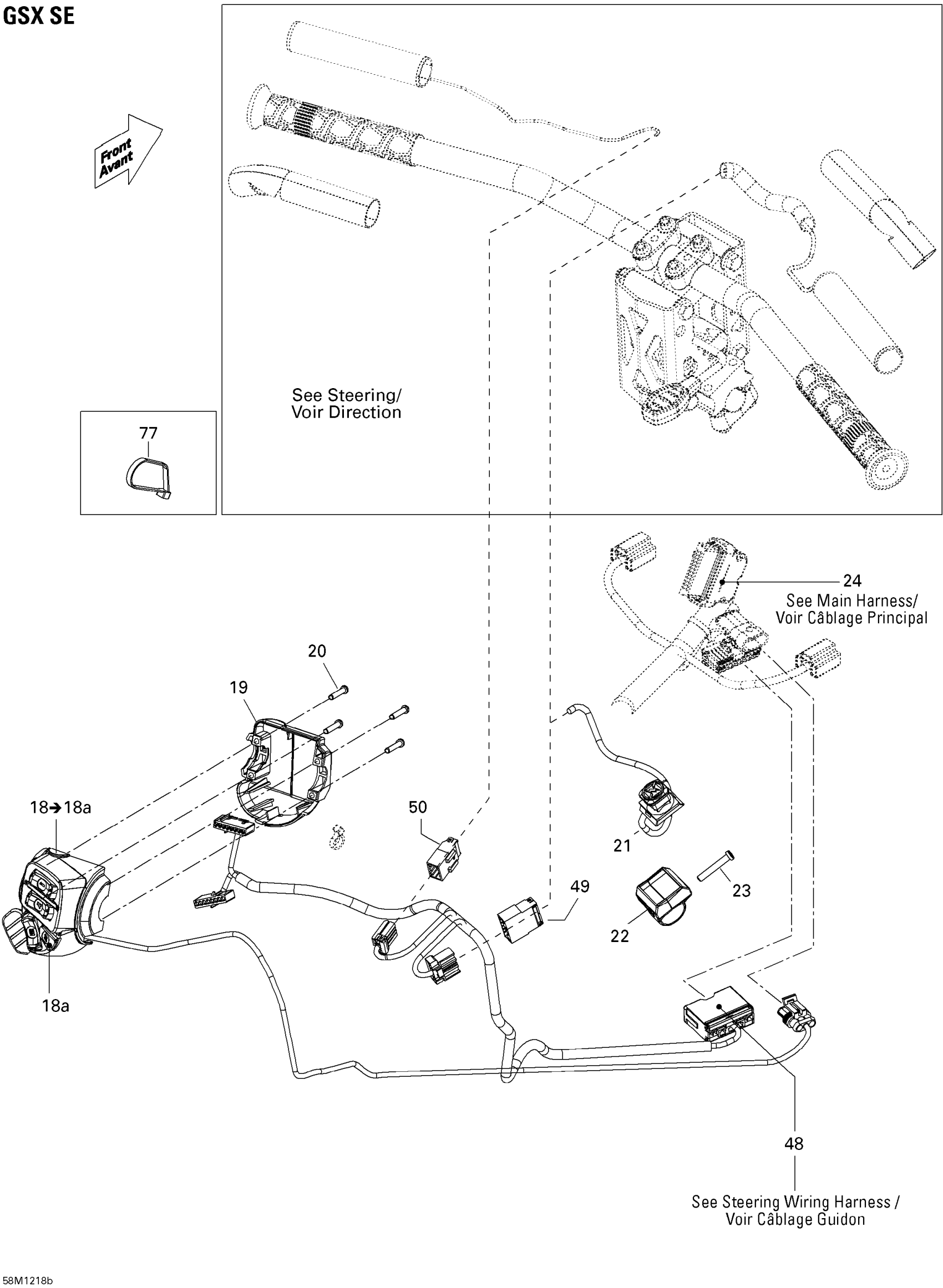

Ski-Doo GSX LE & SE 1200 XR, 2012 10- Electrical Accessories, Steering GSX SE Diagram

LH Switch Housing | Includes 1 to 2

515177509

$264.99

Start/RER Button

515176088

$20.99

Switch Housing Plate

515175926

$20.99

Torx Screw #8-18

250000263

$1.04

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

Kill Switch Support

515176825

$10.49

Torx Screw #8-18

250000263

$1.04

WIRING HARNESS MAIN - Call your local BRP dealership

515177107

Unavailable

STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership

515176868

Unavailable

Male Terminal Housing, 6 Circuits

515175662

$8.79

Male Terminal Housing, 4 Circuits

515175846

$8.79

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

Tie Wrap 142 mm

293750002

$1.25

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie-Rap 180 mm

414115200

$0.11

Tie-Rap 206 mm

293750027

$2.89
