Description

Price

1

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3

Brace Ass'y | Includes 200 to 200a

518327392

$199.99

4

Vibration Damper

512061516

$61.99

5

Conical Spring Washer M8

234281474

$1.48

6

Pop Rivet 3/16”

390407200

$0.70

7

CROSS MEMBER S MODULE - Call your local BRP dealership

518328325

Unavailable

8

Front Suspension Support

518327487

$289.99

9

Hex. Flange Screw M6 X 20

207662044

$2.00

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Front Member

518326970

$299.99

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

Hex. Flange Screw M6 X 20

207662044

$2.00

14

Hex. Flange Elastic Nut M8

233281414

$1.47

15

Hex. Flange Screw M6 X 16

210261650

$1.67

16

Hex. Flange Screw M6 X 25

207662544

$0.64

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Monobolt Rivet, 4.8 mm

293150191

$0.99

19

Monobolt Rivet 6.4

293150182

$3.09

20

Hex. Flange Screw M6 X 16

207661644

$0.74

21

Avex Rivet

390909100

$0.30

22

Driven Pulley Support This part replaces 518327133.

518327460

$109.99

23

Hex. Flange Elastic Nut M8

233281414

$1.47

24

Hex. Flange Screw M8 X 25, Nylon

250000351

$2.11

25

Hex. Flange Screw M6 X 20

207662044

$2.00

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

27

Rear Member

518326559

$264.99

28

Hex. Flange Elastic Nut M8

233281414

$1.47

29

Upper Lateral Column Support

518325114

$22.49

30

Hex. Flange Screw M6 X 20

207662044

$2.00

31

Elastic Flange Nut M6 X 1.0

233261416

$2.11

32

Center Column Support

518326657

$19.99

33

Hex. Flange Screw M6 X 25

207662544

$0.64

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

36

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

37

Not Available As Spare Parts

XXX

Unavailable

39

Black, Dart 8 mm

293730047

$2.21

40

HEAT SHIELD - Call your local BRP dealership

518325418

Unavailable

41

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$18.49

42

Washer

517124300

$0.19

43

Pop Rivet 3/16”

293150108

$1.19

35a

Black Rear Bumper 137"

518325481

$148.99

35b

Not Available As Spare Parts

XXX

Unavailable

38a

BLACK CAP - Call your local BRP dealership | Except Package Iron Dog

520000840

$9.99

38b

Not Available As Spare Parts

XXX

Unavailable

38c

Not Available As Spare Parts

XXX

Unavailable

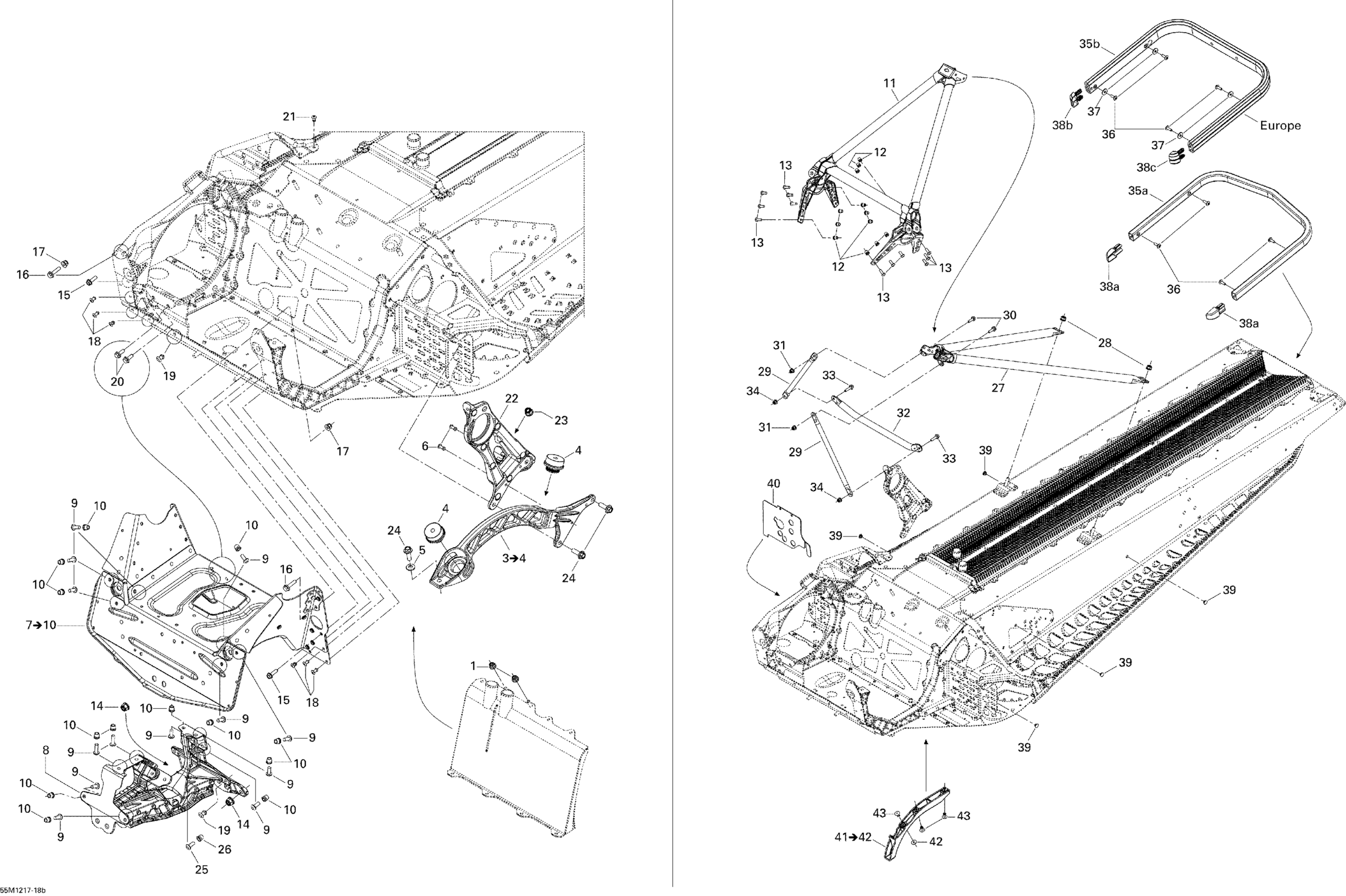

Ski-Doo GSX LE & SE 1200 XR, 2012 09- Frame and Components SE 137" Diagram

Hex. Flange Elastic Nut M6 x 1.0

Brace Ass'y | Includes 200 to 200a

Vibration Damper

Conical Spring Washer M8

Pop Rivet 3/16”

CROSS MEMBER S MODULE - Call your local BRP dealership

Front Suspension Support

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Front Member

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M8

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Monobolt Rivet, 4.8 mm

Monobolt Rivet 6.4

Hex. Flange Screw M6 X 16

Avex Rivet

Driven Pulley Support This part replaces 518327133.

Hex. Flange Elastic Nut M8

Hex. Flange Screw M8 X 25, Nylon

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Rear Member

Hex. Flange Elastic Nut M8

Upper Lateral Column Support

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Center Column Support

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Torx Screw M6 X 1.0 X 18, Scotch Grip

Not Available As Spare Parts

Black, Dart 8 mm

HEAT SHIELD - Call your local BRP dealership

Front Tunnel Protector | Includes 1700 to 1700a

Washer

Pop Rivet 3/16”

Black Rear Bumper 137"

Not Available As Spare Parts

BLACK CAP - Call your local BRP dealership | Except Package Iron Dog

Not Available As Spare Parts

Not Available As Spare Parts
