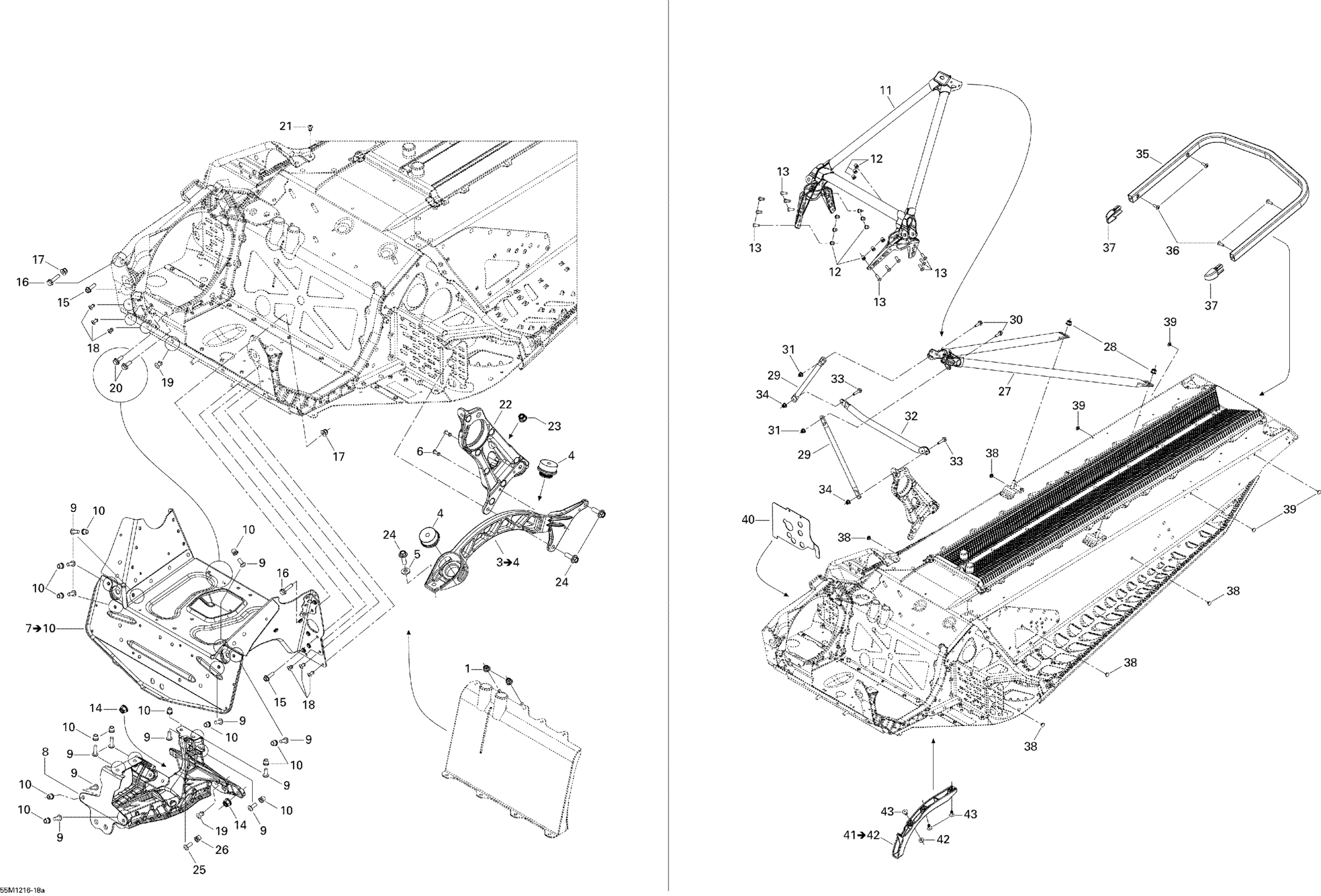

Ski-Doo GSX LE & SE 1200 XR, 2012 Frame and Components LE 120" Diagram

#

Description
Price

1

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

3

Brace Ass'y | Includes 200 to 200a

518327392

$179.82

4

Vibration Damper

512061516

$55.94

5

Conical Spring Washer M8

234281474

$1.43

6

Pop Rivet 3/16”

390407200

$0.64

7

Cross Member S Module | Includes 300a to 300b

518328320

$445.49

8

Front Suspension Support

518327487

$259.67

9

Hex. Flange Screw M6 X 20

207662044

$1.91

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

11

Front Member

518326970

$267.88

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

13

Hex. Flange Screw M6 X 20

207662044

$1.91

14

Hex. Flange Elastic Nut M8

233281414

$1.31

15

Hex. Flange Screw M6 X 16

210261650

$1.40

16

Hex. Flange Screw M6 X 25

207662544

$0.61

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

18

Monobolt Rivet, 4.8 mm

293150191

$0.93

19

Monobolt Rivet 6.4

293150182

$2.82

20

Hex. Flange Screw M6 X 16

207661644

$0.70

21

Avex Rivet

390909100

$0.28

22

Driven Pulley Support This part replaces 518327133.

518327460

$99.22

23

Hex. Flange Elastic Nut M8

233281414

$1.31

24

Hex. Flange Screw M8 X 25, Nylon

250000351

$2.00

25

Hex. Flange Screw M6 X 20

207662044

$1.91

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

27

Rear Member

518326559

$237.28

28

Hex. Flange Elastic Nut M8

233281414

$1.31

29

Upper Lateral Column Support

518325114

$20.12

30

Hex. Flange Screw M6 X 20

207662044

$1.91

31

Elastic Flange Nut M6 X 1.0

233261416

$2.00

32

Center Column Support

518326657

$17.88

33

Hex. Flange Screw M6 X 25

207662544

$0.61

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

35

Clear Rear Bumper

518324980

$94.00

36

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

37

Full Moon Cap

520000567

$8.36

38

Full Moon Dart 8 mm

293730041

$2.06

39

Black Dart 5 mm

293730053

$4.28

40

HEAT SHIELD - Call your local BRP dealership

518325418

Unavailable

41

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$17.13

42

Washer

517124300

$0.18

43

Pop Rivet 3/16”

293150108

$1.19
