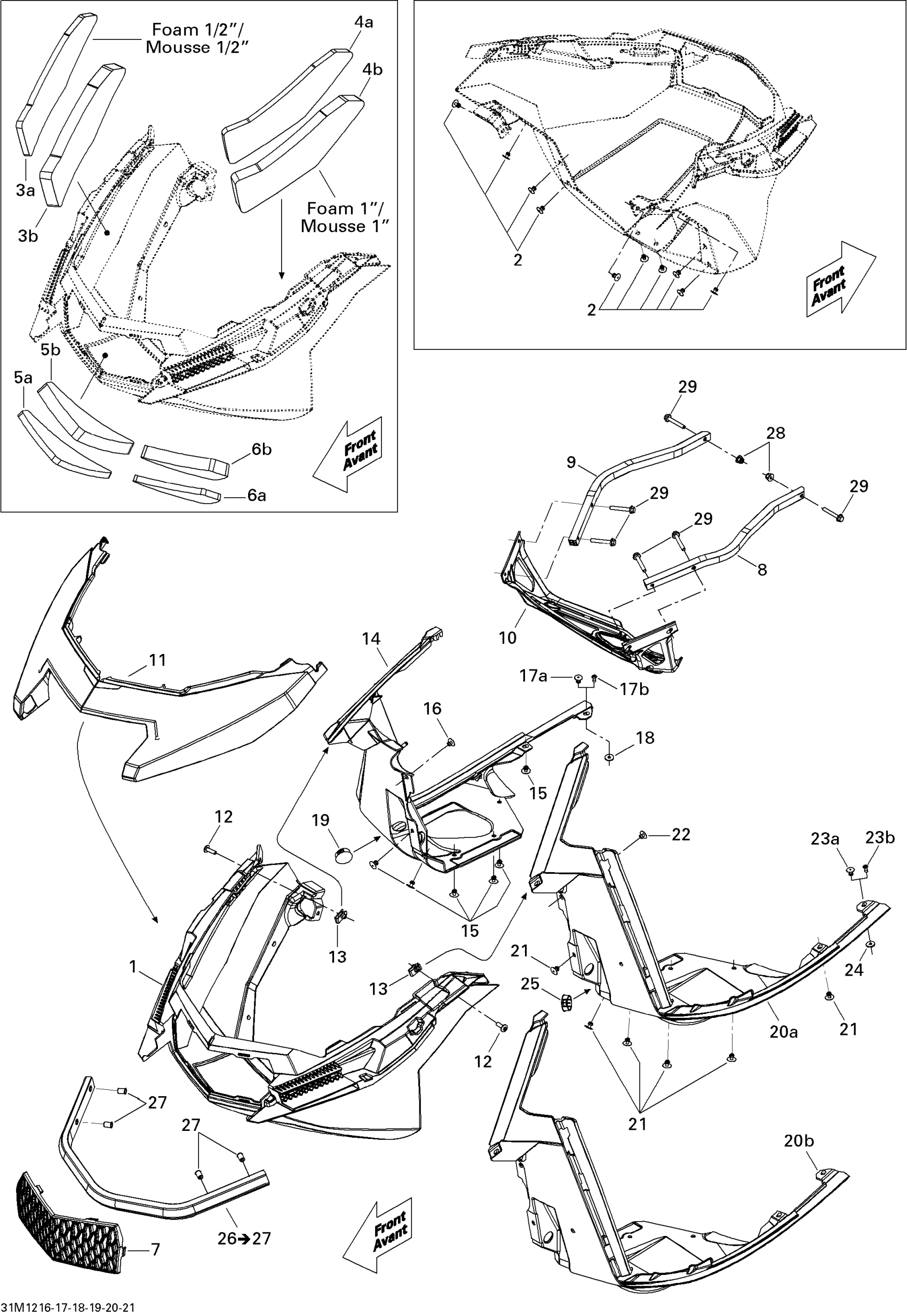

Ski-Doo GSX LE & SE 1200 XR, 2012 09- Bottom Pan Diagram

#

Description
Price

1

Deep Black Front Bottom Pan

502006873

$114.99

2

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3a

Not Available As Spare Parts

XXX

Unavailable

3b

RH UPPER HULL FOAM - Call your local BRP dealership

502007217

Unavailable

4a

Not Available As Spare Parts

XXX

Unavailable

4b

LH UPPER HULL FOAM - Call your local BRP dealership

502007219

Unavailable

5a

Not Available As Spare Parts

XXX

Unavailable

5b

RH MIDDLE HULL FOAM - Call your local BRP dealership

502007220

$18.49

6a

Not Available As Spare Parts

XXX

Unavailable

6b

LH MIDDLE HULL FOAM - Call your local BRP dealership

502007223

Unavailable

7

Botton Pan Grille

502006887

$27.99

8

LH Support

502007357

$31.99

9

RH Support

502006926

$28.99

10

Bracket

502006938

$21.99

11

Black Bottom Pan Cap

502006898

$98.99

12

Torx Screw M6 X 20

250000722

$1.68

13

Panel Nut M6 X 1.0

250100198

$2.11

14

RH BOTTOM PAN - Call your local BRP dealership

502006877

Unavailable

15

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

16

Pop Rivet 3/16"

293150103

$0.55

17a

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

17b

Pop Rivet 3/16"

390402300

$0.75

18

Washer

517124300

$0.19

19

Black, Nylon Cap

414916600

$4.69

20a

LH Bottom Pan

502006878

$67.99

20b

Not Available As Spare Parts

XXX

Unavailable

21

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

22

Pop Rivet 3/16"

293150103

$0.55

23a

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

23b

Pop Rivet 3/16"

390402300

$0.75

24

Washer

517124300

$0.19

25

Black, Nylon Cap

414916600

$4.69

26

Black Bumper

502006939

$158.99

27

Insert

293450275

$12.99

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

Hex. Flange Screw M6 X 40

207664044

$2.22
