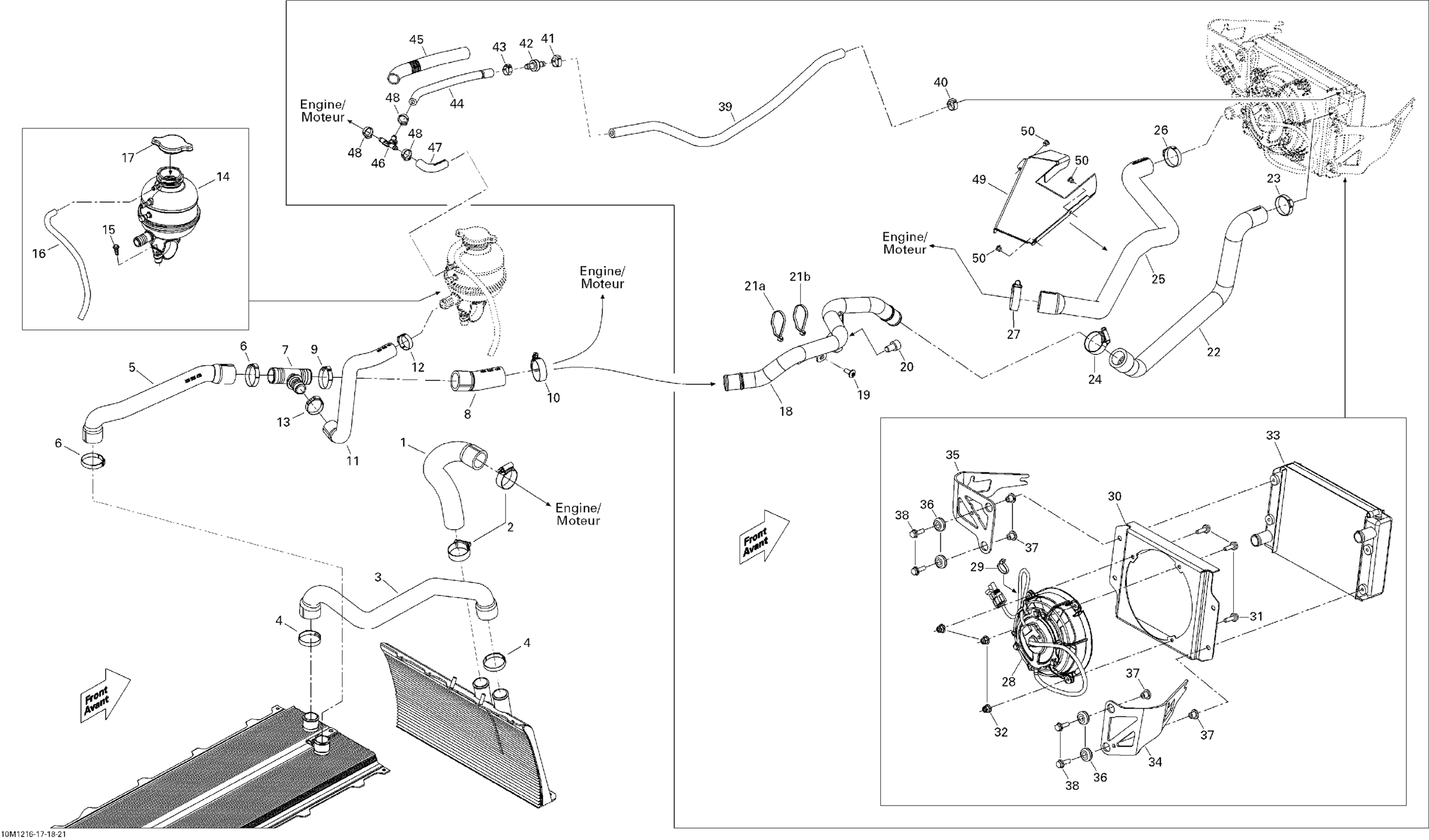

Ski-Doo GSX LE & SE 1200 XR, 2012 01- Cooling System SE Diagram

#

Description
Price

1

Outlet Hose

509000440

$19.99

2

Aba Gear Clamp, 26-38 MM

509000443

$12.72

3

RADIATOR HOSE - Call your local BRP dealership

509000370

Unavailable

4

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

5

Radiator Hose

509000439

$24.49

6

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

7

T-Fitting

509000372

$10.33

8

Radiator Hose

509000438

$19.99

9

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

10

Aba Gear Clamp, 26-38 MM

509000443

$12.72

11

Hose

509000441

$24.99

12

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

13

Crimp Clamp

293650099

$4.29

14

Coolant Tank

509000421

$92.99

15

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

16

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

17

Radiator Pressure Cap

509000180

$20.49

18

WATER PIPE - Call your local BRP dealership

509000825

Unavailable

19

Torx Screw M6 X 16

250000223

$2.11

20

Socket Screw M10 X 16

205501644

$4.29

21a

Tie-Rap 180 mm

414115200

$0.11

21b

Tie-Rap 180 mm

414115200

$0.11

22

INLET HOSE - Call your local BRP dealership

509000832

Unavailable

23

Oetiker Gear Clamp

293650165

$5.39

24

Aba Gear Clamp, 26-38 MM

509000443

$12.72

25

OUTLET HOSE - Call your local BRP dealership

509000753

Unavailable

26

Oetiker Gear Clamp

293650165

$5.39

27

Aba Gear Clamp, 26-38 MM

509000443

$12.72

28

Fan

709200573

$259.99

29

Tie-Rap 180 mm

414115200

$0.11

30

Fan Support

509000714

$52.99

31

Hex. Flange Screw M6 X 20

207662044

$2.00

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

33

Radiator

509000756

$179.99

34

RH RADIATOR SUPPORT - Call your local BRP dealership

509000935

Unavailable

35

LH RADIATOR SUPPORT - Call your local BRP dealership

509000936

Unavailable

36

Grommet

709000582

$4.69

37

Bushing

293900100

$7.65

38

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

39

Was 509000407 Hose 8 mm

219704420

$50.99

40

Oetiker Clamp

293650140

$2.69

41

Crimp Clamp

293650053

$3.09

42

Check Valve

509000153

$19.99

43

Oetiker Clamp

293650125

$3.29

44

Hose-formed

509001069

$15.28

45

Tubing 16 Mm 1000Mm Long

219704408

$7.49

46

Y-Fitting

293710140

$8.11

47

Hose

509001070

$13.16

48

Oetiker Clamp

293650046

$2.89

49

HEAT DEFLECTOR - Call your local BRP dealership This part replaces 509000751.

509000839

Unavailable

50

Avex Rivet

390909200

$0.30
