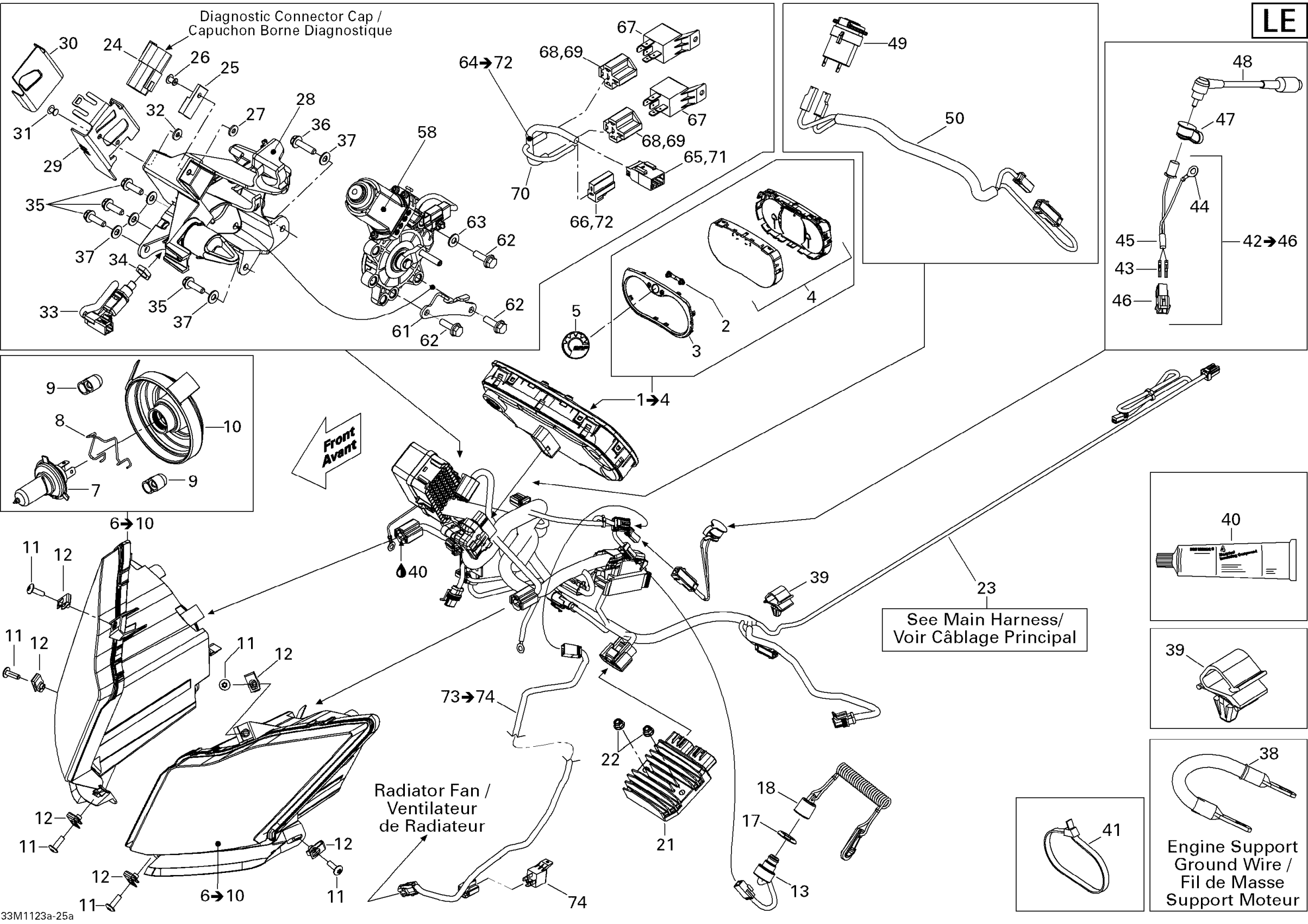

Ski-Doo GSX LE & SE 1200 XR, 2011 Electrical System LE Diagram

#

Description
Price

1

Speedometer | Includes 10 to 10c

515177910

$596.99

2

Speedometer Button | XTP

415129355

$13.52

3

Gauge Ring

415129348

$11.36

4

Lens | XTP

415129349

$22.36

5

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

6

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$135.79

6

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$135.79

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

8

BULB HOLDER - Call your local BRP dealership

515176493

Unavailable

9

Cap

515176498

$11.82

10

Rubber Cap Protector

219800280

$17.13

11

Torx Screw M6 X 20

250000722

$1.54

12

Panel Nut M6 X 1.0

250100198

$1.99

13

DESS Switch

515177249

$102.96

17

Safety Nut (DESS Switch)

278002963

$3.12

18

DESS

515178284

$79.07

21

Voltage Regulator | Package-DPS, Model-Europe

710005569

$98.48

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

23

MAIN HARNESS - Call your local BRP dealership | Includes 1 to 257

515176994

Unavailable

24

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

25

Clip

270000141

$9.57

26

Pop Rivet 3/16"

390402200

$0.30

27

Flat Washer M5

234051410

$0.51

28

PLATE - Call your local BRP dealership

515177044

Unavailable

29

Fuse Support - Call Your Local BRP Dealership

515177549

Unavailable

30

PROTECTOR - Call your local BRP dealership

515176637

Unavailable

31

Pop Rivet 3/16"

390402200

$0.30

32

Flat Washer M5

234051410

$0.51

33

Switch Ass'y

515176472

$69.37

34

Brass Nut

250000373

Unavailable

35

Hex. Flange Screw M6 X 20

210262040

$2.00

36

Hex. Flange Screw M6 X 20

210262040

$2.00

37

Flat Washer

250200039

$0.70

38

Ground Wire

515177289

$24.60

39

Tie Rap Mount (screwable)

515176795

$4.96

40

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

41

Tie Wrap 94 mm | 4X4

293750001

$0.96

41

Tie Wrap 142 mm

293750002

$1.01

41

Tie-Rap 180 mm

414115200

$0.10

41

Tie-Rap 206 mm

293750027

$2.61

41

Tie Wrap 368 mm

293750008

$0.97

42

Visor Harness

515177837

$31.31

43

Male Terminal

515175232

$1.45

44

OPEN BARREL - Call your local BRP dealership

515175172

Unavailable

45

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$18.63

46

Male Terminal Housing, 2 Circuits

515175654

$7.25

47

Cap

572103300

$9.36

48

Extension

515175851

$10.55

49

DC Outlet

710001248

$35.79

50

Harness Accessories

515177188

$34.30

58

Electrical Motor Ass'y

515178574

$238.03

61

PLATE - Call your local BRP dealership

515177039

Unavailable

62

Hex. Flange Screw M6 X 20

207662044

$1.91

63

Flat Washer

224061121

$0.51

64

REVERSE CABLE - Call your local BRP dealership | Includes 3130A to 3130K

515176760

Unavailable

65

Male Terminal

515175232

$1.45

66

Female Terminal

515175282

$6.24

67

Relay | DS 650 X

710010053

Unavailable

68

Female Housing, 5 Circuits

409209900

$8.72

69

Female Terminal

561503100

Unavailable

70

Tubing 10 MM 1000MM Long

219704407

$2.52

71

Male Terminal Housing, 4 Circuits

515175846

$8.31

72

Female Terminal Housing

515176550

$6.24

73

Not Available As Spare Parts

XXX

Unavailable

74

Not Available As Spare Parts

XXX

Unavailable
