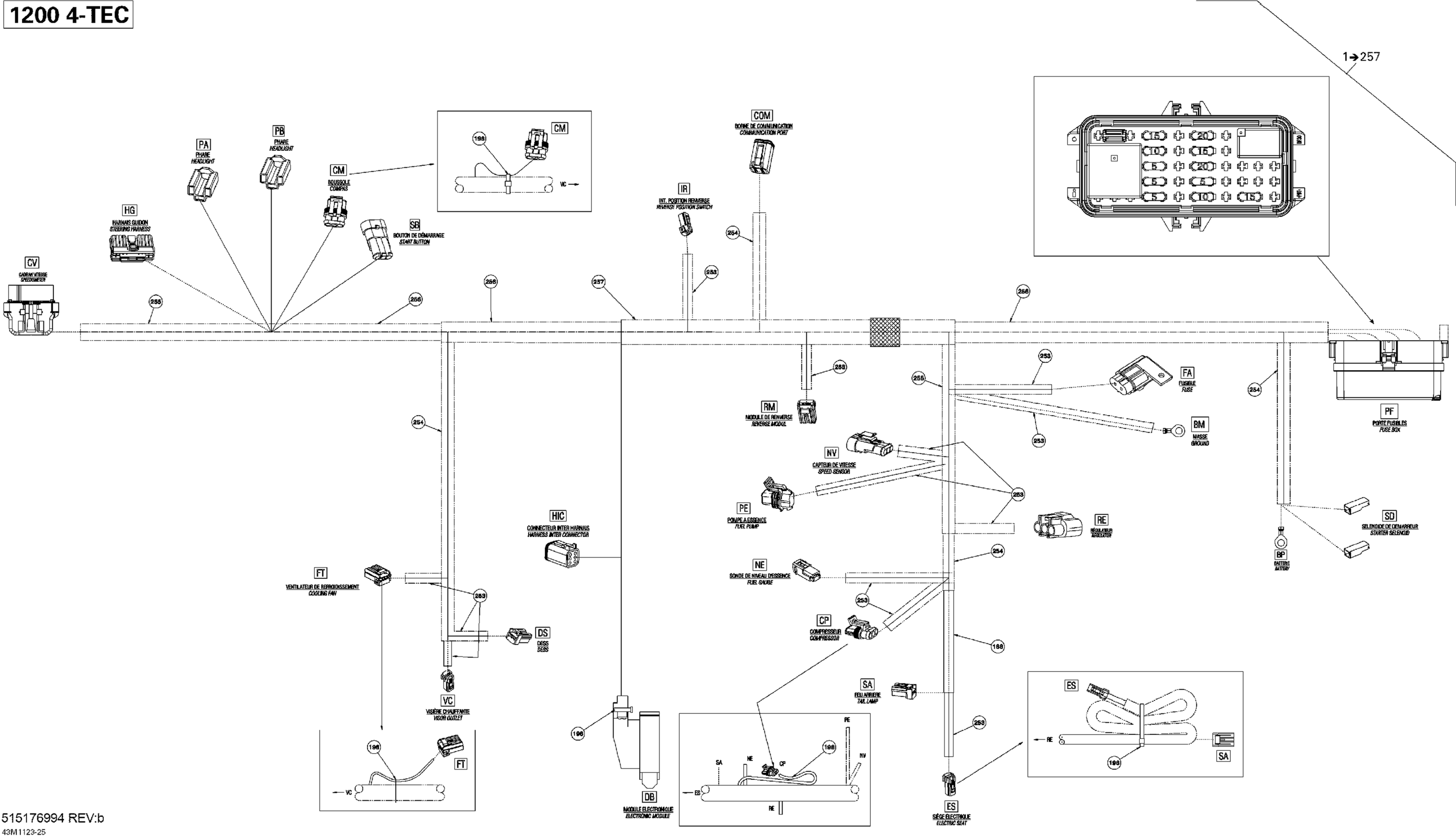

Ski-Doo GSX LE & SE 1200 XR, 2011 Electrical Harness Diagram

#

Description
Price

1

MAIN HARNESS - Call your local BRP dealership | Includes 1 to 257

515176994

Unavailable

BM

Open Barrel

278000992

$2.06

BP

Open Barrel

278000992

$2.06

CM

Female Housing, 3 Circuits

409209600

$34.30

CM

Wire Seal

515176621

$6.79

CM

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

CM

Tie Wrap 142 mm

293750002

$1.01

COM

Male Housing, 6 Circuits

515175673

$12.66

COM

Male Wedge, 6 Circuits

515175678

$4.96

COM

Sealing Cap

293000052

$2.93

COM

Female Terminal

278000632

$1.94

CP

Female Housing, 3 Circuits

409209600

$34.30

CP

Wire Seal

278001013

$3.12

CP

Female Terminal

278001014

$3.12

CP

Tie Wrap 142 mm

293750002

$1.01

CV

Female Housing, 24 Circuits

515175801

$8.73

CV

Retainer Block

515175802

$10.34

CV

Plug

515175812

$1.96

CV

Female Housing

710000399

$13.60

CV

Wire Seal

515175803

$2.76

CV

Female Terminal

515175806

$0.93

CV

Female Terminal

710001131

$6.79

DB

COVER - Call your local BRP dealership

515175885

Unavailable

DB

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

DB

LOCK - Call your local BRP dealership

515175884

Unavailable

DB

Latch

515175883

$7.25

DB

SEAL - Call your local BRP dealership

515175886

Unavailable

DB

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

DB

Tie Wrap 142 mm

293750002

$1.01

DS

Female Housing, 3 Circuits

515175495

$14.90

DS

Female Terminal

515175231

$4.00

ES

Female Housing, 2 Circuits

515175658

$14.90

ES

Female Terminal

515175231

$4.00

ES

Tie Wrap 142 mm

293750002

$1.01

FA

Fuse Holder Cap

278001326

$5.85

FA

Cushion

278000805

$3.12

FA

Fuse, 30 Amperes

410917200

$3.12

FA

Fuse Holder

278001325

$8.31

FA

Female Terminal

710000113

$5.85

FT

Female Terminal Housing, 4 Circuits

515175845

$7.78

FT

Female Terminal

515175231

$4.00

FT

Tie Wrap 142 mm

293750002

$1.01

HG

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

Unavailable

HG

Female Terminal

515175282

$6.24

HG

Female Terminal

515175231

$4.00

HIC

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

HIC

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

HIC

Sealing Cap

293000052

$2.93

HIC

Female Terminal

278000632

$1.94

IR

Female Housing, 2 Circuits

515175658

$14.90

IR

Female Terminal

515175231

$4.00

NE

Male Terminal Housing, 2 Circuits

515175654

$7.25

NE

Male Terminal

515175232

$1.45

NV

Clip

710000992

$3.88

NV

Housing

710000568

$10.51

NV

Wire Seal

515176621

$6.79

NV

Male Terminal

515176164

$6.24

PA

Female Housing

515176908

$11.69

PA

Terminal

515176909

$2.06

PB

Female Housing

515176908

$11.69

PB

Terminal

515176909

$2.06

PE

Housing

710001132

$9.31

PE

Lock

710001133

$4.00

PE

Plug

409013700

$4.28

PE

Seal

278001482

$2.93

PE

Female Terminal

278001481

$2.93

PF

Fuse Puller

710000781

$8.29

PF

Fuse Cover

710001026

$20.12

PF

FUSE DECAL - Call your local BRP dealership

515176885

Unavailable

PF

Foam

278002172

$5.33

PF

Fuse Box Base Ass´y

415129856

$47.73

PF

Little Fuse, 5 Amperes

710000742

$8.31

PF

Little Fuse, 10 Amperes

710000744

$8.31

PF

Little Fuse, 15 Ampere

710000745

$7.78

PF

Little Fuse, 20 Amperes

710000746

$7.78

PF

Cap

710000840

$5.33

PF

Relay, 30 AMP

515176774

$18.63

PF

Relay, 50 AMP

515176775

$13.45

PF

Seal

415128501

$1.73

PF

Wire Seal

278000999

$2.93

PF

Female Terminal

515177009

$4.96

PF

Female Terminal

515177012

$4.96

RE

Female Housing, 3 Circuits

710000879

$24.60

RE

Cap

710000882

$10.55

RE

Seal

710000881

$16.39

RE

Female Terminal

710000877

$7.25

RM

Female Terminal Housing, 4 Circuits

515175845

$7.78

RM

Female Terminal

515175231

$4.00

SA

Female Housing, 3 Circuits

515175495

$14.90

SA

Female Terminal

515175231

$4.00

SB

Housing

710000568

$10.51

SB

Wire Seal

515176621

$6.79

SB

Male Terminal

515176164

$6.24

SD

Female Terminal Housing, 1 Circuit

409010400

$7.25

SD

Female Terminal

409010100

$5.30

VC

Female Housing, 2 Circuits

515175658

$14.90

VC

Female Terminal

515175231

$4.00

188

Tubing 12 mm

409902000

Unavailable

196

Tie Wrap 142 mm

293750002

$1.01

253

Tubing 6 Mm 3000Mm Long

219704425

$12.75

254

Was 409901700 Tubing (9 mm)

219704399

$77.58

255

Was 409901800 Tubing (13 mm)

219704400

$10.79

256

Tubing 16 Mm 1000Mm Long

219704408

$7.15

257

Was 409901600 Tubing 19mm

219704398

$87.28
