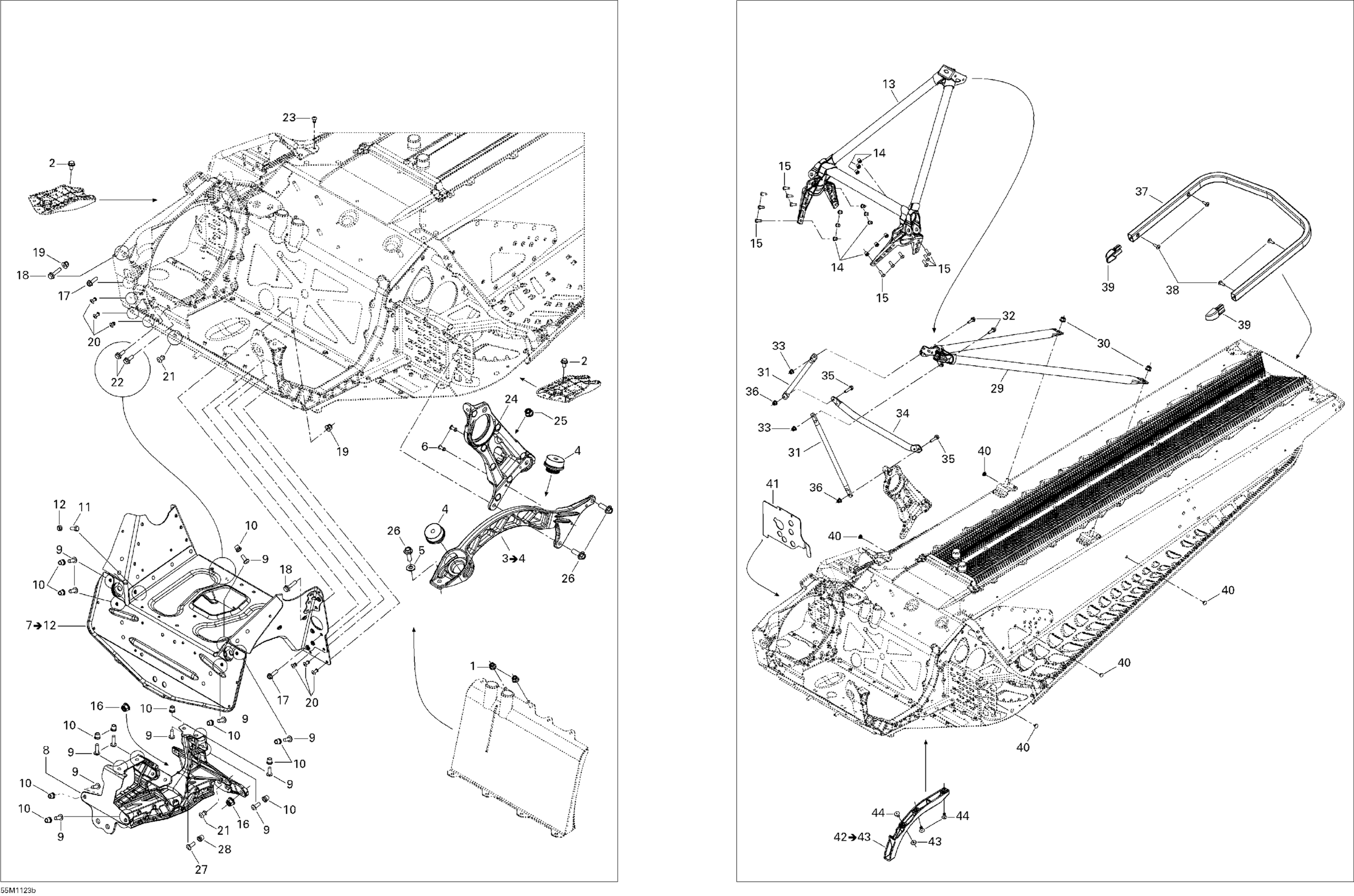

Ski-Doo GSX LE & SE 1200 XR, 2011 Frame and Components SE Diagram

#

Description
Price

1

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

2

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

3

Brace Ass'y | Includes 200 to 200a

518327392

$185.35

4

Vibration Damper

512061516

$57.66

5

Conical Spring Washer M8

234281474

$1.25

6

Pop Rivet 3/16”

390407200

$0.66

7

CROSS MEMBER S MODULE - Call your local BRP dealership

518328325

Unavailable

8

Front Suspension Support

518327487

$267.66

9

Hex. Flange Screw M6 X 20

207662044

$1.66

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

11

Hex. Screw M6 X 14

207161444

$0.48

12

Hex. Elastic Stop Nut M6

232561600

$0.92

13

Front Member

518326970

$276.12

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

15

Hex. Flange Screw M6 X 20

207662044

$1.66

16

Hex. Flange Elastic Nut M8

233281414

$1.14

17

Hex. Flange Screw M6 X 16

210261650

$1.22

18

Hex. Flange Screw M6 X 25

207662544

$0.53

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

20

Monobolt Rivet, 4.8 mm

293150191

$0.95

21

Monobolt Rivet 6.4

293150182

$2.91

22

Hex. Flange Screw M6 X 16

207661644

$0.61

23

Avex Rivet

390909100

$0.29

24

Driven Pulley Support This part replaces 518327133.

518327460

$102.28

25

Hex. Flange Elastic Nut M8

233281414

$1.14

26

Hex. Flange Screw M8 X 25, Nylon

250000351

$1.74

27

Hex. Flange Screw M6 X 20

207662044

$1.66

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

29

Rear Member

518326559

$244.58

30

Hex. Flange Elastic Nut M8

233281414

$1.14

31

Upper Lateral Column Support

518325114

$20.74

32

Hex. Flange Screw M6 X 20

207662044

$1.66

33

Elastic Flange Nut M6 X 1.0

233261416

$1.74

34

Center Column Support

518326657

$18.43

35

Hex. Flange Screw M6 X 25

207662544

$0.53

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

37

Black Rear Bumper 137"

518325481

$154.99

38

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

39

BLACK CAP - Call your local BRP dealership | Except Package Iron Dog

520000840

$7.68

40

Black, Dart 8 mm

293730047

$2.14

41

HEAT SHIELD - Call your local BRP dealership

518325418

Unavailable

42

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$17.66

43

Washer

517124300

$0.16

44

Pop Rivet 3/16”

293150108

$1.23
