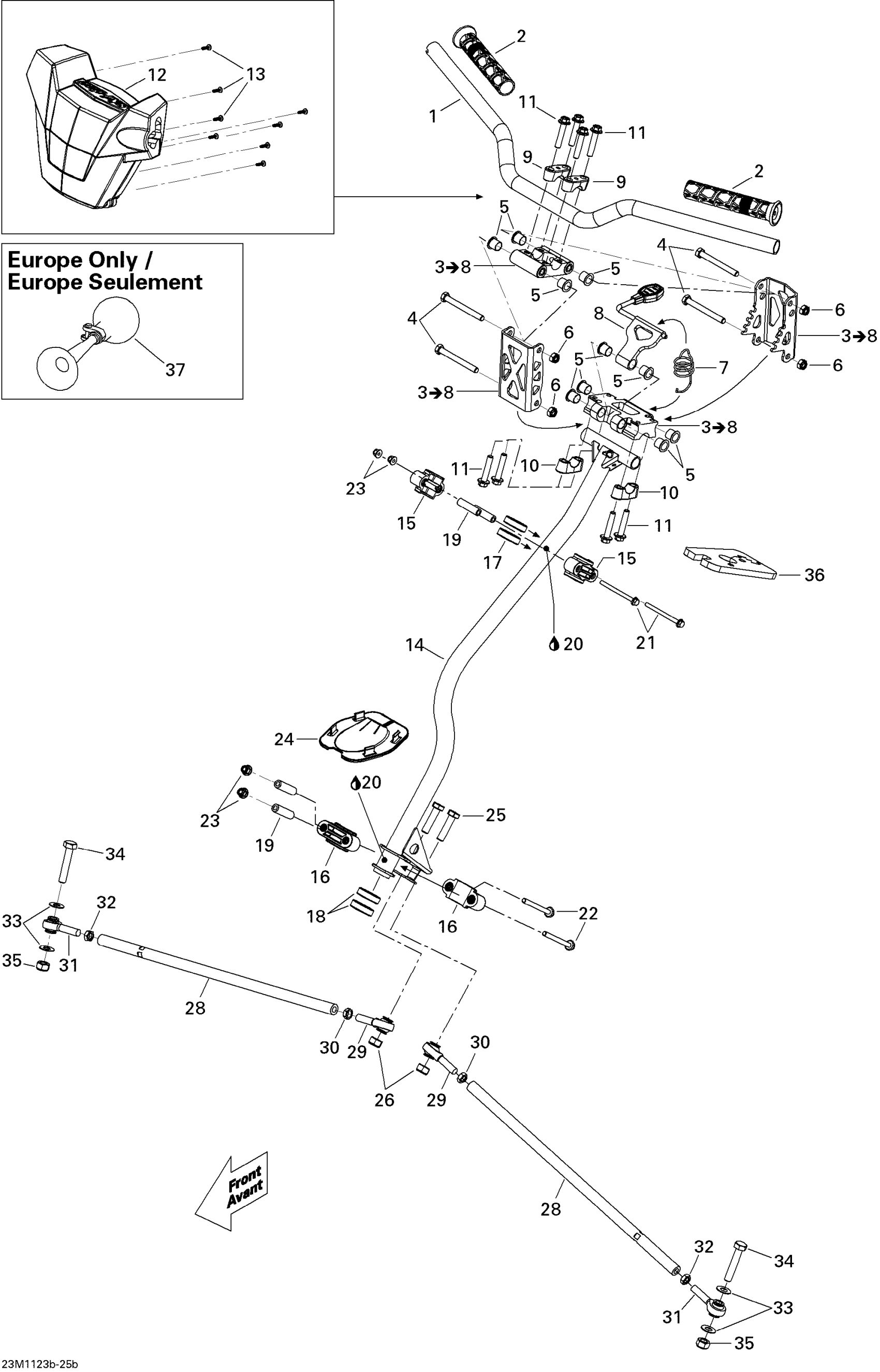

Ski-Doo GSX LE & SE 1200 XR, 2011 Steering SE Diagram

#

Description
Price

1

HANDLE BAR - Call your local BRP dealership

506152304

Unavailable

2

Handle Grip

506152424

$13.78

3

ADJUSTABLE HANDLEBAR - Call your local BRP dealership

506152197

Unavailable

4

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

5

Cushion

506152520

$12.37

6

Hex. Flange Elastic Nut M8

233281414

$1.14

7

Spring | Package SE

506152184

$8.74

8

HANDLE ASM - Call your local BRP dealership

506152411

Unavailable

9

Steering Support | Includes 40 to 40a

506152751

$10.09

10

Steering Support | Includes 40 to 40a

506152751

$10.09

11

Hex. Flange Screw M8 X 40

250000352

$3.26

12

Steering Pad (Adjustable)

506152330

$96.12

13

Screw PT Type K-50 X 16

250000959

$1.74

14

Steering Column

506152964

$189.20

15

Upper Half-Housing

506152508

$7.40

16

Lower Half-Housing

506152217

$5.57

17

Upper Anti-Vibration Gasket

506152509

$4.52

18

Lower Vibration Ring

506152518

$4.52

19

Housing Bushing

506152297

$10.23

20

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

21

Hex. Flange Screw M6 X 70

207667056

$3.61

22

Hex. Flange Screw M6 X 70

207667044

$0.70

23

Elastic Flange Nut M6 X 1.0

233261416

$1.74

24

Plate

506152163

$10.23

25

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

26

Elastic Stop Nut M10

232500416

$1.56

28

Tie-Rod Ass'y

506152496

$59.97

29

LH Thread Ball Joint

506152081

$39.97

30

LH Threaded Hex. Jam Nut M10

250100016

$0.72

31

RH Threaded Ball Joint

506152019

$39.97

32

RH Threaded Hex. Jam Nut M10

732610010

$0.72

33

Washer

506152194

$4.42

34

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

35

Elastic Stop Nut M10

232500416

$1.56

36

Bushing

506152521

$13.60

37

Not Available As Spare Parts

XXX

Unavailable
