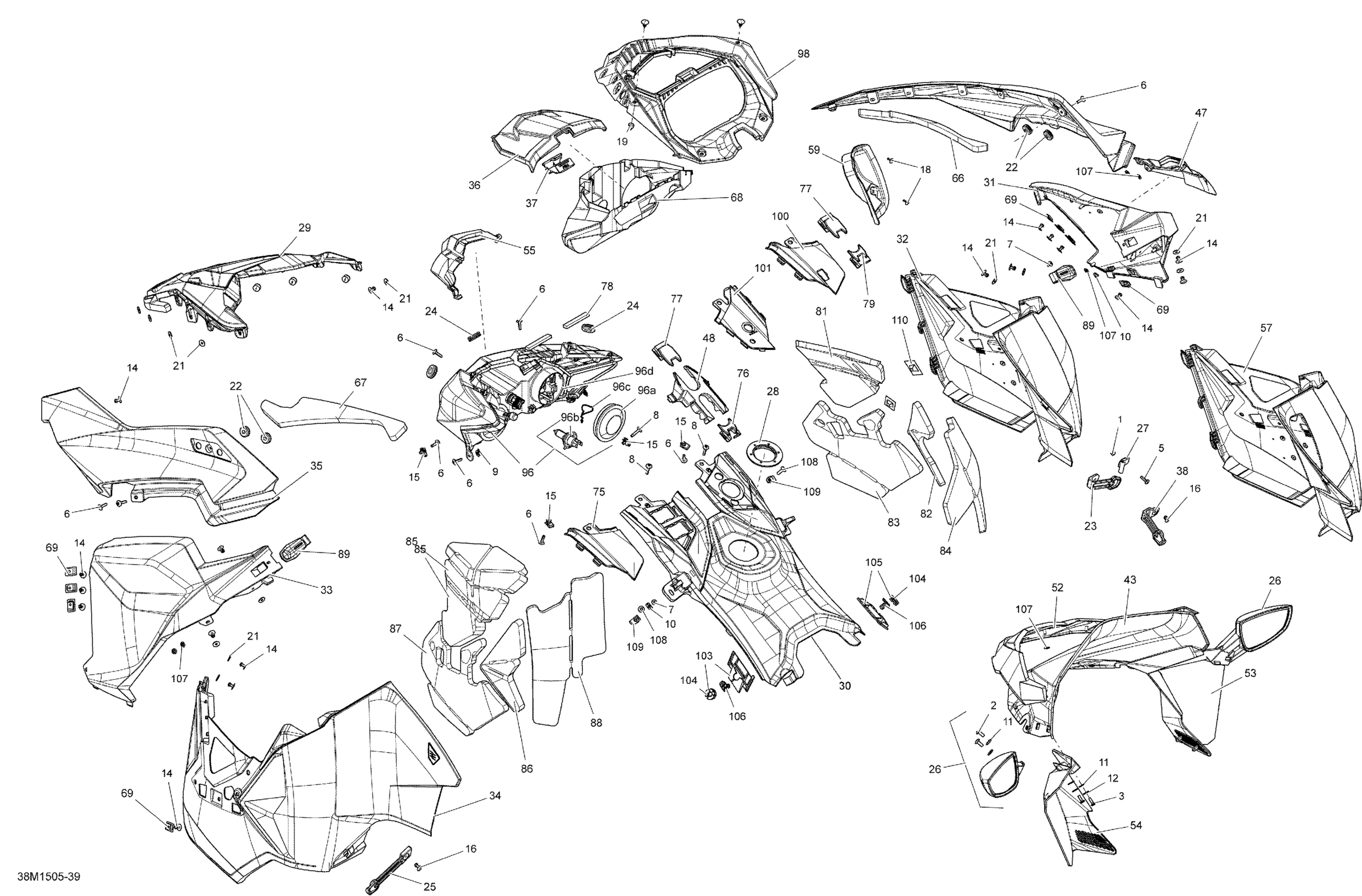

Ski-Doo GSX LE 900ACE XS120, 2015 Hood _38M1539 Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

Torx Truss Screw M6 X 16

250000721

$1.60

3

Torx Screw K50 X 16

250000720

$1.60

5

Not Available As Spare Parts

XXX

Unavailable

6

Torx Screw M5 X 20

250000528

$2.00

7

Hexalob Screw M4 X 10

250000565

$2.00

8

Torx Screw M5 X 26

250000587

$4.15

9

Jack Nut M5

250100035

$5.85

10

Weld Nut M4

250100156

$4.12

11

Rubber Washer 5 mm

250200024

$2.03

12

Washer M5

250200025

$0.70

14

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

15

Panel Nut M5 X 0.8

250000958

$4.00

16

Pop Rivet 3/16”

293150108

$1.19

18

Screw M4 X 16

250000725

$3.30

19

Not Available As Spare Parts

XXX

Unavailable

21

Washer

517124300

$0.18

22

Grommet

517302841

$2.55

23

Not Available As Spare Parts

XXX

Unavailable

24

Grommet

517303756

$3.61

25

LH Panel Latch

517303808

$9.61

26

RH Mirror Ass'y

517305100

$49.97

26

LH Mirror Ass'y

517305101

$49.97

27

Not Available As Spare Parts

XXX

Unavailable

28

Console Nut

517304518

$13.37

29

Deep Black, Center Hood

517304796

$192.51

30

ROADSTER RED REAR CONSOLE - Call your local BRP dealership

517305255

Unavailable

31

ROADSTER RED RH PANEL - Call your local BRP dealership

517305341

Unavailable

32

Deep Black, Panel Trim RH

517304802

$167.88

33

ROADSTER RED LH PANEL - Call your local BRP dealership

517305343

Unavailable

34

Black, LH Flashing Panel

517304805

$167.88

35

HOOD RH B-293 - Call your local BRP dealership

517305243

Unavailable

35

HOOD LH B-293 - Call your local BRP dealership

517305244

Unavailable

36

Deep Black, Upper Storage Access Cover

517304912

$14.90

37

Cover Latch

517304917

$9.93

38

RH Panel Latch

517304919

$13.79

43

Windshield 345mm

517304927

$164.90

47

Deep Black, RH Panel Vent Grid

517304935

$28.33

48

Deep Black, Console Support

517304970

$11.10

52

Windshield Support Long, Yellow 2000

860200944

$39.52

53

RH Air Deflector

517305008

$56.69

54

LH Air Deflector

517305009

$56.69

55

Headlight Trim Cap

517305010

$34.30

57

Not Available As Spare Parts

XXX

Unavailable

59

Deep Black RH Console

517305061

$26.84

66

RH Rear Hood Foam

517305090

$12.31

67

LH Rear Hood Foam

517305091

$12.31

68

Deep Black, Trunk

517305095

$17.88

69

Rivet Plate

517305109

$4.52

75

Not Available As Spare Parts

XXX

Unavailable

76

Not Available As Spare Parts

XXX

Unavailable

77

Deep Black, Support Console Cap

517305148

$4.52

78

Seal Joint

517305157

$2.21

79

Deep Black, Support Console Cap

517305180

Unavailable

81

RH Foam Upper

517305196

$28.33

82

RH Foam Central

517305197

$12.31

83

RH Foam Lower

517305198

$26.09

84

RH Foam Rear

517305199

$17.88

85

LH Upper Panel Foam

517305200

$17.88

86

LH Center Panel Foam

517305201

$11.10

87

LH Lower Panel Foam

517305202

$17.88

88

LH Rear Panel Foam

517305203

$17.88

89

Panel Latch

517305279

$14.40

96

Headlamp

517306180

$226.09

96a

Cap

219400070

$16.39

96b

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

96c

Holder Bracket

219800282

$5.33

96d

Spring

219800281

$3.13

98

Deep Black, Indicator Support

517305511

$54.45

100

Deep Black LH Front Console

517305513

$29.07

101

CONSOLE FR B-160 - Call your local BRP dealership

517305548

Unavailable

103

LH Panel Clip Ass'y, Black | Includes 1710 to 1710a

517305722

$12.31

104

Ring

517305723

$3.21

105

RH Panel Clip Ass'y, Black | Includes 1700 to 1700a

517305724

$12.31

106

Pin

517305734

$3.30

107

Push Nut

732610072

$1.97

107

Push Nut

250100158

$2.00

108

Torx Truss Screw M6 X 20

250000705

$2.00

109

Panel Nut M6 X 1.0

250100198

$1.99

110

Heat Shield | Europe

517305451

$2.12
