Description

Price

1

Chaincase

504153181

$349.99

2

Hex. Flange Screw M6 X 20

207662034

$2.11

3

Flange Elastic Nut M6

233261434

$4.44

4

Plate | Not Shown

518325816

$79.99

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Oil Seal

293200158

$14.22

7

Ball Bearing

293350115

$12.11

8

Circlip

504152576

$9.99

9

Shim

504152628

$10.99

10

Sprocket 25 Teeth

504153912

$44.99

11

Spring Washer M10

504152784

$7.65

12

Hex. Screw M10 X 30

207103044

$1.48

13

Oil Seal

293200159

$16.25

14

Ball Bearing

293350059

$30.99

15

Circlip

504152582

$9.99

16

Kit Sprocket This part replaces 504152593.

861805538

$164.99

17

Circlip

504152572

$6.95

18

O-Ring

293300122

$2.11

19

Magnetic Cap

504152619

$23.49

21

Not Available As Spare Parts

XXX

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

Drive Chain, 104 Links

504152629

$179.99

24

Hex. Nut M10 X 1.5

232006414

$1.37

25

Adjustment Screw

504152602

$12.49

26

Magnetic Plug 1/8 - 27 NPTF

504152636

$11.49

27

Bonded Washer

250200100

$2.11

29

Tensioner chain

504153429

$15.99

30

Slider Chain

504152739

$65.99

31

Tensioner Axle

504152841

$16.34

32

Circlip

504152282

$3.17

33

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153147

$349.99

34

Tight Seal

293300130

$7.51

35

Hex. Flange Screw M6 X 1.0 X 30

250000360

$2.11

37

Cap

504152860

$20.49

38

Not Available As Spare Parts

XXX

Unavailable

40

Retaining Ring

504153886

$21.99

41

Ball Bearing

293350059

$30.99

42

O-Ring

293300122

$2.11

43

Magnetic Cap

504152619

$23.49

44

Circlip

504152572

$6.95

46

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$17.53

47

Hex. Flange Elastic Nut M8

233281414

$1.47

48

Not Available As Spare Parts

XXX

Unavailable

49

Not Available As Spare Parts

XXX

Unavailable

50

Not Available As Spare Parts

XXX

Unavailable

51

Drive Axle Ass'y

504154054

$529.99

52

Track Ass'y 15"X120"X1.2RS" | Includes 3200 to 3200b

504152606

$829.99

1a

Not Available As Spare Parts

XXX

Unavailable

33a

Casting Cover

504153151

$194.99

33b

Rotation Sensor

504152896

$37.99

37a

Male Connector

414580700

$4.12

37b

Polyurethane Hose 10000Mm Long

219704410

$56.99

52a

Track Guide | Track Width 16''

415129528

$3.29

52b

Cleat

504152651

$9.69

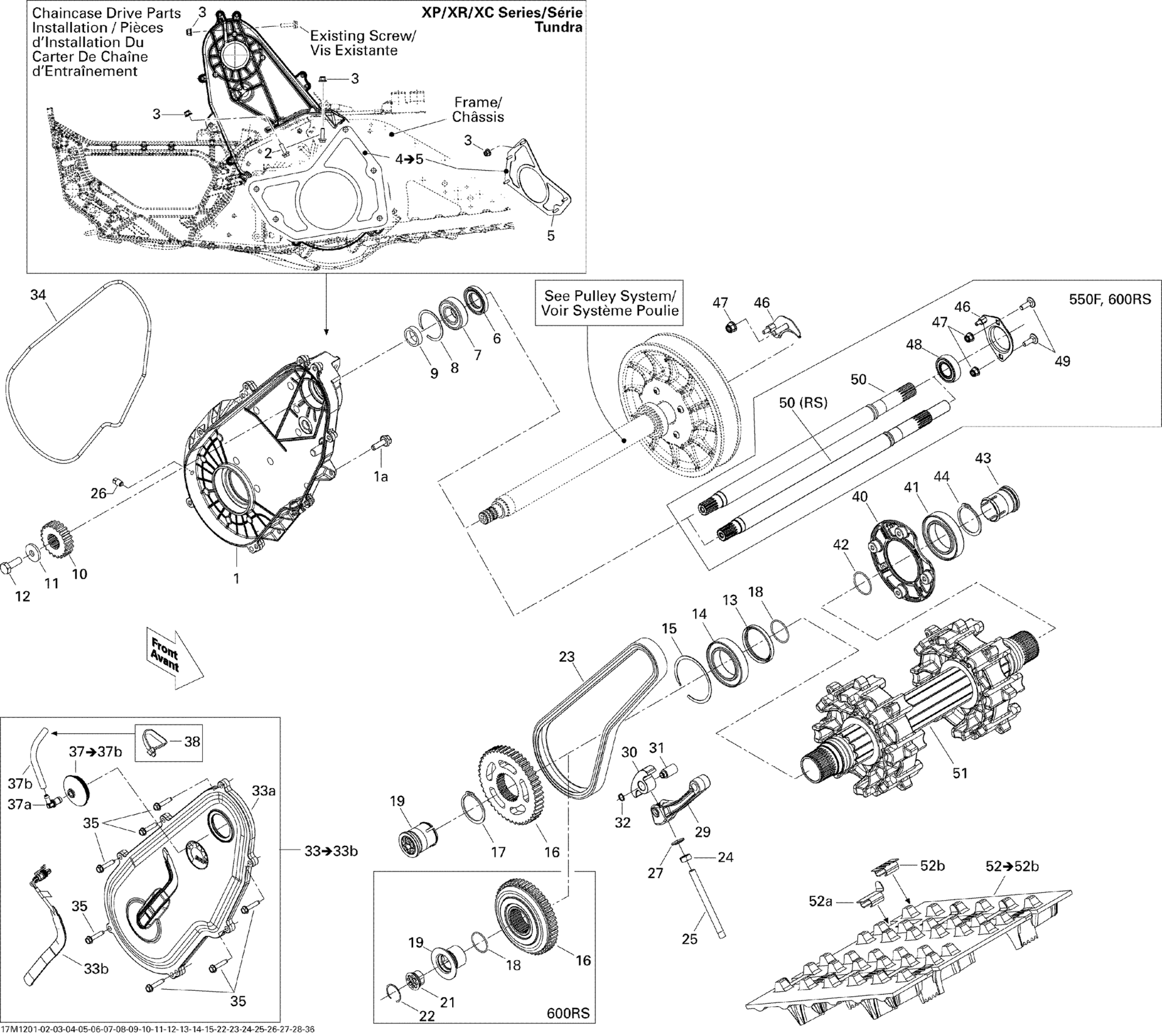

Ski-Doo GSX LE 600HOETEC XP, 2012 05- Drive System Diagram

Chaincase

Hex. Flange Screw M6 X 20

Flange Elastic Nut M6

Plate | Not Shown

Not Available As Spare Part - Friction Washer

Oil Seal

Ball Bearing

Circlip

Shim

Sprocket 25 Teeth

Spring Washer M10

Hex. Screw M10 X 30

Oil Seal

Ball Bearing

Circlip

Kit Sprocket This part replaces 504152593.

Circlip

O-Ring

Magnetic Cap

Not Available As Spare Parts

Not Available As Spare Parts

Drive Chain, 104 Links

Hex. Nut M10 X 1.5

Adjustment Screw

Magnetic Plug 1/8 - 27 NPTF

Bonded Washer

Tensioner chain

Slider Chain

Tensioner Axle

Circlip

Chaincase Cover Ass'y | Includes 1700 to 1700c

Tight Seal

Hex. Flange Screw M6 X 1.0 X 30

Cap

Not Available As Spare Parts

Retaining Ring

Ball Bearing

O-Ring

Magnetic Cap

Circlip

Bearing Housing Ass'y | Includes 2500 to 2500a

Hex. Flange Elastic Nut M8

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Drive Axle Ass'y

Track Ass'y 15"X120"X1.2RS" | Includes 3200 to 3200b

Not Available As Spare Parts

Casting Cover

Rotation Sensor

Male Connector

Polyurethane Hose 10000Mm Long

Track Guide | Track Width 16''

Cleat
