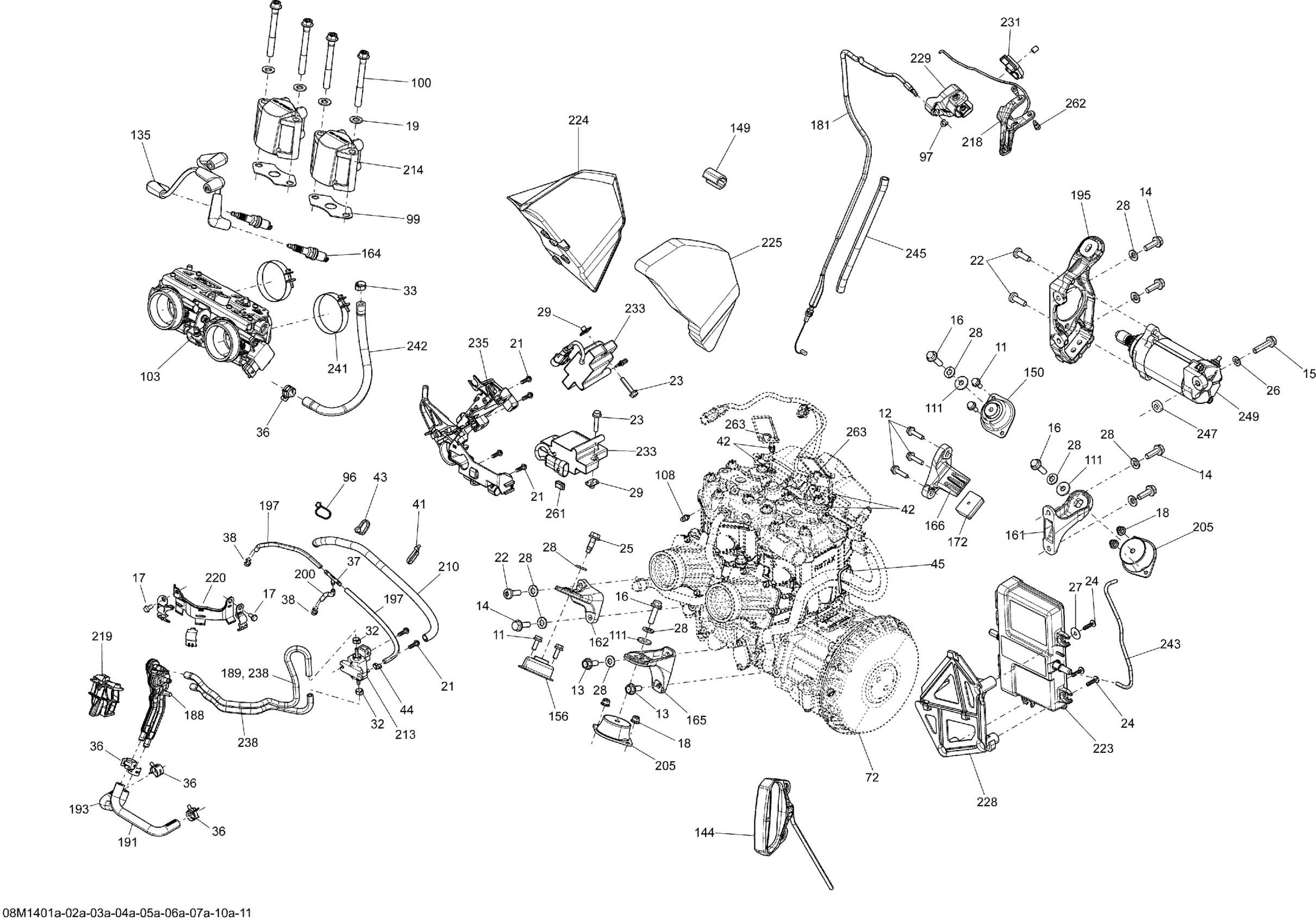

Ski-Doo GSX LE 600HOE XS, 2014 01- Engine And Engine Support Diagram

#

Description
Price

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

12

Hex. Flange Screw M6 X 25

207562544

$1.69

13

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

14

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

15

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.44

16

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

17

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Flat Washer 10 mm

234001410

$1.26

21

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

22

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

23

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.22

24

Truss Head Torx Screw K50 X 20

250000297

$2.11

25

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.11

26

Flat Washer With Teflon 8 mm

250200008

$3.80

27

Flat Washer

250200040

$1.90

28

Conical Spring Washer M8

250200146

$1.01

29

Nut Welded, M6

293100003

$9.12

32

Crimp Clamp

293650234

$5.39

33

Oetiker Clamp

293650046

$2.89

36

Norma Spring Clamp

293650214

$15.89

37

T-Fitting

293710068

$8.29

42

Tie Wrap 94 mm | 4X4

293750001

$1.03

45

Tie Wrap 368 mm

293750008

$1.04

72

Not Available As Spare Part - Friction Washer

Unavailable

72

Not Available As Spare Part - Friction Washer

Unavailable

97

Circlip

414274500

$0.90

99

Gasket

420430930

$4.99

100

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$19.99

103

Throttle Body

420889201

$1.00

108

Hose Nipple

420924724

$14.83

111

Yellow, Washer

503183200

$3.19

135

Ignition Cable, 177mm long

512061126

$28.49

144

Starter Grip

512060136

$14.83

149

Protector

512060313

$10.33

150

Rubber Mount

512060387

$46.99

156

Rubber Mount

512060448

$51.99

161

Front Support, MAG

512060469

$31.99

162

Rear Support, PTO

512060478

$31.99

164

Spark Plug NGK PZFR6F This part replaces 415129375.

415130430

$30.49

165

Rear Support, MAG

512060559

$31.99

166

Stopper Support

512060576

$29.49

172

Stopper

512060627

$10.33

181

Throttle Cable

512060624

$110.99

188

Manifold

512060692

$45.99

189

SPRING - Call your local BRP dealership | Not Shown

512060930

Unavailable

191

RH Formed Hose

512060694

$8.29

193

LH Formed Hose

512060695

$8.29

195

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

197

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

205

Rubber Mount

512060729

$65.99

213

Solenoid Valve

270600005

$116.49

214

Fuel Injector | Includes 13 to 16b This part replaces 512060727.

512061233

$339.99

218

Handle Ass'y

512061250

$124.99

219

Manifold Support

512060769

$11.60

220

Hose Support

512060827

$2.11

223

Calibrated Module

512060780

$749.99

224

Noise Shield

512060847

$16.33

225

Inner Acoustic Foam

512060958

$19.49

228

Calibrated Module Support

512060858

$14.22

229

Lower Housing

512060860

$17.53

231

Upper Housing

512060859

$8.89

233

Ignition Coil

512060953

$132.49

235

Ignition Coils Support

512060888

$11.60

238

Polyurethane Hose 10000Mm Long

219704410

$56.99

241

Gemi Clamp

293650158

$8.57

242

Bleeder's Collector Outlet Hose

512060944

$28.99

243

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

245

Was 409901700 Tubing (9 mm)

219704399

$84.99

247

Washer

515176500

$11.12

249

Starter

515178473

$319.49

261

Clip

710000992

$4.29

262

Flange Screw

732601143

$4.12

263

Push Nut

732610072

$2.19
