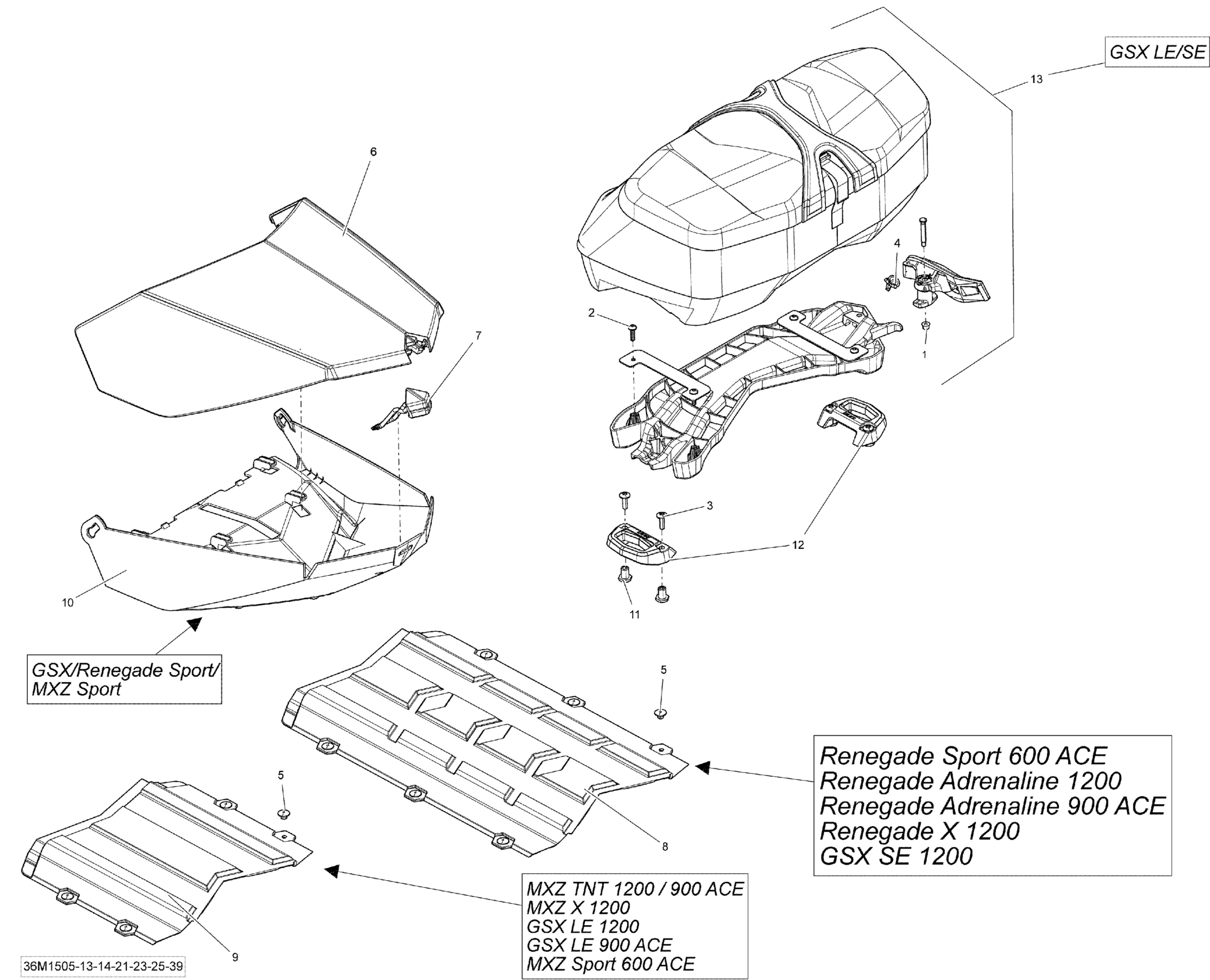

Ski-Doo GSX LE 1200 XR137, 2015 Luggage Rack _36M1521 Diagram

#

Description

Price

1

Elastic Flange Nut M5

233251494

$1.74

2

Truss Head Torx Screw K50 X 20

250000297

$2.06

3

Torx Screw M6 X 20, Scotch Grip

250000446

$3.61

4

Rivet | Model-T3

293150067

$2.29

5

Pop Rivet 3/16"

293150103

$0.54

6

Deep Black Trunk Cover

511000568

$109.97

7

Bracket

511000528

$12.00

8

Radiator Cover, 137'' | SPORT

511000590

$33.82

9

Radiator Cover, 128'' | Vehicle 129"

511001048

$29.97

10

Trunk

511000757

$53.05

11

Threaded Insert

511000822

$1.78

12

Luggage Rack Base With Hardware | Includes 5200 to 5200c

860201806

Unavailable

13

Short Bag Kit This part replaces 860200620.

860201678

$198.87
