Description

Price

1

Tie-Rap 180 mm

414115200

$0.11

2

Fuel Tank Cap

513033969

$26.99

3

Not Available As Spare Parts

XXX

Unavailable

4

Spring Clamp

414554800

$0.88

6

Ring

513033180

$19.99

7

Check Valve

513033842

$35.99

8

Shoulder Bushing

513033326

$14.99

9

Polyurethane Hose 10000Mm Long

219704410

$56.99

11

Gasket

513033334

$24.49

12

RH Cap

513033418

$14.99

13

LH Cap

513033419

$14.99

14

Not Available As Spare Parts

XXX

Unavailable

19

Insulating Foam

513033588

$14.99

20

Grommet

513033596

$21.99

22

Fuel Tank

513033667

$339.99

23

Protector Tube

504153074

$14.49

300

PUMP FUEL | Includes 300 to 300k This part replaces 513033838.

513034260

$259.99

300a

Fuel Filter

415129451

$25.99

300b

O-Ring

415129511

$18.49

300c

Fuel Filter

415129510

$25.99

300d

Wave Washer

415129512

$19.99

300e

Cover

415129685

$29.99

300f

O-Ring

415129509

$19.99

300g

Fuel Pump Ring

415129569

$19.49

300h

Screw

415129513

$9.59

300i

Fuel Level Sensor

415130108

$149.99

300j

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

500

Hose Ass'y | Includes 27 to 28

513033583

$82.99

500a

Locking Clip

513033135

$5.89

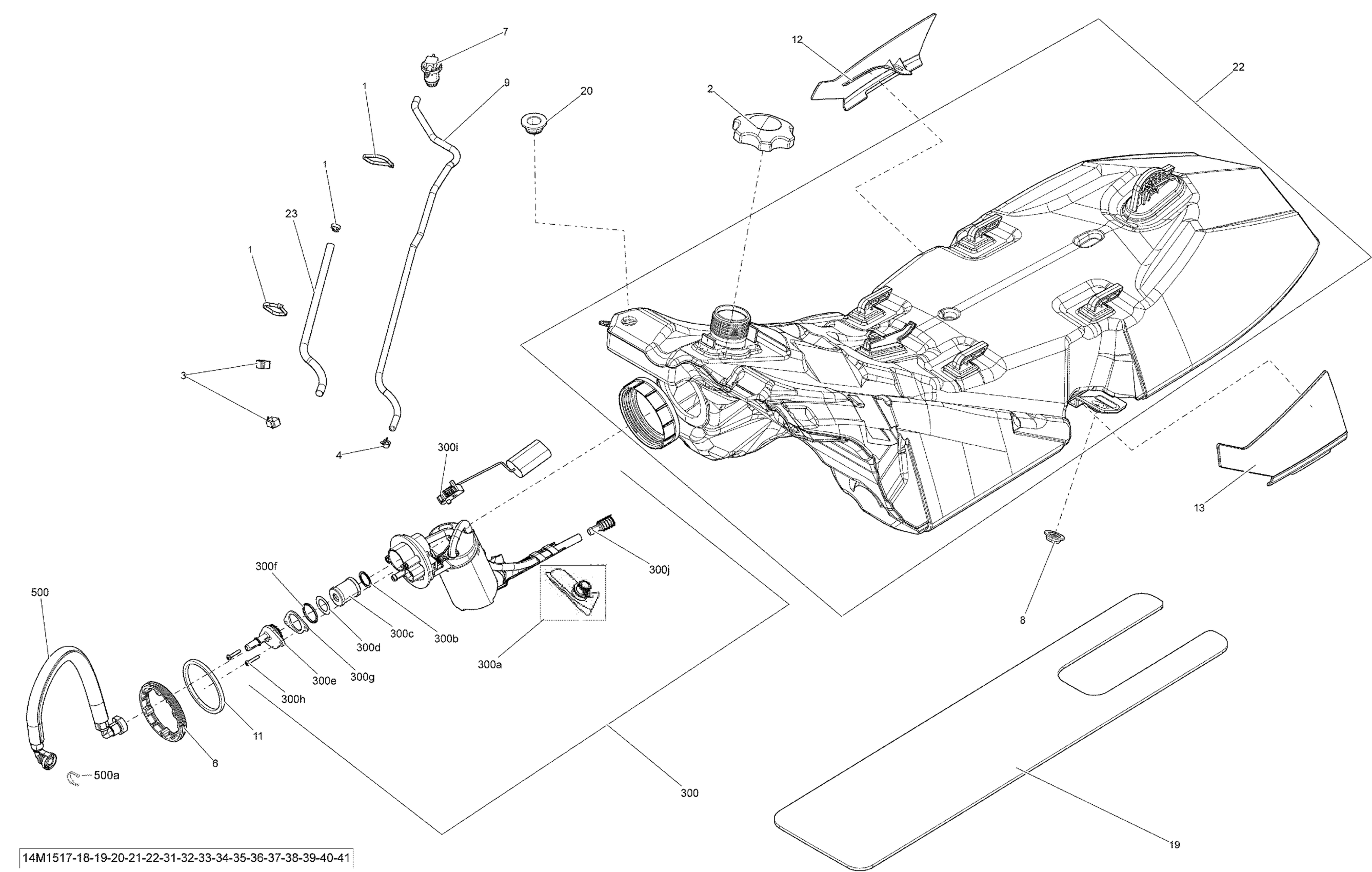

Ski-Doo GSX LE 1200 XR137, 2015 Fuel System _14M1521 Diagram

Tie-Rap 180 mm

Fuel Tank Cap

Not Available As Spare Parts

Spring Clamp

Ring

Check Valve

Shoulder Bushing

Polyurethane Hose 10000Mm Long

Gasket

RH Cap

LH Cap

Not Available As Spare Parts

Insulating Foam

Grommet

Fuel Tank

Protector Tube

PUMP FUEL | Includes 300 to 300k This part replaces 513033838.

Fuel Filter

O-Ring

Fuel Filter

Wave Washer

Cover

O-Ring

Fuel Pump Ring

Screw

Fuel Level Sensor

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

Hose Ass'y | Includes 27 to 28

Locking Clip
