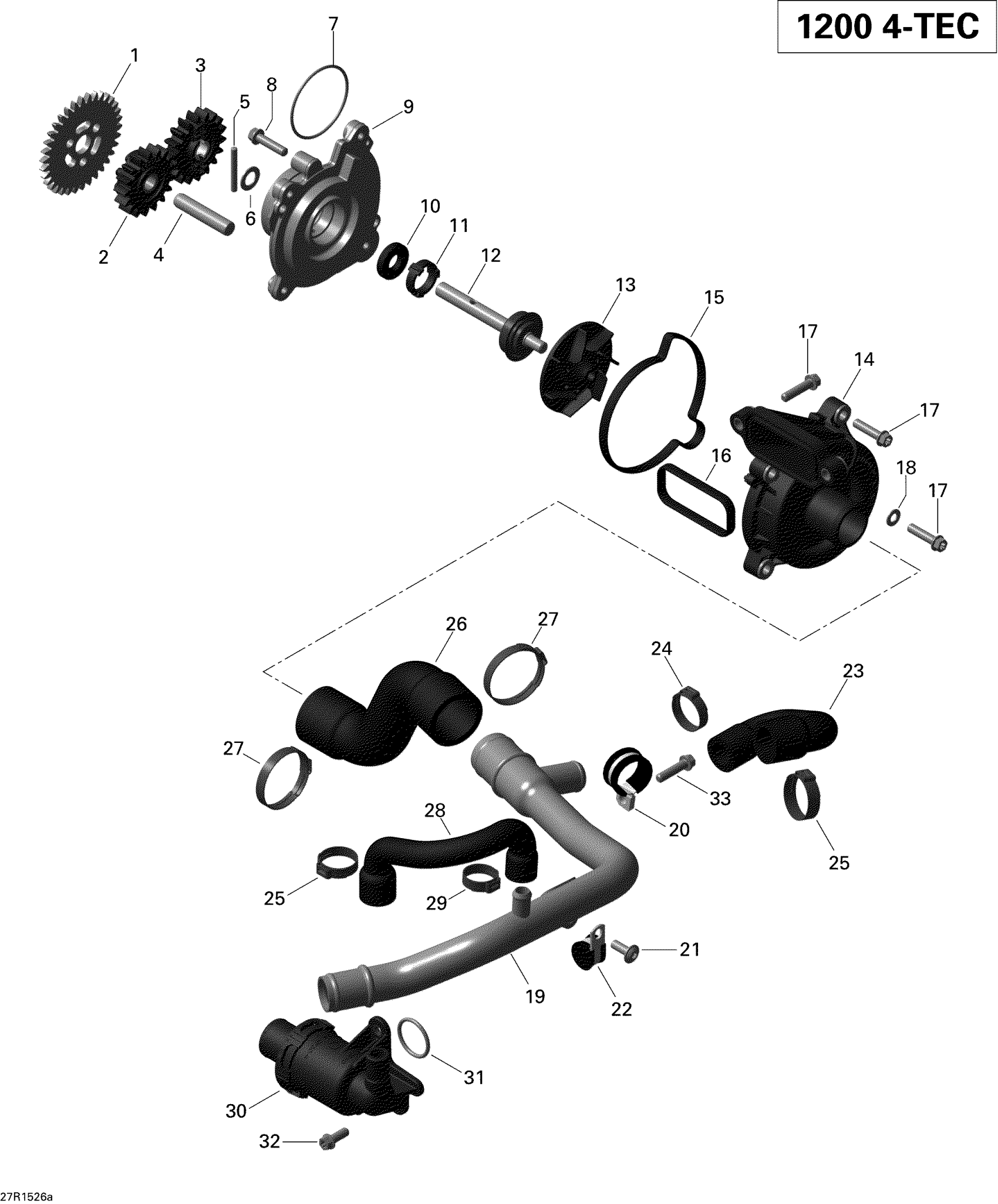

Ski-Doo GSX LE 1200 XR137, 2015 Engine Cooling GSX LE_27R1526a Diagram

#

Description
Price

1

Idle Gear, 34 Teeth

420835065

$64.90

2

Idle Gear, 17 Teeth

420835062

$18.63

3

Water Pump Gear, 18 Teeth

420835070

$18.63

4

Location Pin 10 M6x50

420229302

$3.01

5

Needle Pin

420832660

$2.00

6

Thrust Washer

420827590

$3.75

7

O-Ring

293300117

$4.15

8

Torx Flange Screw M6 X 25

420440234

$2.91

9

Step Collar

420910230

$64.90

10

Oil Seal

420650315

$11.04

11

Spacer Ring

420947430

$2.00

12

Water Pump Shaft

420837921

$52.96

13

Water Impeller

420922805

$35.79

14

Water Pump Housing Ass'y | Includes 14 to 16 This part replaces 420822462.

420822463

Unavailable

15

Gasket

420430780

$13.18

16

Gasket

420431290

$13.18

17

Torx Flange Screw M6 X 25

420440234

$2.91

18

Seal Washer

420230415

$1.72

19

TUBE - Call your local BRP dealership

420922081

Unavailable

20

TUBE CLAMP - Call your local BRP dealership

420651590

Unavailable

21

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

420440751

Unavailable

22

Cable Clamp

420851492

$13.18

23

MOLDED HOSE - Call your local BRP dealership

420922091

Unavailable

24

Gear Clamp

420851673

$5.40

25

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

26

Molded Hose

420460461

$18.63

27

Gear Clamp

420951293

$8.09

28

HOSE - Call your local BRP dealership

420460472

Unavailable

29

Gear Clamp

420951063

$5.06

30

Thermostat Housing Ass'y | Includes 30 to 31

420822541

$67.13

31

O-Ring

420631876

$10.21

32

Torx Flange Screw M6 X 16

420440162

$3.01

33

Torx Flange Screw M6 X 25

420440234

$2.91
