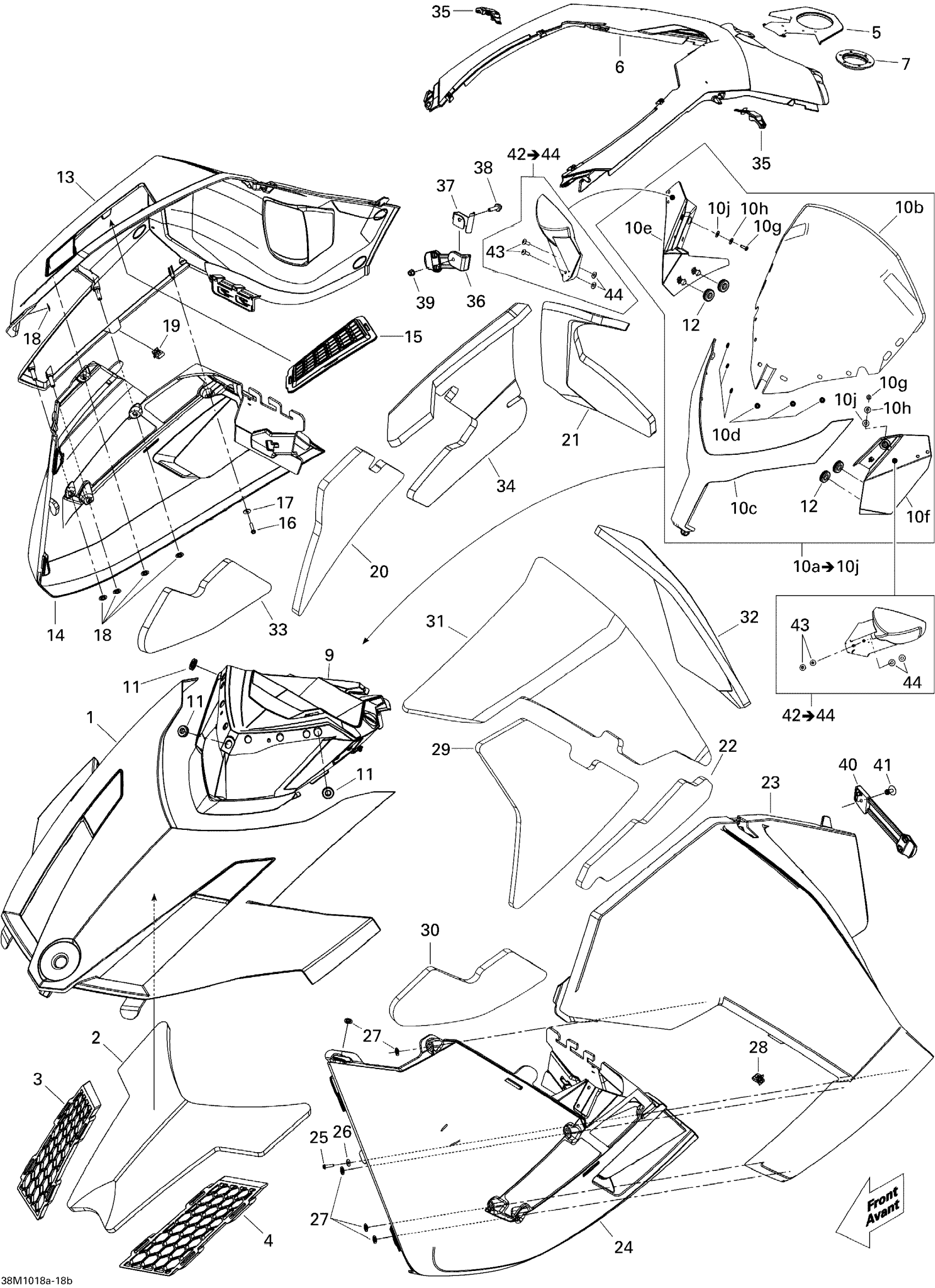

Ski-Doo GSX LE 1200, 2010 09- Hood LE 1200 Diagram

#

Description
Price

1

HOOD, BRIGHT WHITE - Call your local BRP dealership

517304374

Unavailable

2

Hood Foam

517304893

$28.99

3

RH Hood Grille

517303805

$31.99

4

LH Hood Grille

517303804

$31.99

5

Deep Black, Cap Console

517304027

$15.49

6

CONSOLE, BRIGHT WHITE - Call your local BRP dealership

517304381

Unavailable

7

Console Nut

517304518

$15.29

9

INDICATOR SUPPORT - Call your local BRP dealership

517303971

Unavailable

10a

Not Available As Spare Part - Friction Washer

Unavailable

10b

HIGHT WINDSHIELD (430) - Call your local BRP dealership

517303797

Unavailable

10c

Medium Windshield Support

860200229

$31.99

10d

Push Nut

732610072

$2.19

10e

RH CONSOLE AIR DEFLECTOR - Call your local BRP dealership

517303799

Unavailable

10f

LH CONSOLE AIR DEFLECTOR - Call your local BRP dealership

517303800

Unavailable

10g

Torx Screw K50 X 16

250000720

$1.69

10h

Washer M5

250200025

$0.74

10j

Rubber Washer 5 mm

250200024

$2.19

11

Grommet

517303756

$4.09

12

Grommet

517303756

$4.09

13

WHITE RH PANNEL - Call your local BRP dealership

517304368

Unavailable

14

PANEL_BODY LWR R B-160 - Call your local BRP dealership

517304373

Unavailable

15

GRILL - Call your local BRP dealership

517304240

Unavailable

16

Hex. Flange Screw K40 X 16

241141660

$1.48

17

Flat Washer 4 mm, Stainless

234042600

$1.15

18

Push Nut

732610072

$2.19

19

Edge Clip

517302785

$0.88

20

CENTRAL FOAM PANEL RH - Call your local BRP dealership

517304894

Unavailable

21

REAR PANEL FOAM RH - Call your local BRP dealership

517304895

Unavailable

22

CENTRAL FOAM PANEL LH - Call your local BRP dealership

517304897

Unavailable

23

PANEL_BODY LH B-229 - Call your local BRP dealership | MXZ X, Renegade X Model

517304355

Unavailable

24

PANEL_BODY LWR L B-160 - Call your local BRP dealership

517304362

Unavailable

25

Hex. Flange Screw K40 X 16

241141660

$1.48

26

Flat Washer 4 mm, Stainless

234042600

$1.15

27

Push Nut

732610072

$2.19

28

Edge Clip

517302785

$0.88

29

LH CENTRAL PANEL FOAM - Call your local BRP dealership

517304899

Unavailable

30

LH LOWER PANEL FOAM - Call your local BRP dealership

517304901

Unavailable

31

LH UPPER PANEL FOAM - Call your local BRP dealership

517304902

$28.99

32

LH REAR PANEL FOAM - Call your local BRP dealership

517304904

Unavailable

33

RH LOWER PANEL FOAM - Call your local BRP dealership

517304905

Unavailable

34

RH UPPER PANEL FOAM - Call your local BRP dealership

517304908

Unavailable

35

Panel Latch

517305000

$13.49

36

RH Panel Latch

517303612

$9.99

37

Latch Support

517304221

$9.19

38

Hex.Flange Screw M5 X 20

207652044

$1.90

39

Hex. Flange Elastic Nut M5

233251414

$1.04

40

LH Panel Latch

517303808

$11.49

41

Pop Rivet 3/16”

293150108

$1.19

42

RH Mirror Ass'y

517305100

$52.99

42

LH Mirror Ass'y

517305101

$52.99

43

Torx Truss Screw M6 X 16

250000721

$1.69

44

Rubber Washer 5 mm

250200024

$2.19
