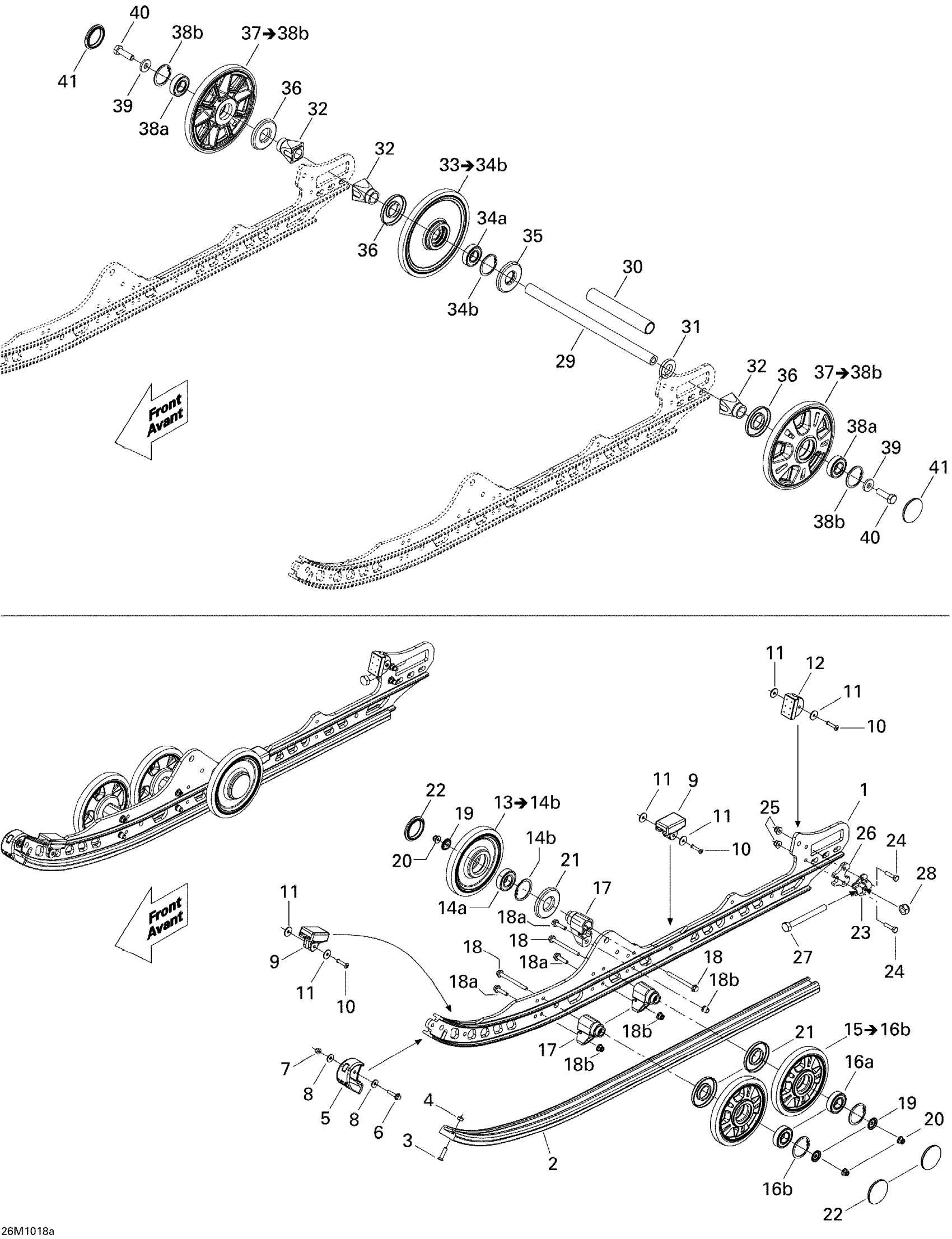

Ski-Doo GSX LE 1200, 2010 08- Rear Suspension 1, LE Diagram

Suspension Rail 120

503196633

$244.99

Black Slider Shoe 120"

503191301

$29.49

Phillips Screw M6 X 25

208562531

$2.11

Elastic Stop Nut M6

232561414

$0.55

Runner Protector

503191137

$11.99

Hex. Flange Screw M5 X 25

207652544

$0.50

Hex. Flange Elastic Nut M5

233251414

$1.04

Washer | DS 650 X

391301600

$0.48

Rubber Stopper

503190576

$12.99

Pop Rivet 3/16"

293150142

$2.29

Washer

503191273

$1.35

Rubber Stopper

503191291

$19.99

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$37.99

Ball Bearing | Package-STD

503190396

$14.30

Retaining Ring

415129371

$12.01

Full Moon Wheel Ass'y, 141 mm

503191622

$37.99

Ball Bearing | Package-STD

503190396

$14.30

Retaining Ring

415129371

$12.01

Casted Support

503193894

$16.49

Hex. Flange Screw M6 X 70

207667056

$4.44

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Wheel Cup M6

503191820

$4.99

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Labyrinth Seal

503190434

$6.09

Wheel Cap

570063600

$3.49

Tensioner

503192583

$8.29

Hex. Screw M6 X 25

207162544

$1.15

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Not Available As Spare Parts

XXX

Unavailable

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

Elastic Locking Nut M10 X 1.5

233601416

$1.69

Rear Axle

503190429

$59.99

Spacer

503196317

$18.49

Washer

503190432

$14.22

Rear Wheel Spacer

503190428

$8.14

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$51.99

Ball Bearing | Package-STD

503190396

$14.30

Retaining Ring

415129371

$12.01

Labyrinth Seal

503190682

$6.19

Labyrinth Seal

503190434

$6.09

Full Moon Wheel Ass'y, 180 mm

503191627

$51.99

Ball Bearing | Package-STD

503190396

$14.30

Retaining Ring

415129371

$12.01

Washer

503190439

$5.93

Hex. Screw With Nylon

250000019

$1.69

Wheel Cap

570063600

$3.49
