Description

Price

1

Spring Support Kit

861805547

$10.49

2

Spring Support Kit

861805547

$10.49

3

Socket Head Screw M8 X 25

205082544

$1.15

4

Hex. Flange Elastic Nut M8

233281414

$1.47

5

Pivot Arm Axle

503189156

$21.99

6

Bolt M8 X 248mm

503192440

$30.49

7

Washer

503189157

$3.28

8

Hex. Flange Elastic Nut M8

233281414

$1.47

9

Rear Arm Ass'y | Includes 3000 to 3000v

503191785

$232.99

10

Swivel Bushing

503191555

$7.83

11

Spring Cam Axe

503191178

$28.99

12

LH Spring Cam

503191191

$15.79

13

RH Spring Cam

503191190

$15.29

14

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

15

Cushion

503191640

$5.93

16

Lower Shaft

503192330

$45.99

17

Pivot Arm

503191302

$124.99

18

Block Guide

503189488

$39.99

19

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

20

LH Block, 4 Positions

503192301

$25.99

21

RH Block, 4 Positions

503192300

$25.99

22

Washer | 7415/7416. 7417/7418.

503189148

$2.85

23

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

24

Grease Fitting

408200700

$3.49

25

Washer

503191774

$2.32

26

Retaining Ring

503191782

$17.99

27

Bushing

503191775

$17.39

28

Upper Shaft

503191776

$45.99

29

Socket Set Screw M6 X 8

206260844

$1.48

31

Black Wheel Ass'y, 144 mm | Includes 3070 to 3070b

503191777

$37.99

32a

Ball Bearing

503191778

$12.49

32b

Retaining Ring

415129371

$12.01

33

Bushing

503191773

$16.79

34

Washer

503189276

$3.28

35

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

36

LH SPRING, SQUARE - Call your local BRP dealership

503191188

Unavailable

37

RH SPRING, SQUARE - Call your local BRP dealership

503191186

Unavailable

38

Plastic Bushing

503191345

$7.83

39

Spring Axle

503191344

$36.99

40

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

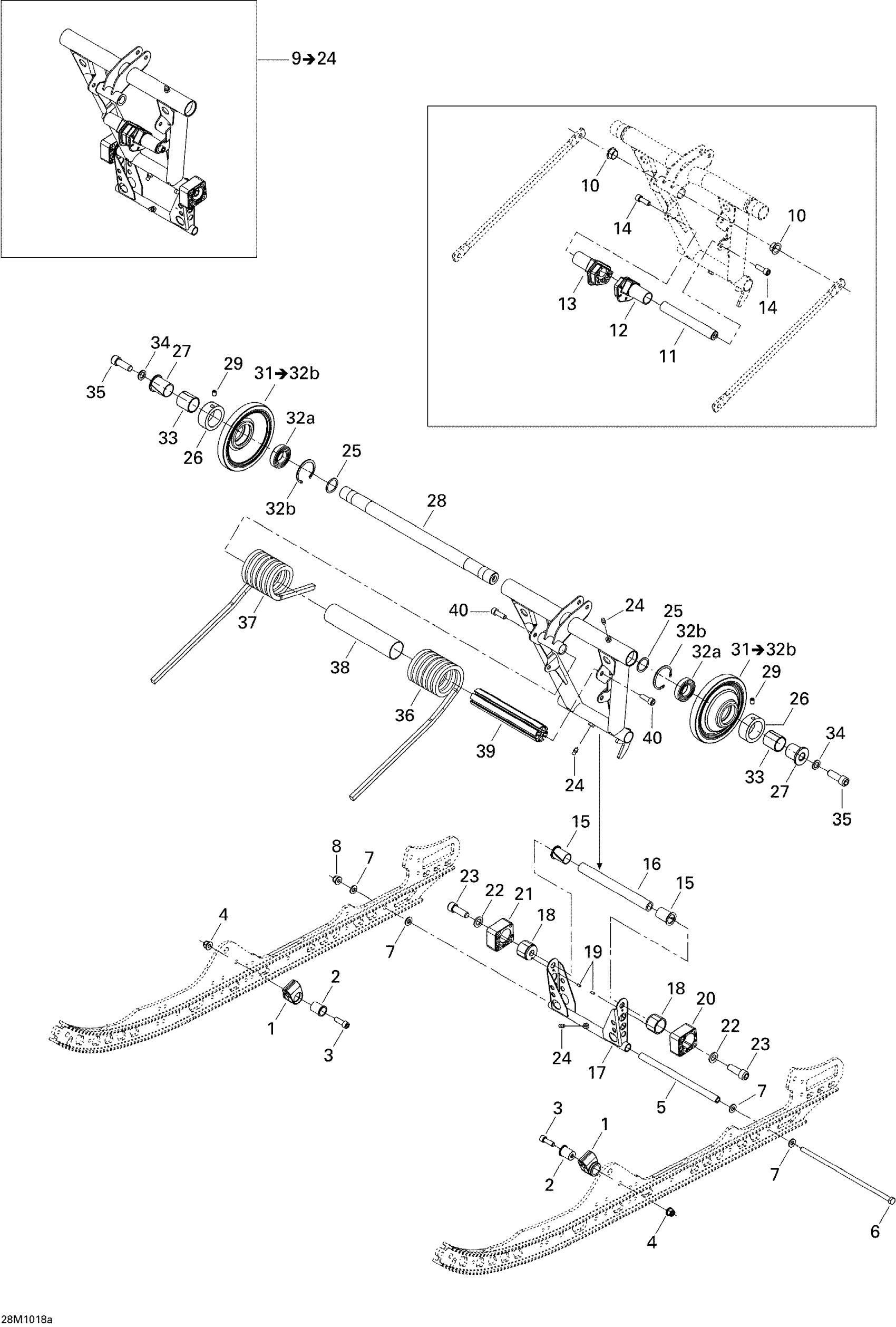

Ski-Doo GSX LE 1200, 2010 08- Rear Arm 1, LE Diagram

Spring Support Kit

Spring Support Kit

Socket Head Screw M8 X 25

Hex. Flange Elastic Nut M8

Pivot Arm Axle

Bolt M8 X 248mm

Washer

Hex. Flange Elastic Nut M8

Rear Arm Ass'y | Includes 3000 to 3000v

Swivel Bushing

Spring Cam Axe

LH Spring Cam

RH Spring Cam

Socket Head Screw M8 X 25, Scotch Grip | XXC

Cushion

Lower Shaft

Pivot Arm

Block Guide

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

LH Block, 4 Positions

RH Block, 4 Positions

Washer | 7415/7416. 7417/7418.

Socket Head Screw M12 X 35, Scotch Grip

Grease Fitting

Washer

Retaining Ring

Bushing

Upper Shaft

Socket Set Screw M6 X 8

Black Wheel Ass'y, 144 mm | Includes 3070 to 3070b

Ball Bearing

Retaining Ring

Bushing

Washer

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

LH SPRING, SQUARE - Call your local BRP dealership

RH SPRING, SQUARE - Call your local BRP dealership

Plastic Bushing

Spring Axle

Socket Head Screw M8 X 25, Scotch Grip | XXC
