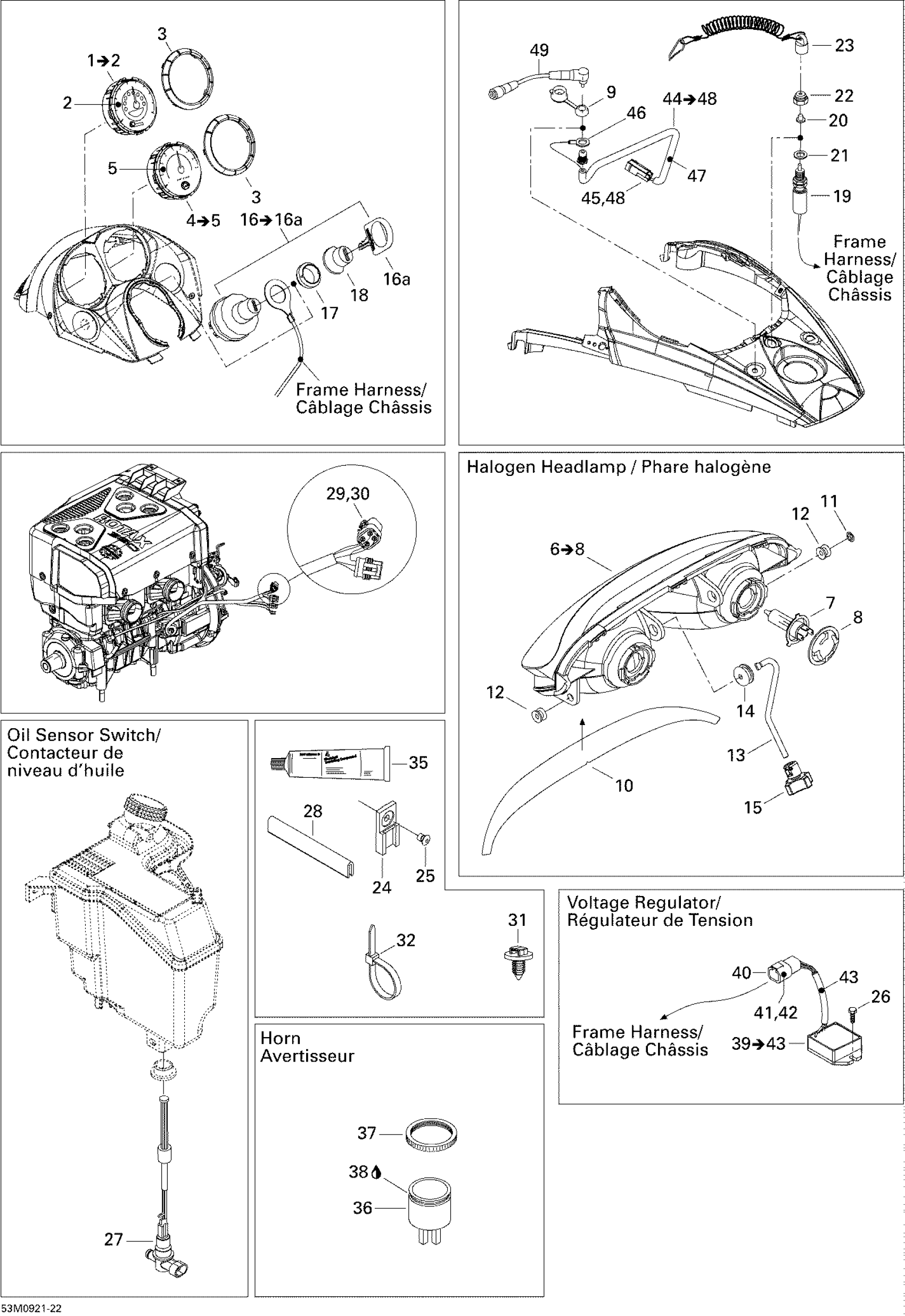

Ski-Doo GSX Fan, 2009 10- Electrical Accessories Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership | Includes 1 to 1a

515176476

Unavailable

2

LENS - Call your local BRP dealership

415129319

Unavailable

3

Gauge Ring This part replaces 515176242.

515179005

$13.99

4

TACHOMETER - Call your local BRP dealership

515176478

Unavailable

5

Lens

415129320

$24.49

6

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

8

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

9

Cap

572103300

$10.49

10

HEADLAMP DECAL - Call your local BRP dealership

516001328

Unavailable

11

Push Nut

732610072

$2.19

12

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

13

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

14

Grommet - Call your local BRP dealership

415100800

Unavailable

15

HANDLE - Call your local BRP dealership

515175975

Unavailable

16

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

16a

Blank Key

415129350

$26.49

17

FACE NUT - Call your local BRP dealership

410112100

Unavailable

18

Switch Boot

570013700

$11.49

19

Brake Switch

515175653

$19.49

20

Plunger Cap

570151100

$9.85

21

WASHER - Call your local BRP dealership

503183500

Unavailable

22

Switch Nut

515145900

$12.12

23

Cap Ass'y

515178283

$38.99

24

Clip

270000141

$11.49

25

Avdel Rivet 3/16"

293150037

$0.56

26

Hex. Flange Screw M6 X 12

210261250

$1.90

27

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

28

TRIM - Call your local BRP dealership

509000263

Unavailable

29

Female Terminal Housing, 4 Circuits

278001473

$26.99

30

Female Lock, 4 Circuits

278001474

$3.49

31

Mount Dart

293730040

$1.04

32

Tie-Rap 180 mm

414115200

$0.11

32

Tie Wrap 142 mm

293750002

$1.25

32

Tie-Rap 173 mm

293750009

$1.04

32

Tie Wrap 368 mm

293750008

$1.04

35

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

36

HORN - Call your local BRP dealership

515176035

Unavailable

37

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

38

Silicone Sealant 51388, 300 ml

296000309

$36.99

39

Voltage Regulator | Includes 34 to 40

515176189

$149.99

40

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

41

Male Terminal

515175568

$9.12

42

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

43

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

44

Visor Harness

515177837

$33.99

45

Male Terminal

515175232

$1.58

46

OPEN BARREL - Call your local BRP dealership

515175172

Unavailable

47

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

48

Male Terminal Housing, 2 Circuits

515175654

$9.12

49

Extension

515175851

$11.12
