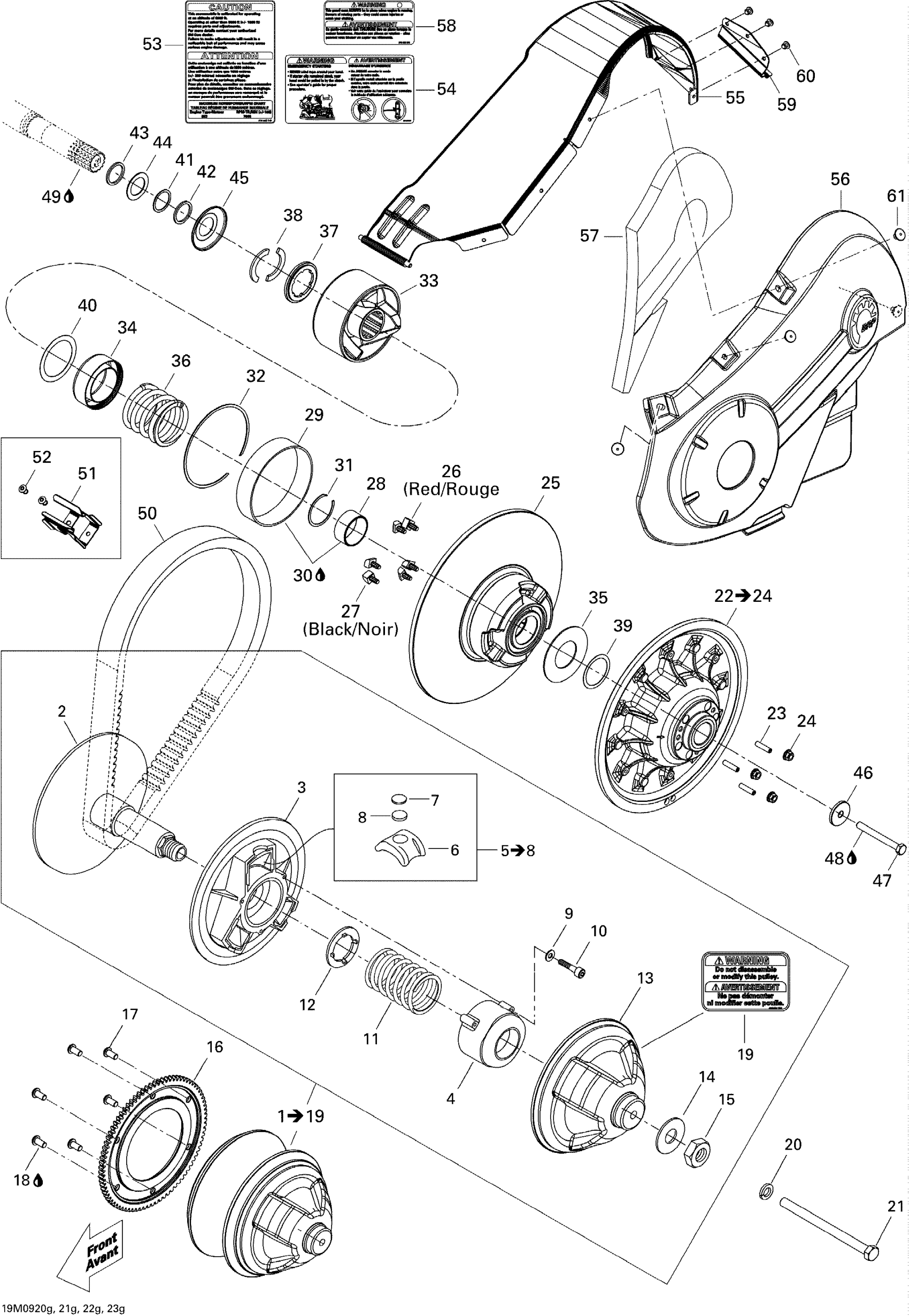

Ski-Doo GSX Fan, 2009 05- Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

INNER FLANGE - Call your local BRP dealership

415128975

Unavailable

3

SLIDING FLANGE - Call your local BRP dealership

417126692

Unavailable

4

SPRING COVER - Call your local BRP dealership

415128602

Unavailable

5

UNIT - Call your local BRP dealership | Includes 5 to 8

415128932

Unavailable

6

CENTRIFUGE BLOCK - Call your local BRP dealership | CDN, USA

417118100

Unavailable

7

ADJUSTMENT WEIGH - Call your local BRP dealership | CDN, USA

417120400

Unavailable

7

ADJUSTMENT WEIGH - Call your local BRP dealership | CDN, USA

417114400

Unavailable

8

CAPSULE - Call your local BRP dealership | CDN, USA

417114500

Unavailable

9

WASHER - Call your local BRP dealership

420245370

Unavailable

10

SOCKET HEAD SCREW M6 X 35 - Call your local BRP dealership

415128606

Unavailable

11

Spring, Violet/yellow This part replaces 415128608.

415015300

$43.49

12

SPRING SEAT - Call your local BRP dealership

417126694

Unavailable

13

Cap

415128609

Unavailable

14

WASHER - Call your local BRP dealership

415128610

Unavailable

15

NUT - Call your local BRP dealership

417118300

Unavailable

16

Ring Gear

417222833

$327.99

17

Hex. Screw M8 X 16

236281684

$4.12

18

Loctite 271, 10 ml

293800005

$26.99

19

Security Label

516001726

Unavailable

20

WASHER-LOCK HELICAL SPRING - Call your local BRP dealership

392002800

Unavailable

21

BOLT - Call your local BRP dealership

417113800

Unavailable

22

FIXED FLANGED ASS'Y - Call your local BRP dealership | Includes 22 to 32

417127024

Unavailable

23

Screw Socket Set DIN.913 S.Grip

250000408

$4.09

24

Hex. Flange Nut M6

233061414

$1.68

25

Sliding Flange Ass'y

417127026

Unavailable

26

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

$4.65

27

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.38

28

BUSHING - Call your local BRP dealership

417126901

Unavailable

29

BUSHING - Call your local BRP dealership

417126902

Unavailable

30

Loctite, Black Max, 3 ml

413408300

$26.99

31

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

32

CIRCLIP - Call your local BRP dealership

417126878

Unavailable

33

CAM ASS'Y - Call your local BRP dealership

417126830

Unavailable

34

GUARD - Call your local BRP dealership

417126381

Unavailable

35

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

36

Spring

417127061

$46.49

37

SPACER - Call your local BRP dealership

417126733

Unavailable

38

HALF KEY - Call your local BRP dealership

417126734

Unavailable

39

SHIM - Call your local BRP dealership

504112300

Unavailable

40

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

41

Spacer

417300252

$5.49

42

Spacer

417300265

$2.29

43

Spacer

417300252

$5.49

44

Shim

504112000

$8.59

45

PROTECTOR - Call your local BRP dealership

417300238

Unavailable

46

Strength Washer

517302322

$12.63

47

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

48

Loctite 243, 10 ml

293800060

$21.49

49

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

50

Drive Belt

415060600

$104.99

51

Bracket

517281905

$18.49

52

Pop Rivet 3/16"

390402200

$0.35

53

Not Available As Spare Parts

XXX

Unavailable

54

EMERGENCY STARTING LABEL - Call your local BRP dealership

516002674

Unavailable

55

BELT GUARD - Call your local BRP dealership

417300269

Unavailable

56

SIDE PROTECTOR ASS'Y - Call your local BRP dealership | Includes 53 to 54

417300301

Unavailable

57

Foam

417300246

Unavailable

58

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

59

BELT GUARD BRACKET - Call your local BRP dealership

417300216

Unavailable

60

Avex Rivet

390909200

$0.30

61

Pop Rivet 3/16"

293150103

$0.55
