Description

Price

1

FUEL TANK - Call your local BRP dealership

513033171

Unavailable

2

Fuel Tank Cap

513033025

$24.49

3

FUEL GAUGE - Call your local BRP dealership

513033358

$48.99

4

Grommet

293720058

$11.99

5

Grommet

513032908

$10.49

6

Male Connector

414580700

$4.12

7

Tie-Rap 180 mm

414115200

$0.11

8

Mount Dart

293730040

$1.04

9

Check Valve

275500398

$10.99

10

Polyurethane Hose 10000Mm Long

219704410

$56.99

11

Y-Fitting

293710059

$9.69

12

Polyurethane Hose 10000Mm Long

219704410

$56.99

13

Polyurethane Hose 10000Mm Long

219704410

$56.99

14

Check Valve

513033469

$31.99

15

Polyurethane Hose 10000Mm Long

219704410

$56.99

16

Spring Clamp

414554800

$0.88

17

Spring Clamp

414554800

$0.88

18

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

19

Hose

513033070

$14.99

20

Norma Spring Clamp

513033010

$9.69

21

Male Connector

414872700

$1.90

22

Grommet | Europe

707800347

$10.49

23

Crimp Clamp

293650053

$3.09

24

Formed Hose

513033374

$30.99

25

Tubing 16 Mm 1000Mm Long

219704408

$7.49

26

Fuel Pump

403901813

$84.99

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

28

FORMED HOSE - Call your local BRP dealership

513033111

Unavailable

29

Spring Clamp

414415200

$0.88

30

Universal Spring Clamp

513033029

$5.39

31

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

32

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

33

Tubing 16 Mm 1000Mm Long

219704408

$7.49

34

Tubing 16 Mm 1000Mm Long

219704408

$7.49

35

Crimp Clamp, 15.3-706R

293650047

$3.29

36

Universal Spring Clamp

513033029

$5.39

37

Flat Washer 8 mm

234082410

$1.47

38

Hex. Elastic Stop Nut M8

232581414

$0.56

39

SUPPORT - Call your local BRP dealership

513033066

Unavailable

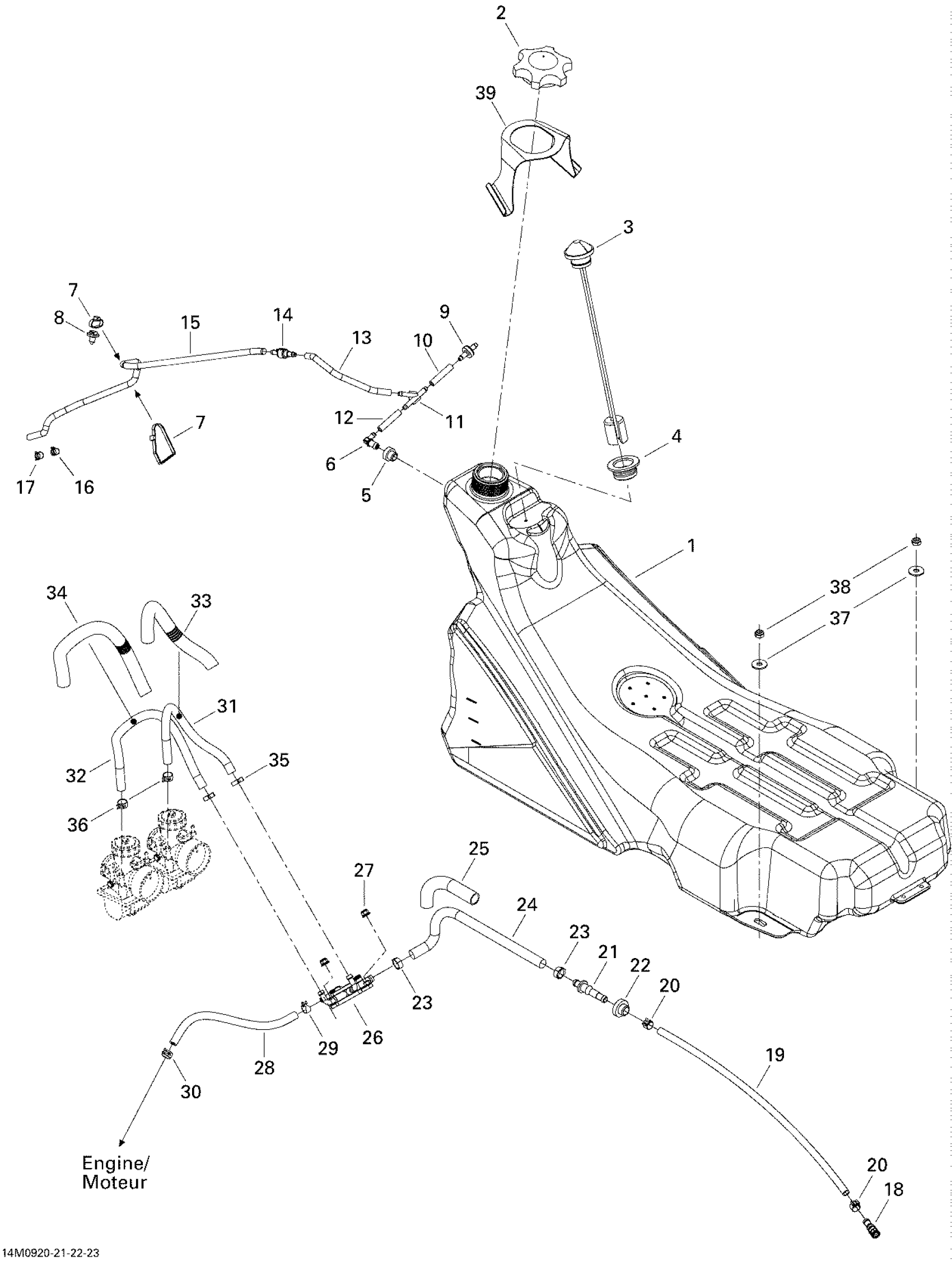

Ski-Doo GSX Fan, 2009 02- Fuel System Diagram

FUEL TANK - Call your local BRP dealership

Fuel Tank Cap

FUEL GAUGE - Call your local BRP dealership

Grommet

Grommet

Male Connector

Tie-Rap 180 mm

Mount Dart

Check Valve

Polyurethane Hose 10000Mm Long

Y-Fitting

Polyurethane Hose 10000Mm Long

Polyurethane Hose 10000Mm Long

Check Valve

Polyurethane Hose 10000Mm Long

Spring Clamp

Spring Clamp

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

Hose

Norma Spring Clamp

Male Connector

Grommet | Europe

Crimp Clamp

Formed Hose

Tubing 16 Mm 1000Mm Long

Fuel Pump

Hex. Flange Elastic Nut M6 x 1.0

FORMED HOSE - Call your local BRP dealership

Spring Clamp

Universal Spring Clamp

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

Tubing 16 Mm 1000Mm Long

Tubing 16 Mm 1000Mm Long

Crimp Clamp, 15.3-706R

Universal Spring Clamp

Flat Washer 8 mm

Hex. Elastic Stop Nut M8

SUPPORT - Call your local BRP dealership
