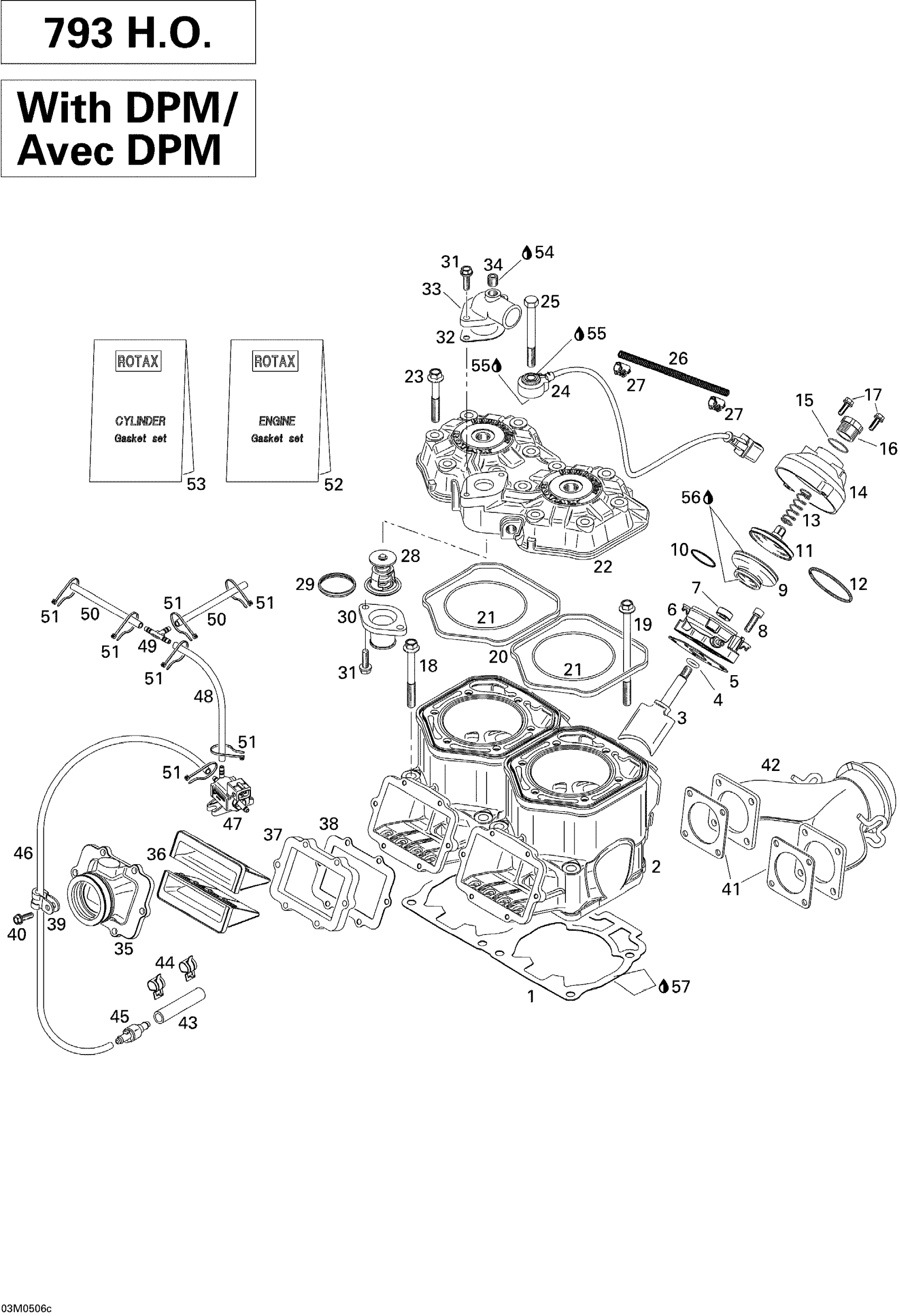

Ski-Doo GSX 800 HO, 2005 01- Cylinder, Exhaust Manifold And Reed Valve 793HO PDM Diagram

#

Description
Price

1

GASKET 0.5 - Call your local BRP dealership

420931838

Unavailable

1

GASKET 0.6 - Call your local BRP dealership

420931837

Unavailable

1

GASKET 0.7 - Call your local BRP dealership

420931964

Unavailable

1

GASKET 0.8 - Call your local BRP dealership

420931839

Unavailable

2

NICASIL CYLINDER - Call your local BRP dealership

420613852

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership

420854465

Unavailable

4

O-Ring

420430110

$4.44

5

Gasket

420931542

$7.37

6

VALVE HOUSING - Call your local BRP dealership

420854454

Unavailable

7

Oil Seal | Included in gasket kit

420950732

$9.27

8

Socket Head Screw M6 X 25

205062544

$1.15

9

Bellows

420260729

$38.99

10

Hose Spring This part replaces 420838253.

420838255

$7.41

11

Exhaust Valve This part replaces 290253257.

420854449

$35.99

12

Hose Spring This part replaces 420239048.

420939281

$7.41

13

SPRING - Call your local BRP dealership

420239941

$6.99

14

Valve Cover This part replaces 420911558.

420911559

$29.49

15

O-Ring

420430220

$8.26

16

Adjuster Screw

420241221

$14.22

17

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.11

18

Hex. Collar Screw

420640524

$13.16

19

Hex. Collar Screw

420640534

$14.28

20

Rubber Ring

420931590

$6.19

21

O-Ring | Included in gasket kit

420931410

$3.39

22

CYLINDER HEAD COVER - Call your local BRP dealership

420923827

Unavailable

23

Hex. Screw M8 X 56.5

420941627

$8.57

24

Noise Sensor

270000484

$82.99

25

HEX. SCREW M8 X 80 - Call your local BRP dealership

420941221

Unavailable

26

TUBE - Call your local BRP dealership

420460010

Unavailable

27

CLIP - Call your local BRP dealership

420960890

Unavailable

28

Thermostat This part replaces 414834100.

420922519

$63.99

29

Sealing Ring

420931272

$15.89

30

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

31

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

32

Gasket

420850338

$11.60

33

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

34

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

35

Intake Socket This part replaces 420667109.

420667276

$74.99

36

Reed Valve Ass'y

420924798

$42.99

37

DISTANCE FLANGE - Call your local BRP dealership

420924820

Unavailable

38

Gasket

420630815

$14.28

39

Open Clamp

414176000

$1.99

40

TAPTITE SCREW M5 X 35 - Call your local BRP dealership

420641840

Unavailable

41

Gasket

420931850

$12.17

42

EXHAUST MANIFOLD - Call your local BRP dealership

420973713

Unavailable

43

High Pressure Air Hose 50 mm

420660561

Unavailable

44

Norma Spring Clamp

293650214

$15.89

45

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

46

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

47

Solenoïd Valve

420664630

$48.49

48

High Pressure Air Hose, 180 mm

420660571

$14.22

49

T-Fitting

293710068

$8.29

50

PRESSURE HOSE 120 MM - Call your local BRP dealership

420660573

Unavailable

51

Tie Wrap 94 mm | 4X4

293750001

$1.03

52

Gasket Engine Kit

420888741

$285.99

53

CYLINDER GASKET - Call your local BRP dealership

420888745

$137.49

54

Loctite 243, 10 ml

293800060

$21.49

55

Loctite 5910, 300 ml

293800081

$57.99

56

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

57

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99
