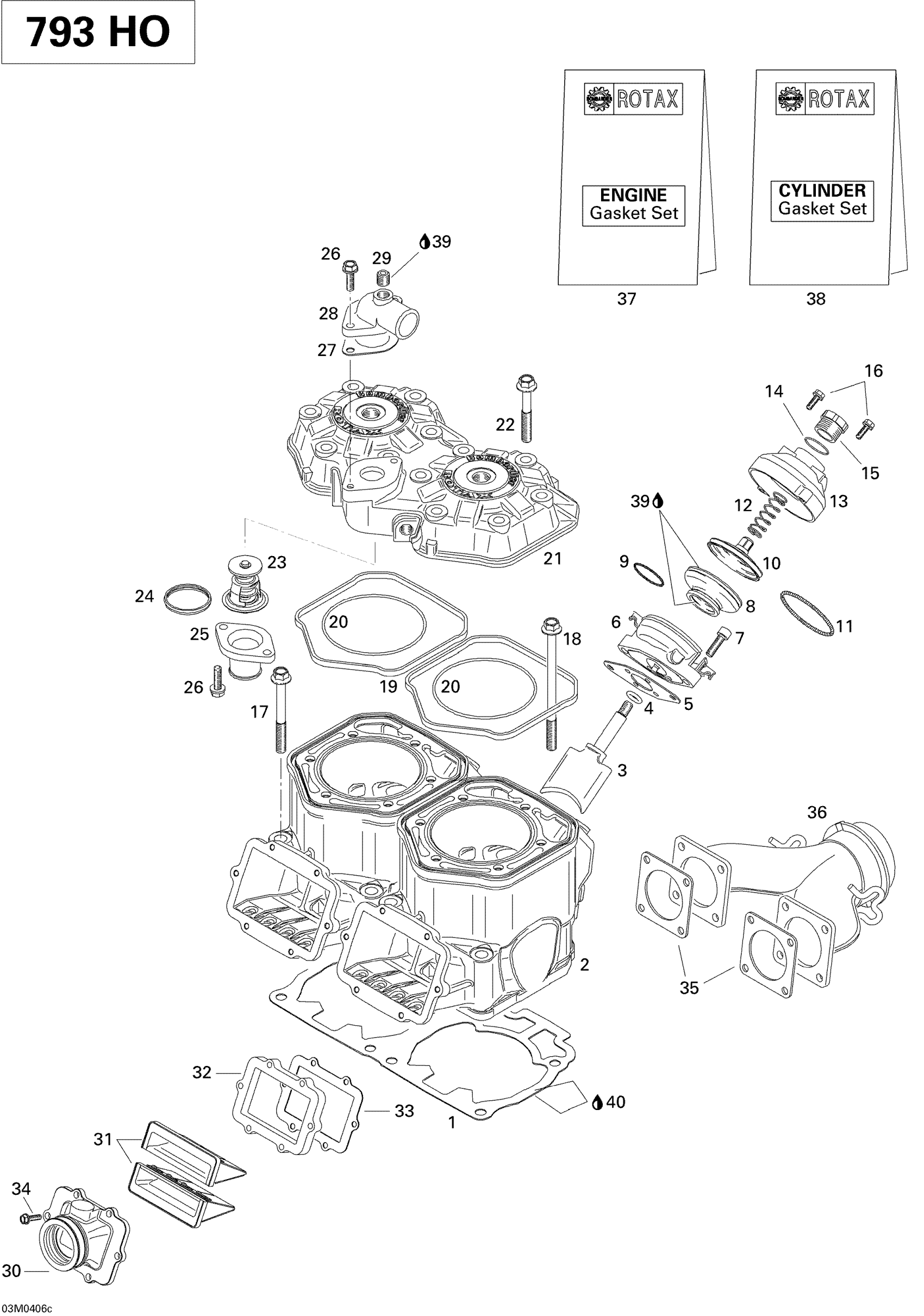

Ski-Doo GSX 800 HO, 2004 Cylinder, Exhaust Manifold, Reed Valve (793 HO) Diagram

#

Description
Price

1

GASKET 0.5 - Call your local BRP dealership

420931838

Unavailable

1

GASKET 0.6 - Call your local BRP dealership

420931837

Unavailable

1

GASKET 0.7 - Call your local BRP dealership

420931964

Unavailable

1

GASKET 0.8 - Call your local BRP dealership

420931839

Unavailable

2

NICASIL CYLINDER - Call your local BRP dealership

420613852

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership

420854465

Unavailable

4

O-Ring

420430110

$4.15

5

Gasket

420931542

$6.42

6

Valve Housing

420854455

$75.99

7

Socket Head Screw M6 X 25

205062544

$1.01

8

Bellows

420260729

$36.54

9

Hose Spring This part replaces 420838253.

420838255

$7.01

10

Exhaust Valve This part replaces 290253257.

420854449

$34.30

11

Hose Spring This part replaces 420239048.

420939281

$6.88

12

SPRING - Call your local BRP dealership

420239941

Unavailable

13

Valve Cover This part replaces 420911558.

420911559

$27.58

14

O-Ring

420430220

$7.79

15

Adjuster Screw

420241221

$12.15

16

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$1.99

17

Hex. Collar Screw

420640524

$11.18

18

Hex. Collar Screw

420640534

$13.18

19

Rubber Ring

420931590

$5.52

20

O-Ring | Included in gasket kit

420931410

$3.06

21

Cylinder Head Cover, Silver

420923825

Unavailable

22

Hex. Screw M8 X 56.5

420941627

$8.09

23

Thermostat This part replaces 414834100.

420922519

$57.43

24

Sealing Ring

420931272

$14.90

25

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

26

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.51

27

Gasket

420850338

$9.97

28

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

29

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

30

Intake Socket This part replaces 420667109.

420667276

$70.87

31

Reed Valve Ass'y

420924798

$38.03

32

DISTANCE FLANGE - Call your local BRP dealership

420924820

Unavailable

33

Gasket

420630815

$13.18

34

TAPTITE SCREW M5 X 35 - Call your local BRP dealership

420641840

Unavailable

35

Gasket

420931850

$11.43

36

EXHAUST MANIFOLD - Call your local BRP dealership

420973713

Unavailable

37

Gasket Engine Kit

420888741

$268.63

38

CYLINDER GASKET - Call your local BRP dealership

420888745

Unavailable

39

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

40

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48
