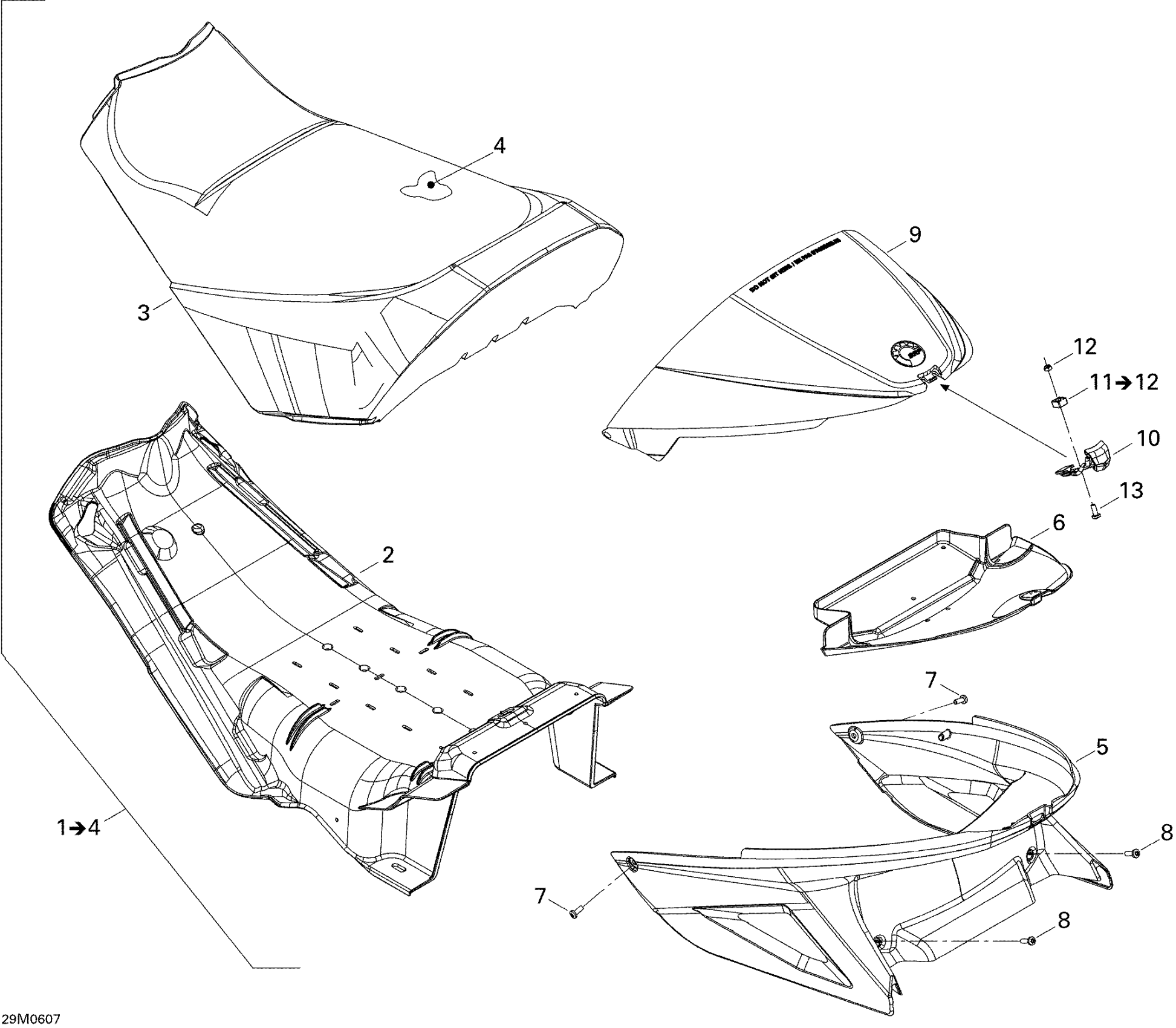

Ski-Doo GSX 600 HO SDI, 2006 Seat Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

SEAT BASE - Call your local BRP dealership

510004575

Unavailable

3

SEAT COVER, BLACK - Call your local BRP dealership

510004591

Unavailable

4

SEAT FOAM - Call your local BRP dealership

510004275

Unavailable

5

TRUNK, BLACK - Call your local BRP dealership

510004628

Unavailable

6

BOX LINER - Call your local BRP dealership

510004600

Unavailable

7

Torx Truss Screw M6 X 16

250000721

$1.69

8

Torx Screw M6 X 20

250000722

$1.68

9

COVER, BLACK - Call your local BRP dealership

510004631

Unavailable

10

Bracket

510003917

Unavailable

11

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

708000046

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Torx Truss Screw M6 X 16

250000721

$1.69
