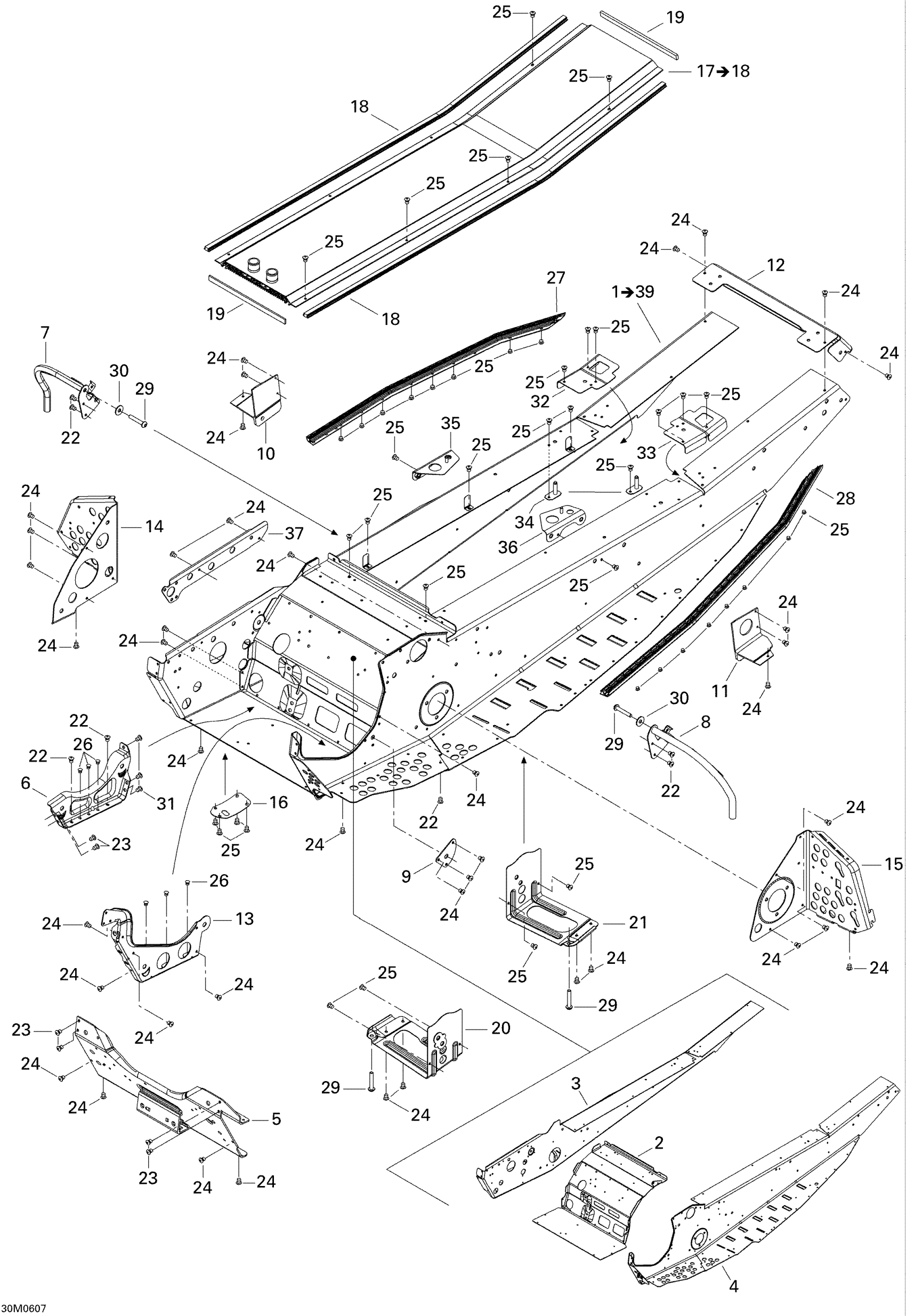

Ski-Doo GSX 600 HO SDI, 2006 09- Frame Diagram

#

Description
Price

1

Frame | Includes 1 to 39

415129145

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

RH Frame

518324485

Unavailable

4

LH FRAME - Call your local BRP dealership

518324486

Unavailable

5

FRONT PAN - Call your local BRP dealership

518323239

Unavailable

6

ENGINE SUPPORT, BLACK - Call your local BRP dealership

518323346

Unavailable

7

RH TOE HOLD SUPPORT - Call your local BRP dealership

518324162

Unavailable

8

LH TOE HOLD SUPPORT - Call your local BRP dealership

518324163

Unavailable

9

OUTER REINFORCEMENT - Call your local BRP dealership

518323507

Unavailable

10

RH SLIDE BRACKET - Call your local BRP dealership

518324488

Unavailable

11

LH SLIDE BRACKET - Call your local BRP dealership

518324489

Unavailable

12

REAR CAP - Call your local BRP dealership

518324409

Unavailable

13

INNER REINFORCEMENT, BLACK - Call your local BRP dealership

518323241

Unavailable

14

RH Footrest Reinforcement

518323805

Unavailable

15

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518324527

Unavailable

16

PLATE - Call your local BRP dealership

518324169

Unavailable

17

Rear Radiator | Includes 17 to 18

518324242

Unavailable

18

RADIATOR PROTECTOR - Call your local BRP dealership | Formula III 600 LT.

415012300

Unavailable

19

GASKET - Call your local BRP dealership

293200096

Unavailable

20

RH Reinforcement, Black

518324634

Unavailable

21

LH REINFORCEMENT, BLACK - Call your local BRP dealership

518324635

Unavailable

22

Avex Rivet

390909200

$0.30

23

Avex Rivet

390909100

$0.30

24

Pop Rivet 3/16"

390402200

$0.35

25

Pop Rivet 3/16"

390402400

$0.35

26

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

27

RH Roller

518324953

Unavailable

28

LH ROLLER - Call your local BRP dealership

518324954

Unavailable

29

SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter

205982086

Unavailable

30

Flat Washer 8 mm

234082410

$1.47

31

Hemlock Rivet, 6.5 mm

293150096

$3.27

32

RH FRAME REINFORCEMENT - Call your local BRP dealership

518324431

Unavailable

33

LH FRAME REINFORCEMENT - Call your local BRP dealership

518324432

Unavailable

34

Tank Bracket

518322791

Unavailable

35

RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324385

Unavailable

36

LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324386

Unavailable

37

RH TUNNEL STIFFENER - Call your local BRP dealership

518323328

Unavailable
