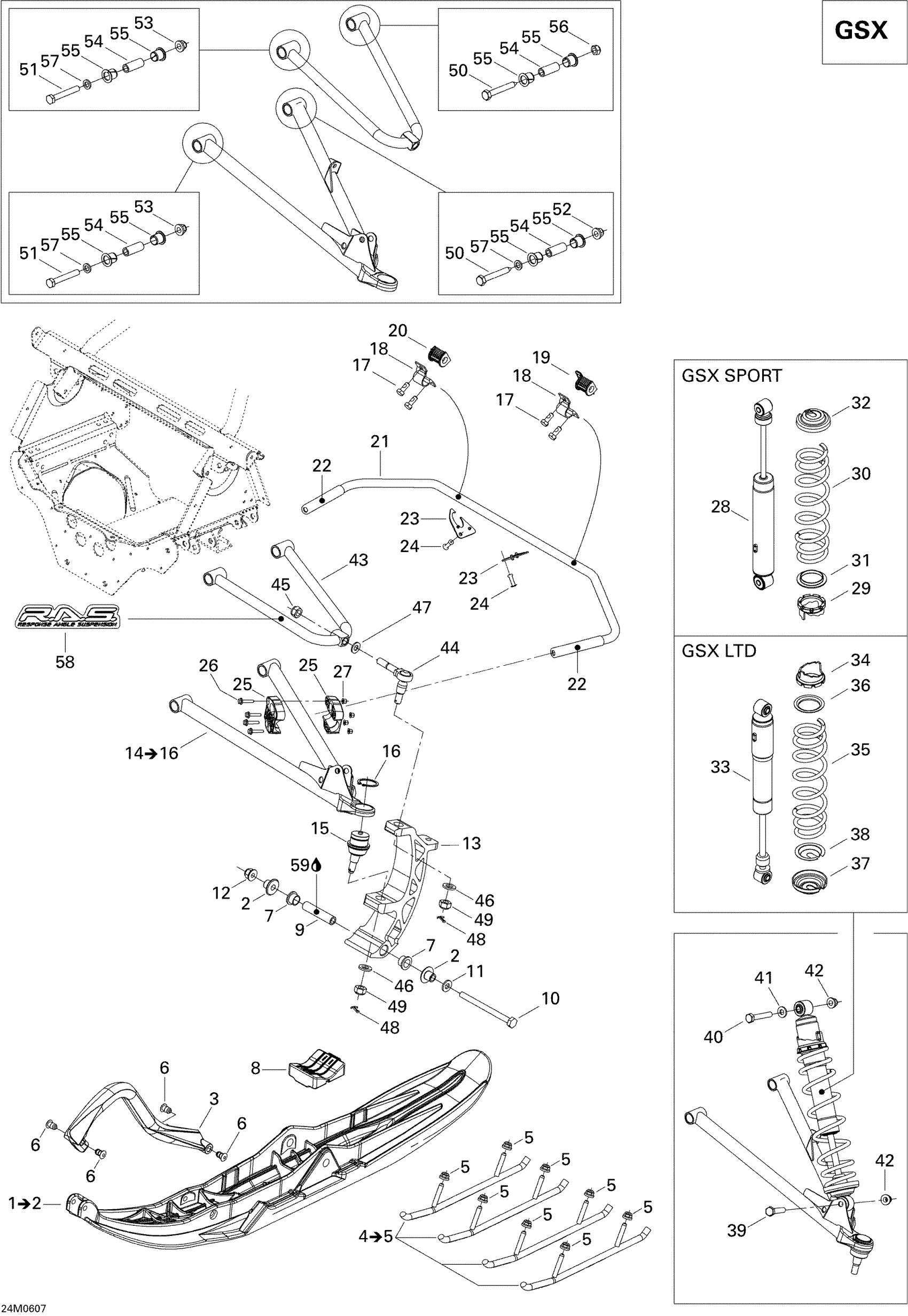

Ski-Doo GSX 600 HO SDI, 2006 Front Suspension And Ski Diagram

#

Description
Price

1

Deep Black, RH Pilot 5.7 Ski

505072855

$155.94

1

RH Pilot SKI 5.7, Blue | Includes 1 to 2

505072156

Unavailable

1

Deep Black, LH Pilot 5.7 Ski

505072854

$170.12

1

LH Pilot Ski Ass'y, Labrador Blue | Includes 1 to 2, LTD

505071794

Unavailable

2

Ski Bushing

505071781

$14.90

3

Black, Handle

505070963

$34.30

3

Full Moon Handle

505071556

$33.55

4

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$130.57

5

Hex. Flange Elastic Nut M8

233281414

$1.31

6

Retainer 17mm long

505071812

$4.30

7

Leg Bushing

505072690

$5.75

8

Ski Stopper

505071779

$15.64

9

Spacer

506133300

$19.37

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

11

Washer

732900049

$0.55

12

Flange Nut M10

732610084

$6.30

13

SKI LEG - Call your local BRP dealership

505071232

Unavailable

14

RH LOWER ARM ASS'Y - Call your local BRP dealership

860512500

Unavailable

14

LH LOWER ARM ASS'Y - Call your local BRP dealership

860512400

Unavailable

15

Ball Joint

505073636

$48.48

16

Circlip

293370035

$2.48

17

Hex. Screw With Nylon

250000118

Unavailable

18

CLAMP - Call your local BRP dealership

506095800

Unavailable

19

LH BUSHING - Call your local BRP dealership

505070664

Unavailable

20

RH BUSHING - Call your local BRP dealership

505070912

Unavailable

21

STABILISATOR - Call your local BRP dealership

505070948

Unavailable

22

STABILISATOR BOOT - Call your local BRP dealership

505071039

Unavailable

23

PLUG - Call your local BRP dealership

505071253

Unavailable

24

Pop Rivet 3/16"

293150103

$0.52

25

RH SLIDER HALF - Call your local BRP dealership

505071268

Unavailable

25

LH SLIDER HALF - Call your local BRP dealership

505071269

Unavailable

26

Hex. Flange Screw M5 X 25

207652544

$0.48

27

Hex. Flange Elastic Nut M5

233251414

$1.91

28

FRONT SHOCK - Call your local BRP dealership

505071662

Unavailable

29

Adjustment Cam

505073625

$11.82

30

FULL MOON SPRING - Call your local BRP dealership

505071842

Unavailable

31

Spring Guide

503187500

$8.46

32

Spring Stopper

706200881

$11.82

33

FRONT SHOCK - Call your local BRP dealership

505071490

Unavailable

34

Adjustment Cam

505073625

$11.82

35

FULL MOON SPRING - Call your local BRP dealership

505071842

Unavailable

36

Spring Guide

503191872

$2.12

37

Spring Stopper

706200881

$11.82

38

Cap

706200785

$4.28

39

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

40

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

41

Washer

503189564

$0.70

42

Hex. Flange Elastic Nut M10

233201414

$1.45

43

UPPER ARM - Call your local BRP dealership

505071756

Unavailable

44

Upper Ball Joint

505072257

$16.39

45

Hex. Flange Elastic Nut M12

250000047

$1.79

46

Flat Washer 12 mm

234021410

$0.66

47

Washer

503189276

$3.10

48

Cotter Pin

211400017

$0.28

49

Hex. Flange Elastic Nut M12

250000047

$1.79

50

Hex. Screw M10 X 75

250001063

$11.18

51

Hex. Screw M10 X 75

250001063

$11.18

52

Hex. Flange Elastic Nut M10

250100165

$0.81

53

Hex. Flange Elastic Nut M10

250100165

$0.81

54

Bushing

505070567

$19.37

55

Arm Bushing

505070566

$3.04

56

Elastic Flange Nut M10

232501416

$1.43

57

Washer

503189564

$0.70

58

R.a.s. Suspension Decal

516002747

Unavailable

59

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
