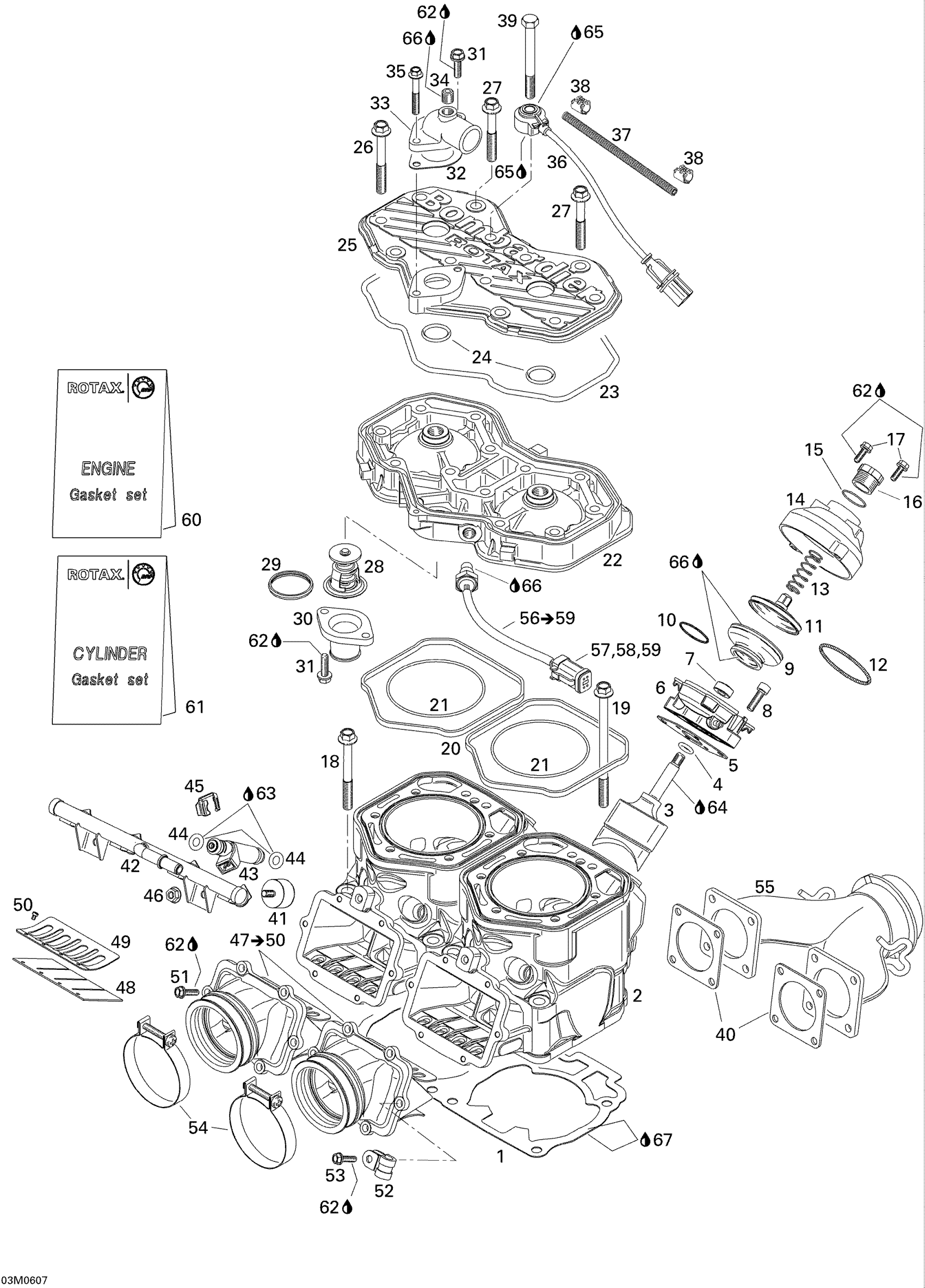

Ski-Doo GSX 600 HO SDI, 2006 Cylinder and Cylinder Head Diagram

#

Description
Price

1

Gasket 0.5 mm

420431160

$16.39

1

Gasket 0.6 mm

420431161

$22.36

1

Gasket 0.7 mm

420431162

$22.36

1

Double Gasket 0.8 mm

420431163

$22.36

2

CYLINDER H.O. SDI - Call your local BRP dealership

420613944

Unavailable

2

REBUILD-CYLINDER NICASIL 593SDI - Call your local BRP dealership

421000624

Unavailable

3

Exhaust Valve

420854650

$64.90

4

O-Ring

420430110

$4.15

5

Gasket

420931542

$6.42

6

VALVE HOUSING - Call your local BRP dealership

420854454

Unavailable

7

Oil Seal | Included in gasket kit

420950732

$8.09

8

Socket Head Screw M6 X 25

205062544

$1.01

9

Bellows

420260729

$36.54

10

Hose Spring This part replaces 420838253.

420838255

$7.01

11

Exhaust Valve This part replaces 290253257.

420854449

$34.30

12

Hose Spring This part replaces 420239048.

420939281

$6.88

13

SPRING - Call your local BRP dealership

420239942

Unavailable

14

Valve Cover This part replaces 420911558.

420911559

$27.58

15

O-Ring

420430220

$7.79

16

Adjuster Screw

420241221

$12.15

17

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$1.99

18

Hex. Collar Screw

420640524

$11.18

19

Hex. Collar Screw

420640534

$13.18

20

Rubber Ring

420931590

$5.52

21

O-Ring This part replaces 420850540.

293300026

$3.06

22

Cylinder Head

420613702

Unavailable

23

O-Ring This part replaces 290950320.

420950320

$13.18

24

O-Ring

420430782

$5.06

25

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

Unavailable

26

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.09

27

Hex. Screw M8 X 56.5

420941627

$8.09

28

Thermostat This part replaces 414834100.

420922519

$57.43

29

Sealing Ring

420931272

$14.90

30

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

31

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.51

32

Gasket

420850338

$9.97

33

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

34

Hose Nipple

420822340

Unavailable

35

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

36

Noise Sensor

270000484

$75.34

37

TUBE - Call your local BRP dealership

420460010

Unavailable

38

CLIP - Call your local BRP dealership

420960890

Unavailable

39

HEX. SCREW M8 X 80 - Call your local BRP dealership

420941221

Unavailable

40

Gasket

420850552

$7.69

41

STOPPER - Call your local BRP dealership

420960065

Unavailable

42

RAIL FUEL - Call your local BRP dealership

420874490

Unavailable

43

Fuel Injectors

420874485

$225.34

44

O-Ring

420631220

$13.18

45

CLIP - Call your local BRP dealership

420851800

Unavailable

46

NUT - Call your local BRP dealership

420442172

Unavailable

47

SOCKET CARBURETOR - Call your local BRP dealership | Inclusdes 47 to 50

420867260

Unavailable

48

Reed Pedal

420924680

$36.54

49

Reed Pedal Stop

420924695

$13.18

50

Phillips Screw M3 X 5

420941215

$1.63

51

Taptite Screw M5 X 16

420941928

Unavailable

52

Cable Clamp

420851115

Unavailable

53

Tapping Screw M5 X 22

420841550

$1.63

54

Clamp

420851065

$13.18

55

EXHAUST MANIFOLD - Call your local BRP dealership

420673072

Unavailable

56

Temperature Sensor This part replaces 515176043.

515177835

$91.76

57

Male Connector, 4 Circuits | CE

278000739

$17.13

58

Female Terminal

278000632

$1.94

59

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

60

Gasket Set, Engine

420889931

$238.03

61

Gasket Set, Cylinder

420889936

$165.64

62

Loctite 243, 10 ml

293800060

$21.49

63

Dow Corning 111, 150 g

413707000

$59.99

64

Not Available As Spare Part - Friction Washer

Unavailable

65

Loctite 5910, 300 ml

293800081

$57.99

66

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

67

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48
