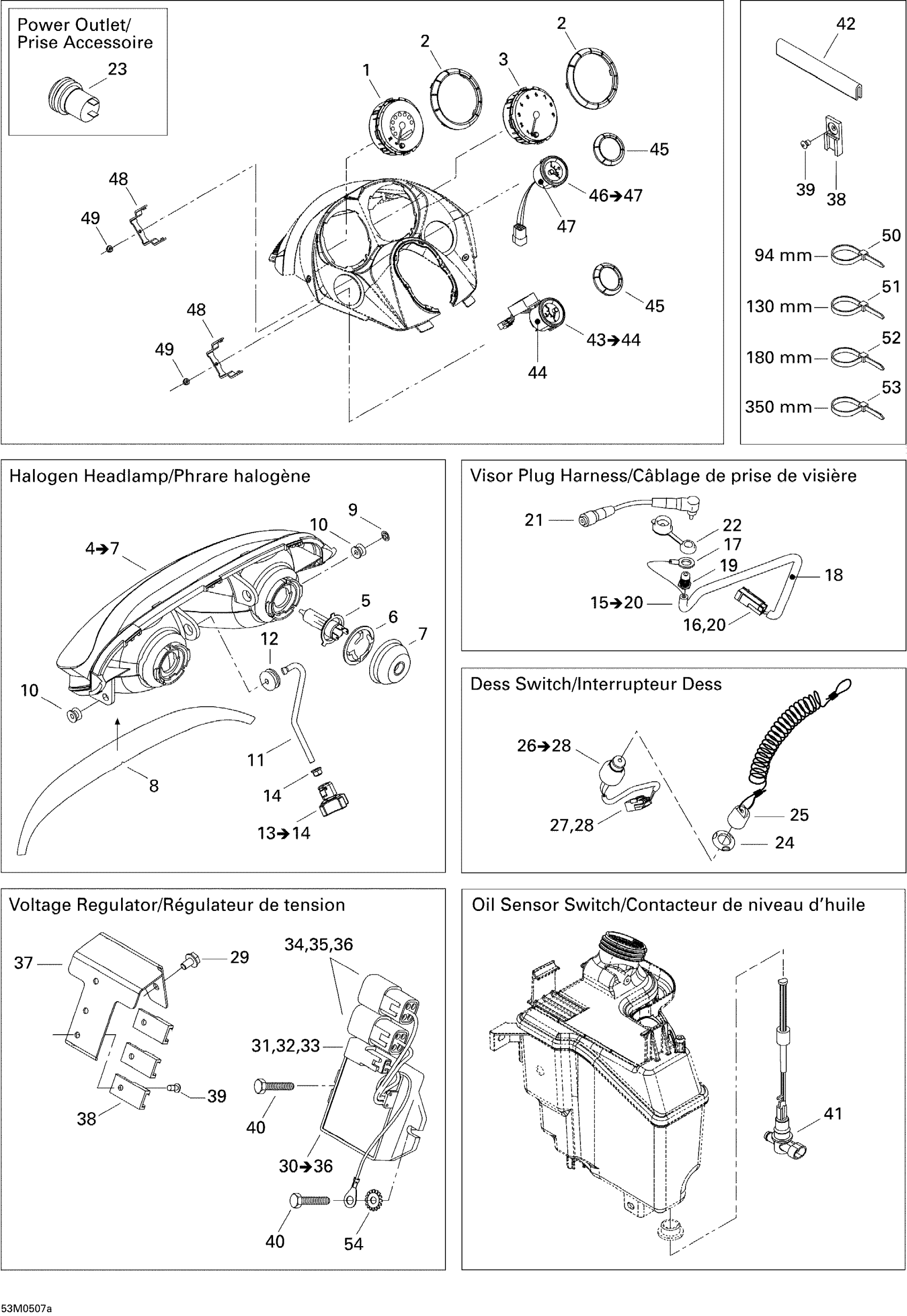

Ski-Doo GSX 600 HO SDI, 2005 10- Electrical Accessories 1 Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership

515176244

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$13.99

3

Tachometer

515176275

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

COVER - Call your local BRP dealership

515175911

Unavailable

8

HEADLAMP DECAL - Call your local BRP dealership

516001328

Unavailable

9

Push Nut

732610072

$2.19

10

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

11

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

12

Grommet - Call your local BRP dealership

415100800

Unavailable

13

HANDLE - Call your local BRP dealership

515175975

Unavailable

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

Visor Harness

515177837

$33.99

16

Male Terminal

515175232

$1.58

17

OPEN BARREL - Call your local BRP dealership

515175172

Unavailable

18

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

19

Visor Plug

415096100

Unavailable

20

Male Terminal Housing, 2 Circuits

515175654

$9.12

21

Extension

515175851

$11.12

22

Cap

572103300

$10.49

23

Outlet Power Kit, 12 Volts

861507200

$36.99

24

Safety Nut (DESS Switch)

278002963

$3.28

25

DESS

515178284

$84.99

26

DESS Switch

515177249

$114.99

27

Male Terminal

515175232

$1.58

28

Male Housing, 3 Circuits

515175494

$16.18

29

Hex. Forming Screw M6 X 10

210261050

$1.69

30

Voltage Regulator | Includes 32 to 38

515176243

$359.99

31

Male Housing, 2 Circuits

409206900

$9.59

32

Male Terminal

278000631

$4.39

33

Male Lock, 2 Circuits

409207500

$3.19

34

Female Housing, 4 Circuits

278000635

$16.49

35

Male Terminal

515175568

$9.12

36

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

37

HOUSING SUPPORT - Call your local BRP dealership

515176191

Unavailable

38

Clip

270000141

$11.49

39

Avdel Rivet 3/16"

293150037

$0.56

40

Hex. Flange Screw M6 X 16

210261650

$1.67

41

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

42

TRIM - Call your local BRP dealership

509000263

Unavailable

43

Temperature Gauge

515176214

Unavailable

44

Not Available As Spare Part - Friction Washer

Unavailable

45

RING GAUGE - Call your local BRP dealership

515176216

Unavailable

46

FUEL GAUGE - Call your local BRP dealership

515176215

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

HOLDER CASE - Call your local BRP dealership

515176235

Unavailable

49

LOCK NUT - Call your local BRP dealership

515176236

Unavailable

50

Tie Wrap 94 mm | 4X4

293750001

$1.03

51

Tie Wrap 142 mm

293750002

$1.25

52

Tie-Rap 180 mm

414115200

$0.11

53

Tie Wrap 368 mm

293750008

$1.04

54

Lock Washer Serrated M6

250200041

$1.15
