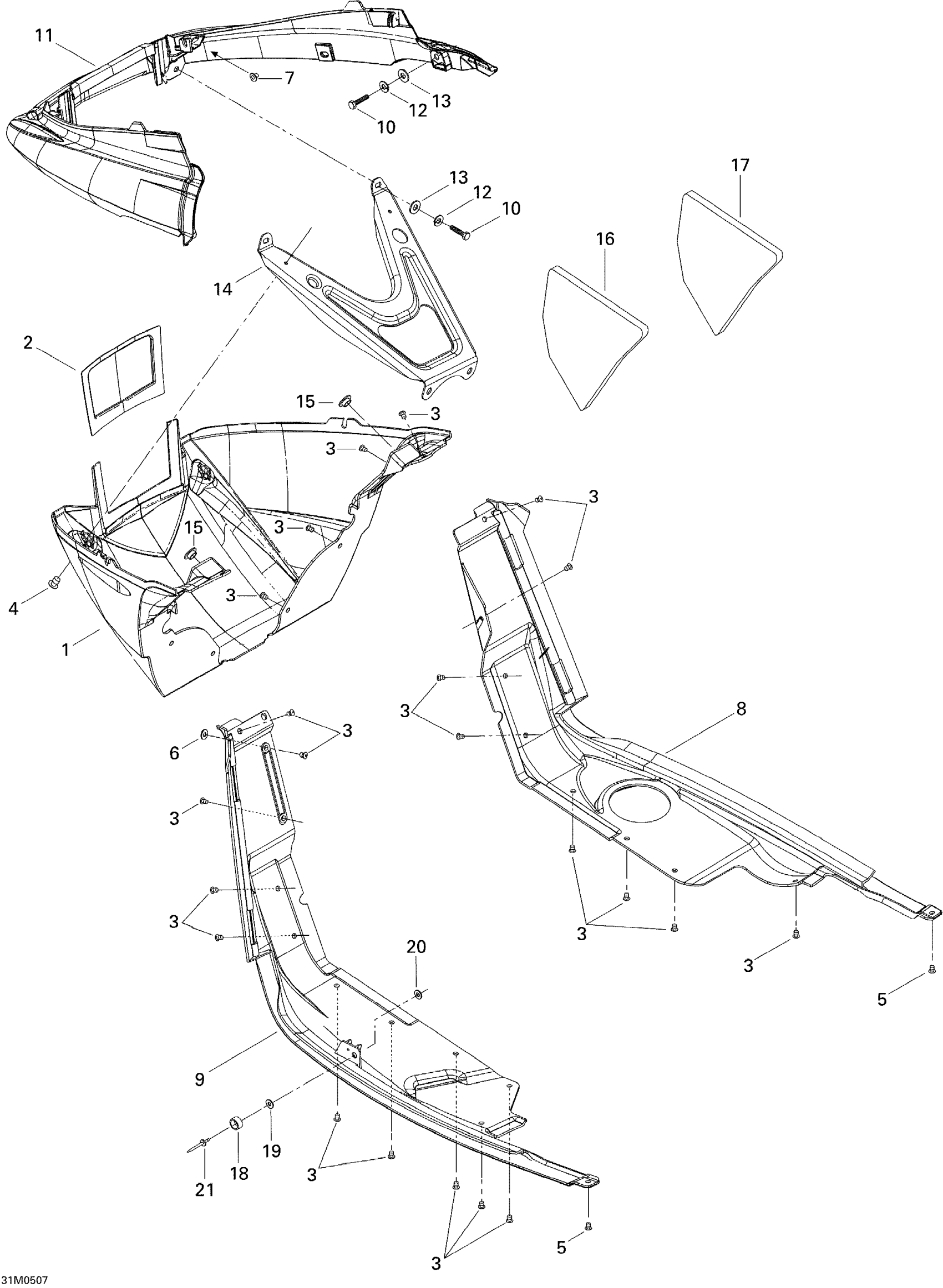

Ski-Doo GSX 600 HO SDI, 2005 09- Bottom Pan Diagram

#

Description
Price

1

FRONT BOTTOM PAN, BLACK - Call your local BRP dealership

502006681

Unavailable

2

BOTTOM PAN GRILL - Call your local BRP dealership

502006687

Unavailable

3

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4

Pop Rivet 3/16”

293150108

$1.19

5

Pop Rivet 3/16"

293150103

$0.55

6

Washer

517124300

$0.19

7

Nut Welded, M6

293100003

$9.12

8

RH BOTTOM PAN - Call your local BRP dealership

502006702

Unavailable

9

LH BOTTOM PAN - Call your local BRP dealership

502006703

Unavailable

10

Hex. Screw M6 X 14

207161444

$0.58

11

Bumper, Black

502006679

$158.99

11

Bumper, Black

502006679

$158.99

11

Bumper, Black

502006679

$158.99

12

Lock Washer M6, Black

234161471

$0.53

13

Flat Washer

224061121

$0.53

14

Support

502006772

$38.99

15

Black, Nylon Cap

414916600

$4.69

16

LH FOAM - Call your local BRP dealership

502006722

Unavailable

17

RH FOAM - Call your local BRP dealership

502006721

Unavailable

18

Rubber Stopper

415018100

$2.49

19

Rubber Washer 5 mm

250200024

$2.19

20

WASHER - Call your local BRP dealership

293150007

Unavailable

21

Pop Rivet 1/8" | SM5

390401600

$5.69
