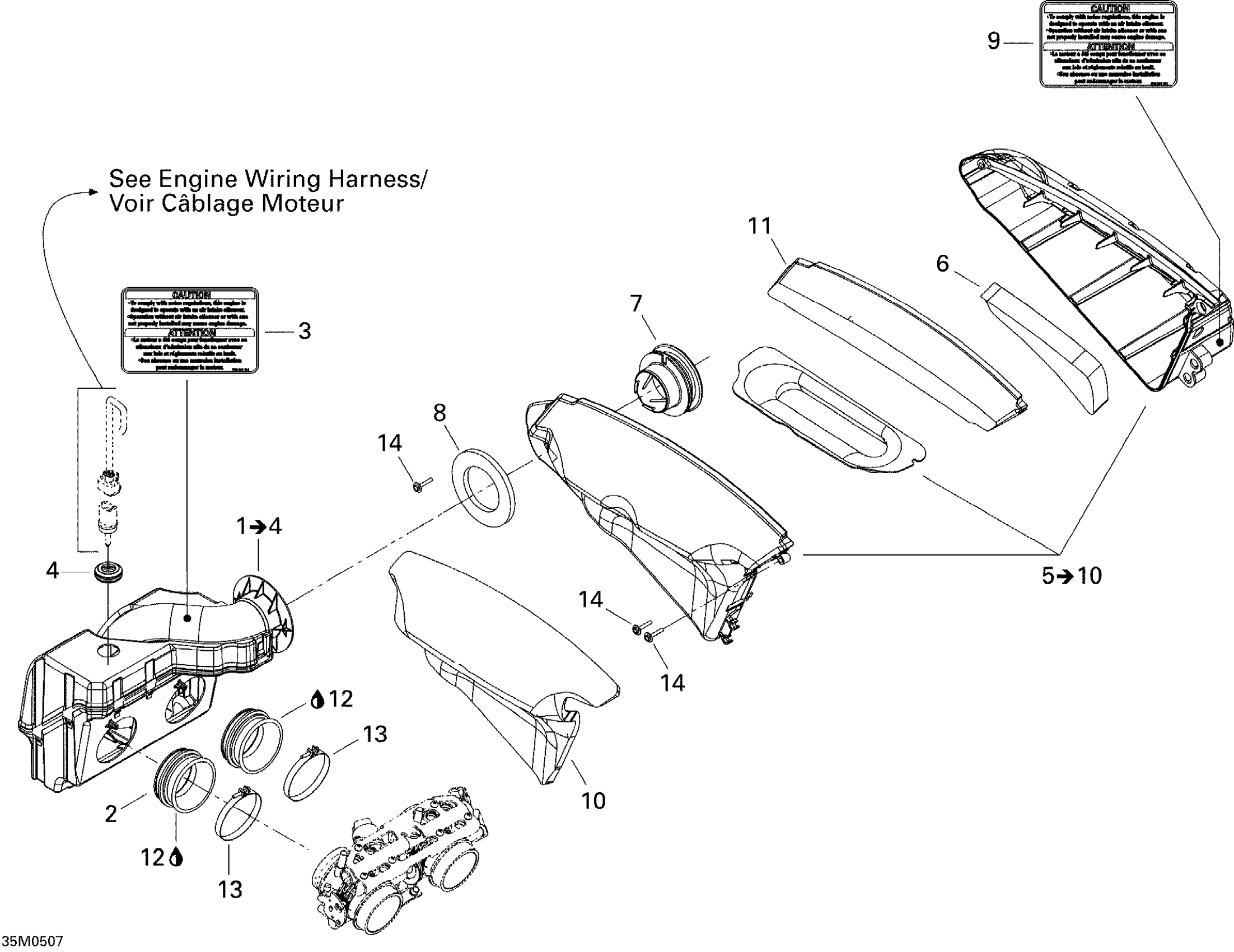

Ski-Doo GSX 600 HO SDI, 2005 02- Air Intake System Diagram
#
Description
Price
1
Primary Chamber Ass'y | Includes 1 to 4
508000459
Unavailable
2
Air Intake Adaptor
508000374
Unavailable
3
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.
516002715
Unavailable
4
GROMMET - Call your local BRP dealership
570065500
Unavailable
5
Secondary Chamber Assy | Includes 5 to 10
508000392
Unavailable
6
Inner Foam
508000145
Unavailable
7
GUIDE - Call your local BRP dealership
508000240
Unavailable
8
OUTER FOAM - Call your local BRP dealership
508000199
Unavailable
9
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.
516002715
Unavailable
10
OUTER FOAM - Call your local BRP dealership
508000310
Unavailable
12
OIL 2T 12X1BLEND - Call your local BRP dealership This part replaces 293600071.
293600100
Unavailable
12
SEMI-SYNTHETIC OIL, 3 X 4 LITERS - Call your local BRP dealership
293600072
Unavailable
12
SEMI-SYNTHETIC OIL, 205 LITERS - Call your local BRP dealership
293600073
Unavailable
