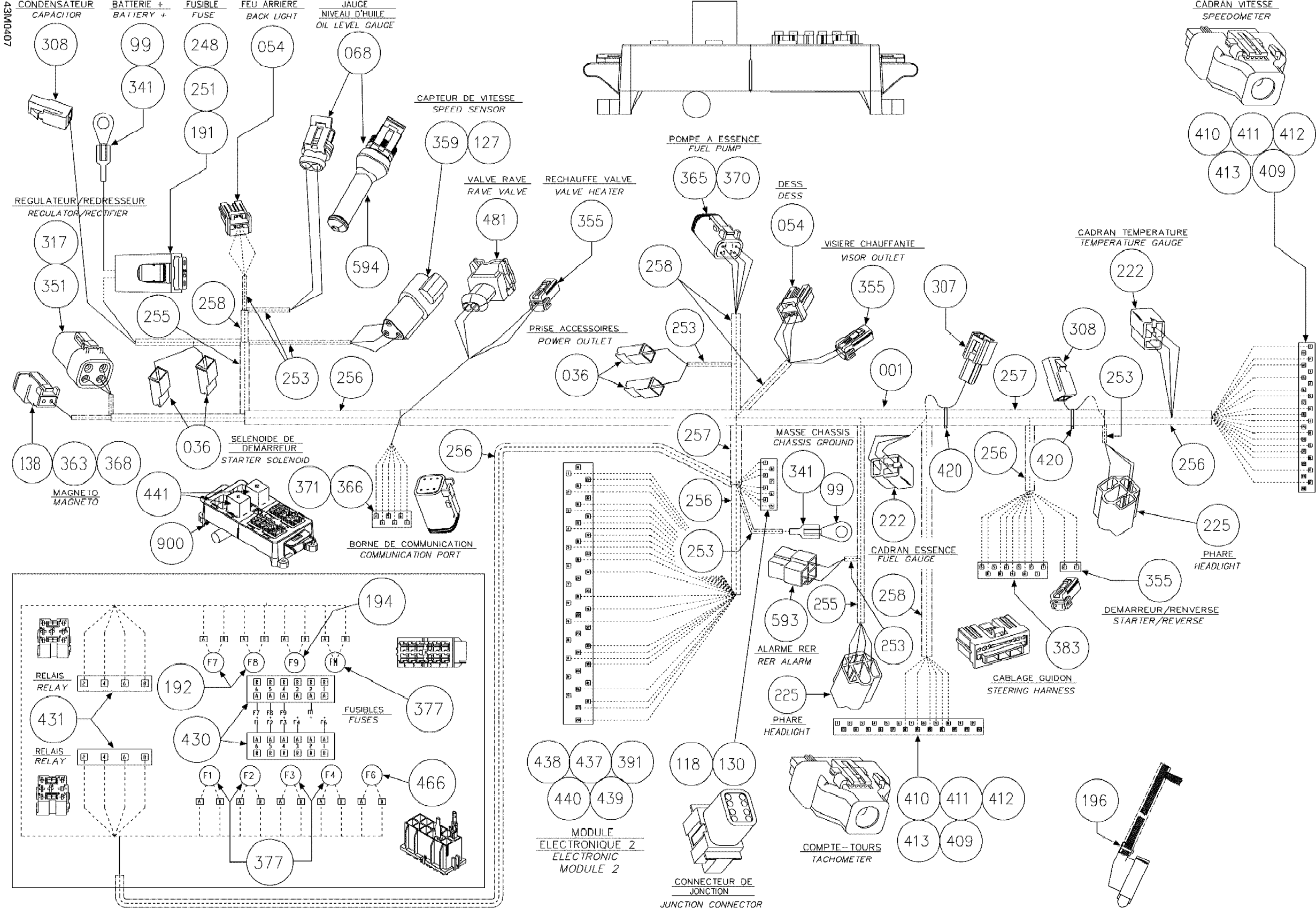

Ski-Doo GSX 600 HO SDI, 2004 Frame harness Diagram

Frame Harness | Includes 001 to 900

515175934

Unavailable

Female Terminal

409010100

$5.30

Female Terminal Housing, 1 Circuit

409010400

$7.25

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

Female Terminal

515175231

$4.00

Female Terminal

515175282

$6.24

Female Housing, 3 Circuits

515175495

$14.90

Female Terminal Housing, 13 Circuits

515175350

$12.49

Female Terminal

278001014

$3.12

Female Housing, 2 Circuits

409209500

$13.07

Wire Seal

278001013

$3.12

Open Barrel

278000992

$2.06

Male Terminal

278000631

$4.00

Female Terminal

278000632

$1.94

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001742

Unavailable

Male Lock, 3 Circuits

409207600

$2.93

LOCK MALE, 8 CIRCUITS - Call your local BRP dealership

515175276

Unavailable

Sealing Cap

293000052

$2.93

Female Terminal

561503100

Unavailable

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

Fuse, 30 Amperes

410917200

$3.12

Fuse, 20 Amperes

409003900

$3.12

Tie Wrap 142 mm

293750002

$1.01

Female Terminal

409004200

$4.28

Female Housing

409204300

Unavailable

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

Fuse Holder

409004000

$6.79

CLIP - Call your local BRP dealership

409014200

Unavailable

Tubing 6 Mm 3000Mm Long

219704425

$12.75

Was 409901800 Tubing (13 mm)

219704400

$10.79

Tubing 16 Mm 1000Mm Long

219704408

$7.15

Was 409901600 Tubing 19mm

219704398

$87.28

Tubing 10 MM 1000MM Long

219704407

$2.52

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

Female Terminal Housing, 4 Circuits

278001473

$24.60

Female Terminal

515175567

$5.85

Female Lock, 4 Circuits

278001474

$2.93

Female Housing, 2 Circuits

515175658

$14.90

Male Housing

515175666

$12.66

Female Terminal Housing, 2 Circuits

515175670

$7.61

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

Male Housing, 6 Circuits

515175673

$12.66

Female Lock, 2 Circuits

515175675

$4.28

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

Male Wedge, 6 Circuits

515175678

$4.96

Fuse, 5 Amperes | CE

278000344

$3.12

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

Plug

515175812

$1.96

Female Housing, 24 Circuits

515175801

$8.73

Retainer Block

515175802

$10.34

Wire Seal

515175803

$2.76

BLOCK - Call your local BRP dealership

515175804

Unavailable

Female Terminal

515175806

$0.93

Tie-Rap 180 mm

414115200

$0.10

FUSE HOLDER - Call your local BRP dealership

515175857

Unavailable

RELAY HOLDER - Call your local BRP dealership

515175856

Unavailable

FEMALE TERMINAL - Call your local BRP dealership

515175855

Unavailable

FEMALE TERMINAL - Call your local BRP dealership

515175854

Unavailable

SEAL - Call your local BRP dealership

515175886

Unavailable

Latch

515175883

$7.25

LOCK - Call your local BRP dealership

515175884

Unavailable

COVER - Call your local BRP dealership

515175885

Unavailable

Relais *Relay This part replaces 410113604.

515177672

$43.25

Fuse, 0.5 Ampere

415128525

Unavailable

Female Terminal Housing, 2 Circuits

415128500

$7.24

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515176069

Unavailable

Rubber Boot

515176070

Unavailable

Fuse Box Base

515175739

Unavailable
